Horn: Service and Repair

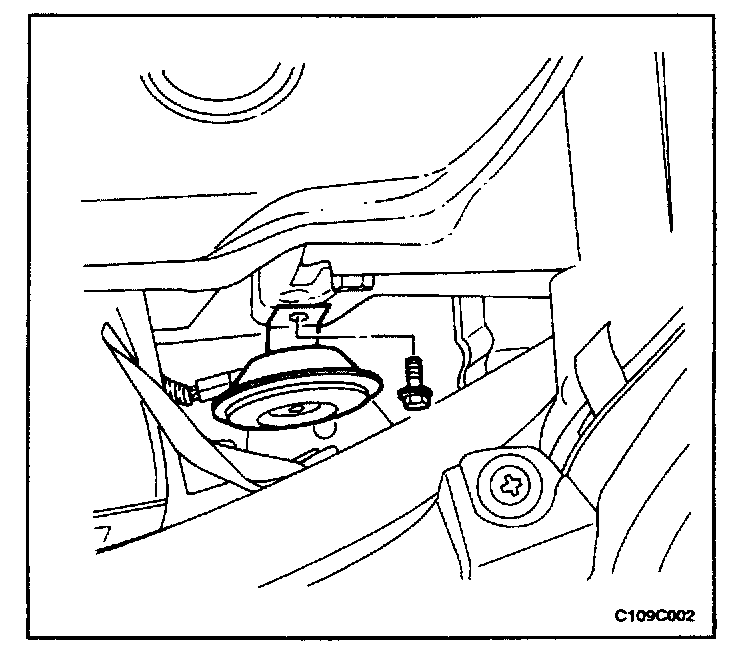

(Left Horn Shown, Right Horn Similar)




Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector.
3. Remove the bolt and the horn.




Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the horn with the bolt.

Tighten
Tighten the horn bolt to 22 Nm (16 lb).

2. Connect the electrical connector.
3. Connect the negative battery cable.
