Key Cylinder Lamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the knee bolster trim panel.

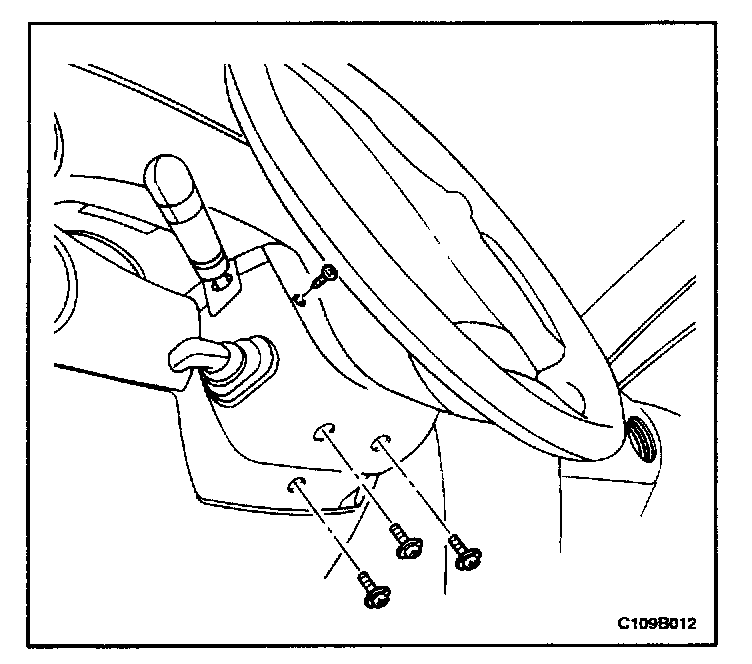

3. Remove the screws and the steering column trim covers.

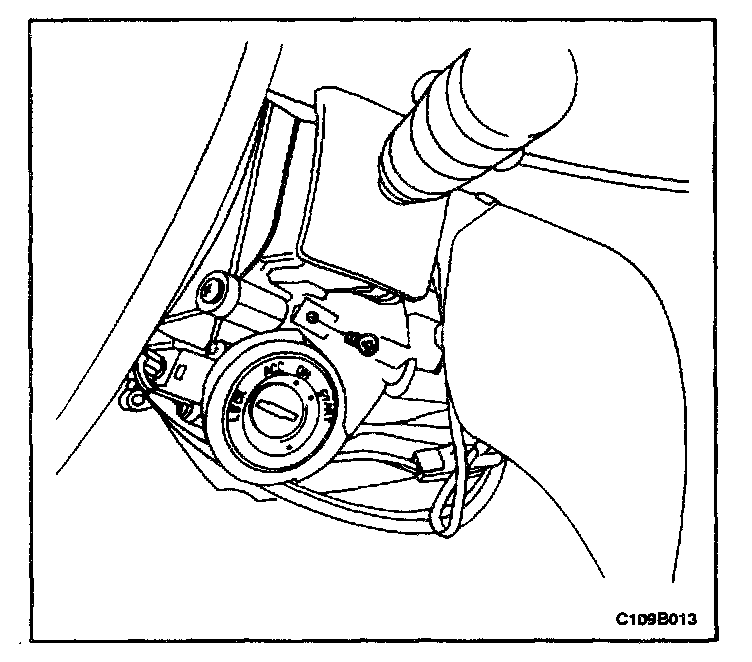

4. Remove the screw and the ignition switch keyhole lamp.
5. Remove the bulb.

Installation Procedure




1. Install the replacement bulb into the ignition switch keyhole lamp.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

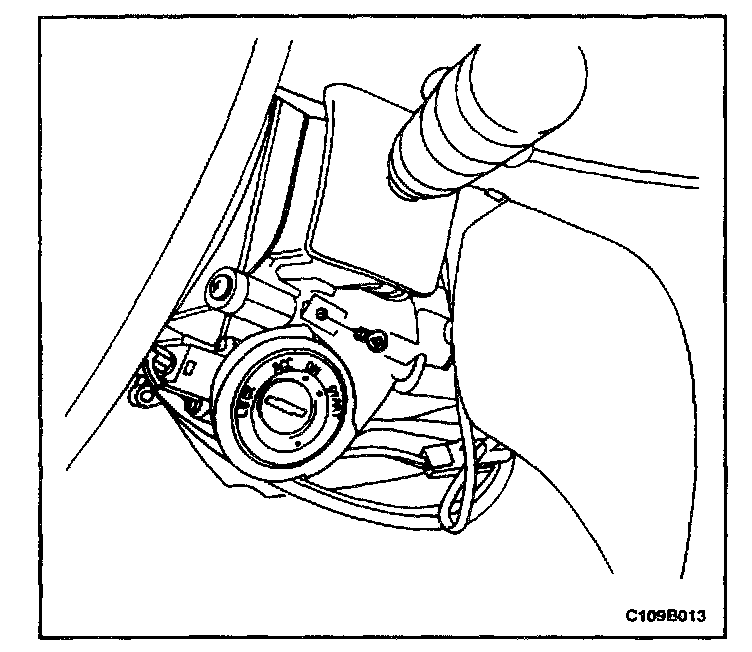

2. Install the ignition switch keyhole lamp with the screw.

Tighten
Tighten the ignition switch keyhole lamp screw to 1.5 Nm (13 lb.in).






NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

3. Install the steering column trim covers with the screws.

Tighten
Tighten the steering column trim cover screws to 2.5 Nm (22 lb.in).

4. Install the knee bolster trim panel.
5. Connect the negative battery cable.
