Home >> Daewoo >> 1999 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

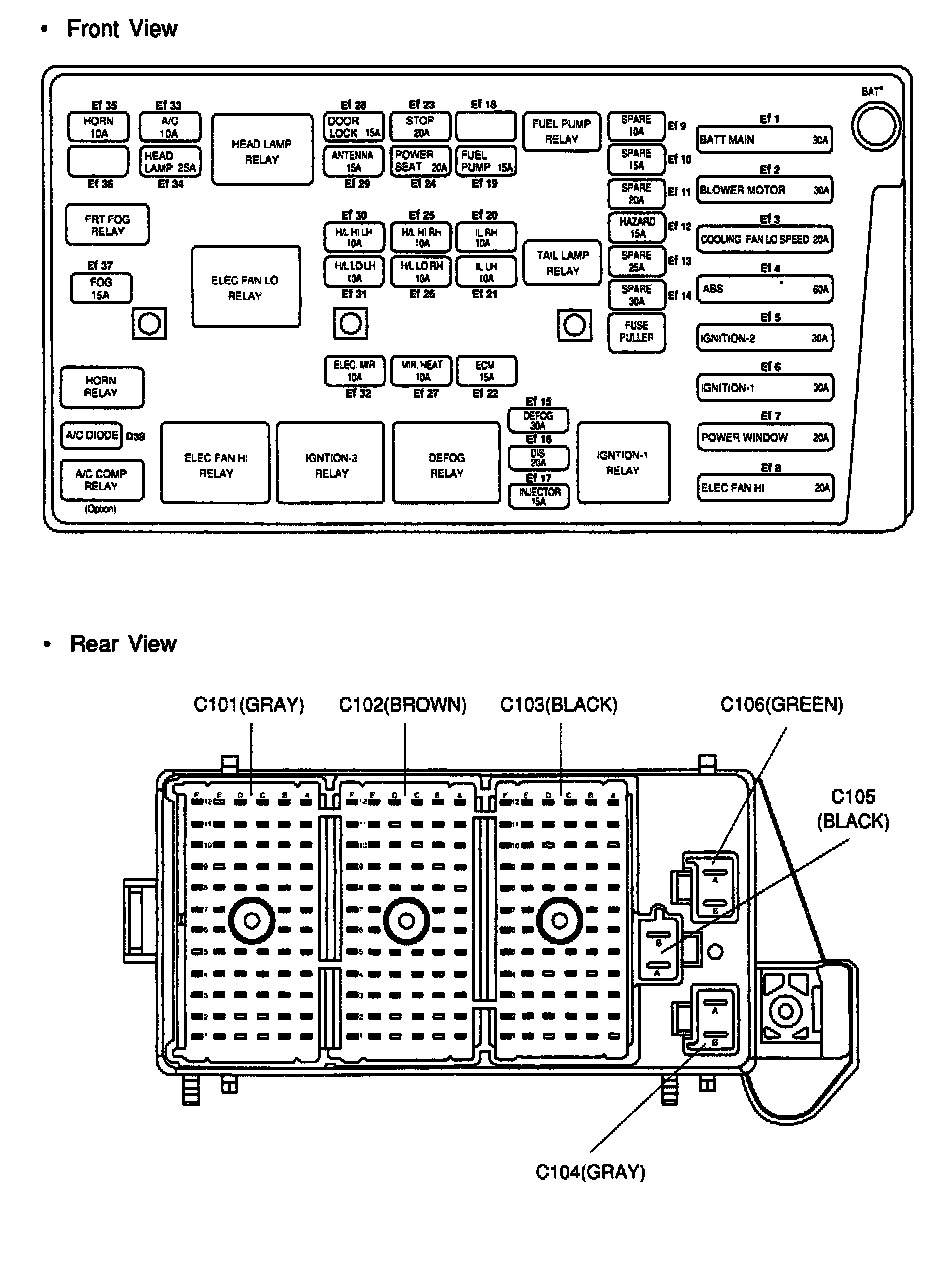

Engine Compartment Fuse/Relay Box:

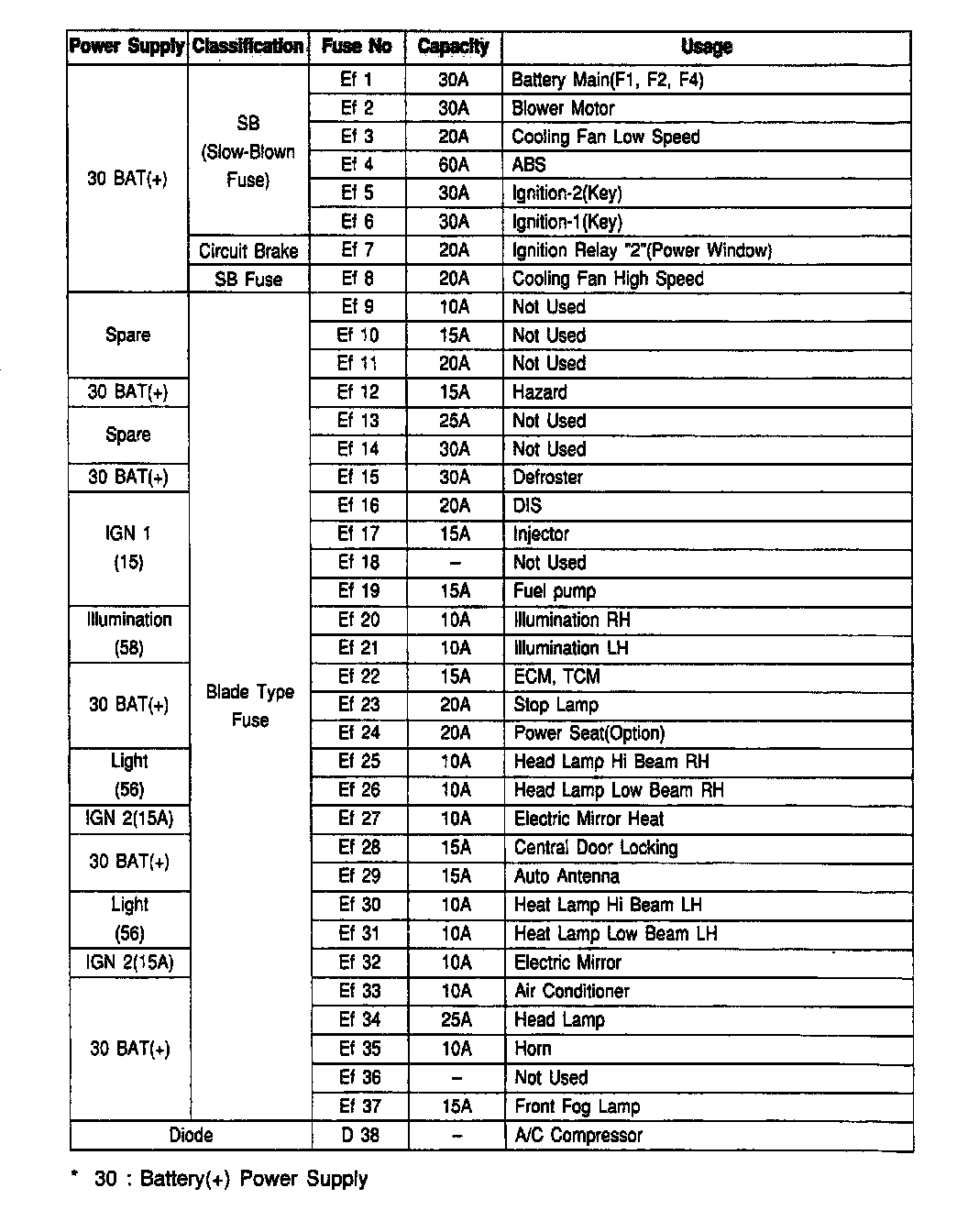

Engine Compartment Fuse/Relay Box Fuse To Component Cross Reference:

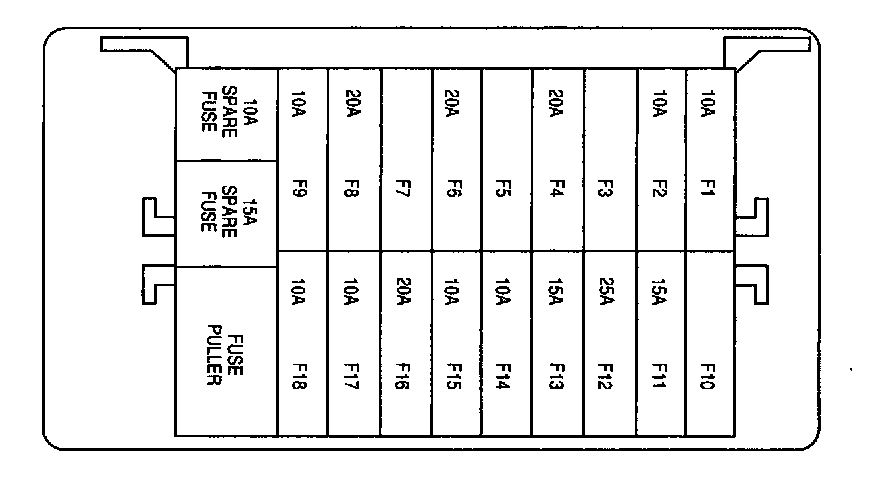

Passenger Compartment Fuse Box:



Passenger Compartment Fuse Box Fuse To Component Cross Reference:
