Fuse: Service and Repair

Removal Procedure

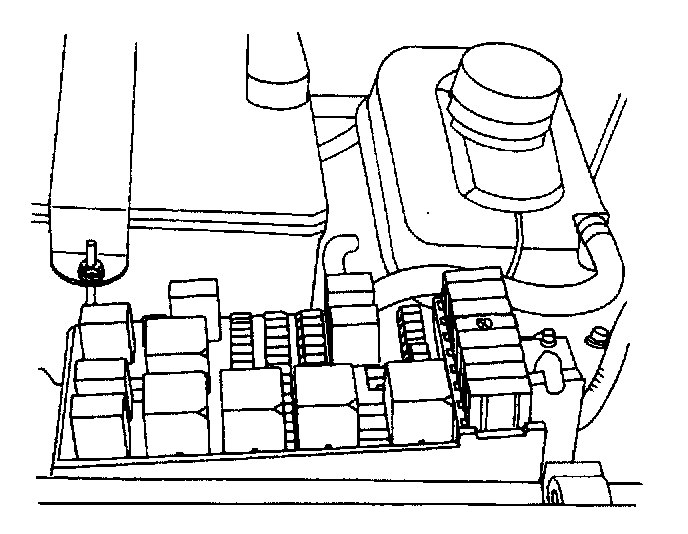

The ABS system fuse, EF4, is located in the engine fuse block. Counting from the surge tank toward the fender, it is the fourth system fuse in the row at the strut tower end of the fuse block.
1. Disconnect the negative battery cable.
2. Remove the system fuse from its socket.

Installation Procedure





1. Install a new 60-amp system fuse into the socket.
2. Connect the negative battery cable.
