Connector Locations

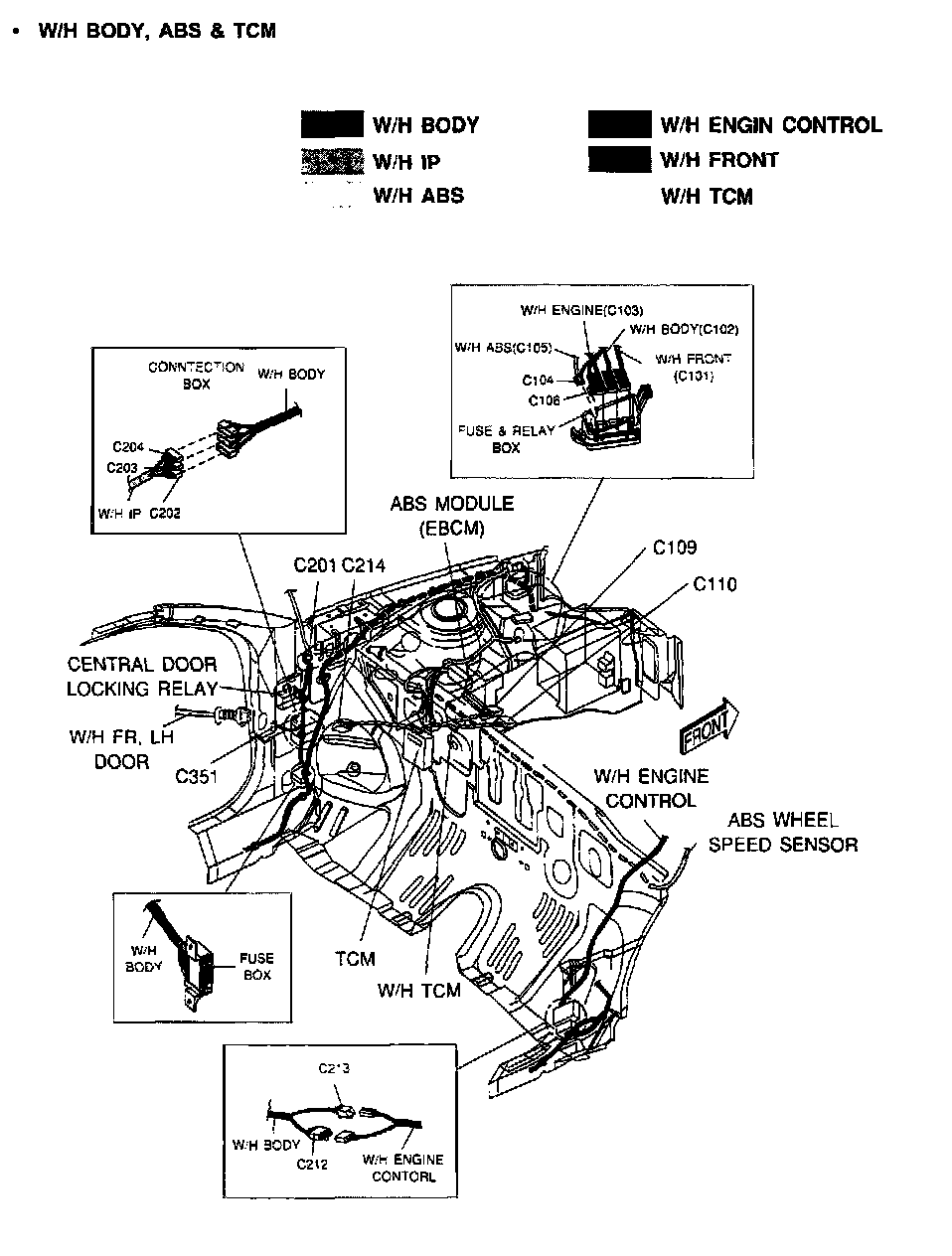

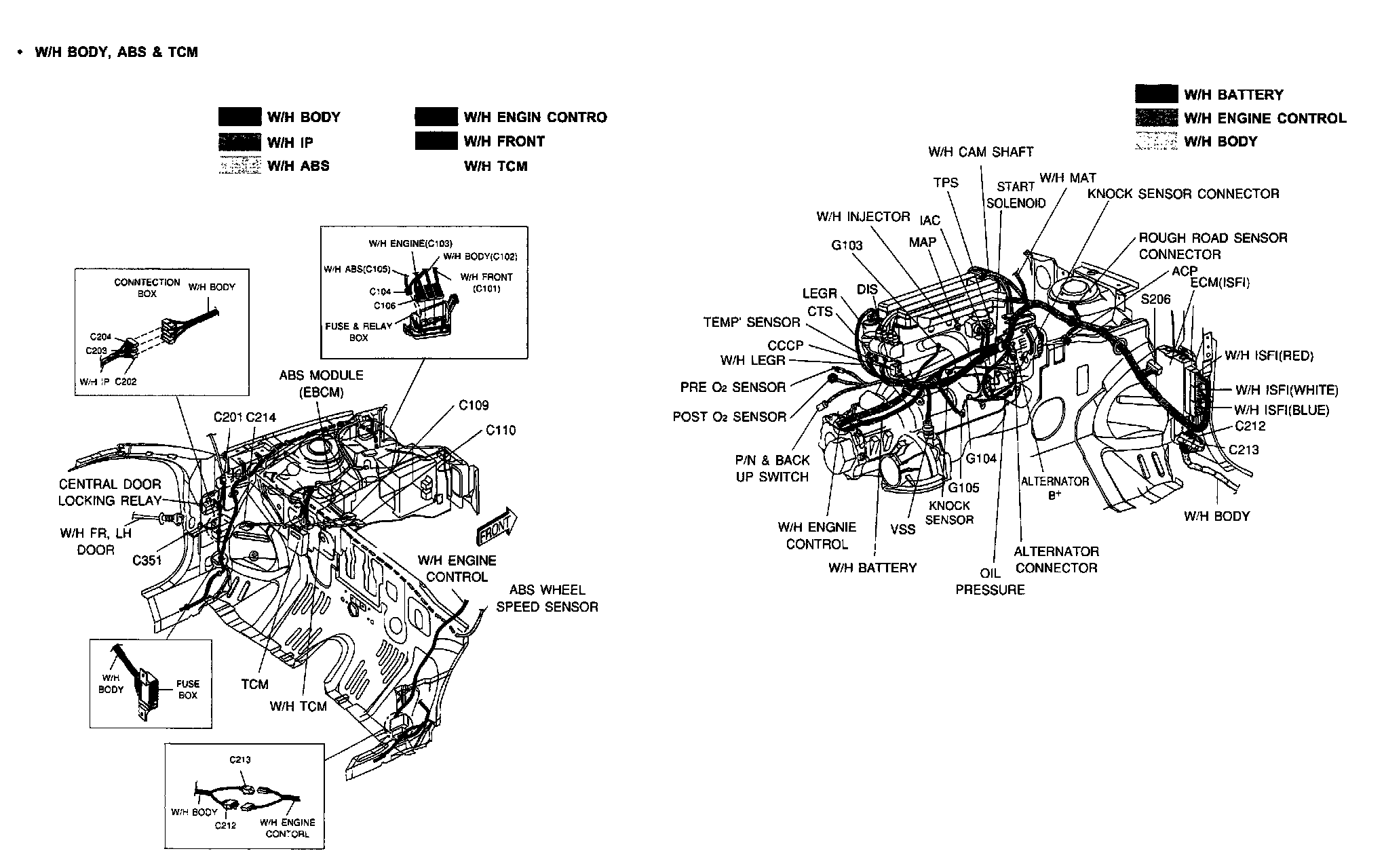

Passenger/Engine Compartment View:



Passenger/Engine Compartment View:



Passenger/Engine Compartment View:

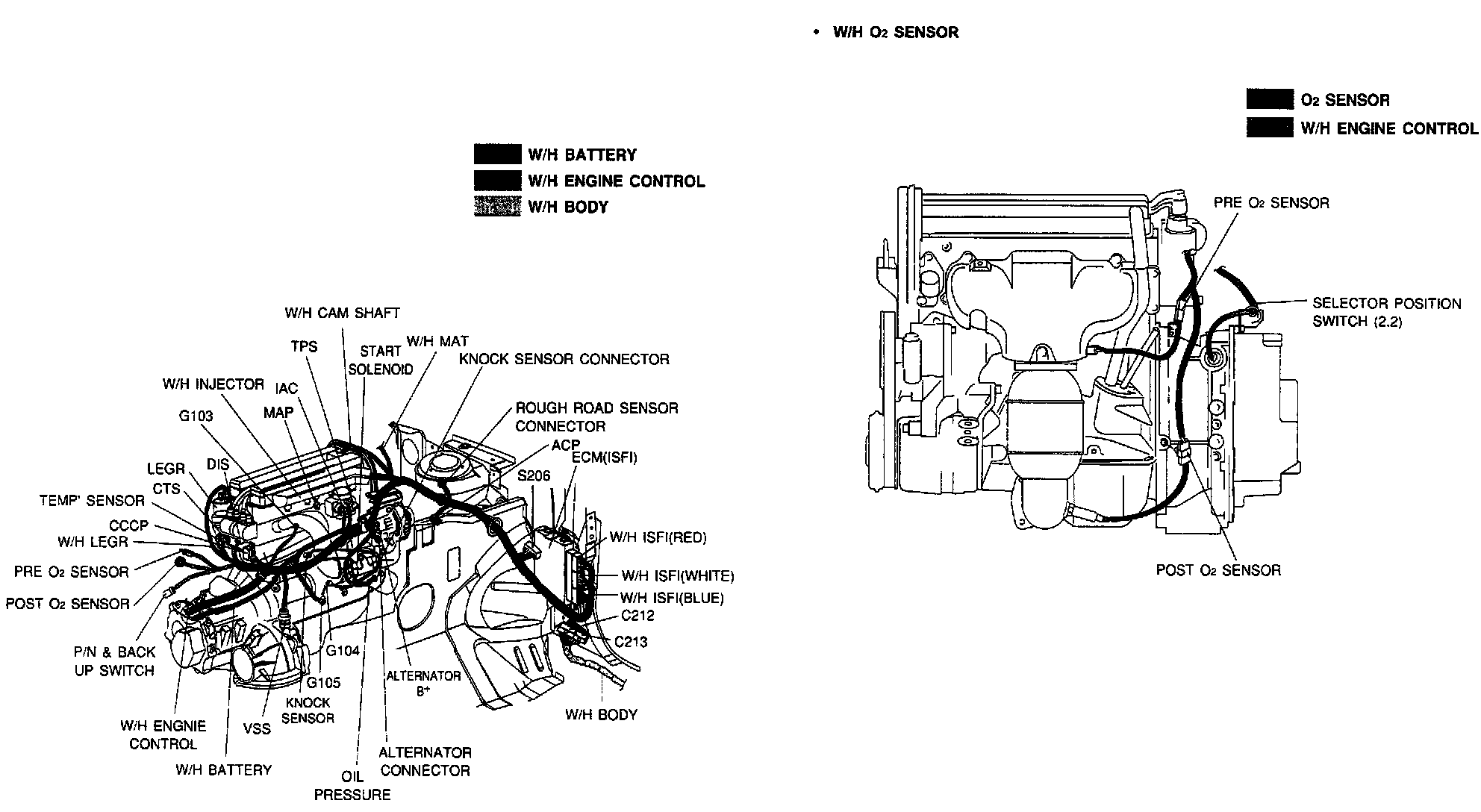

Engine View:



Passenger/Engine Compartment View:
