Speed Sensitive Power Steering System

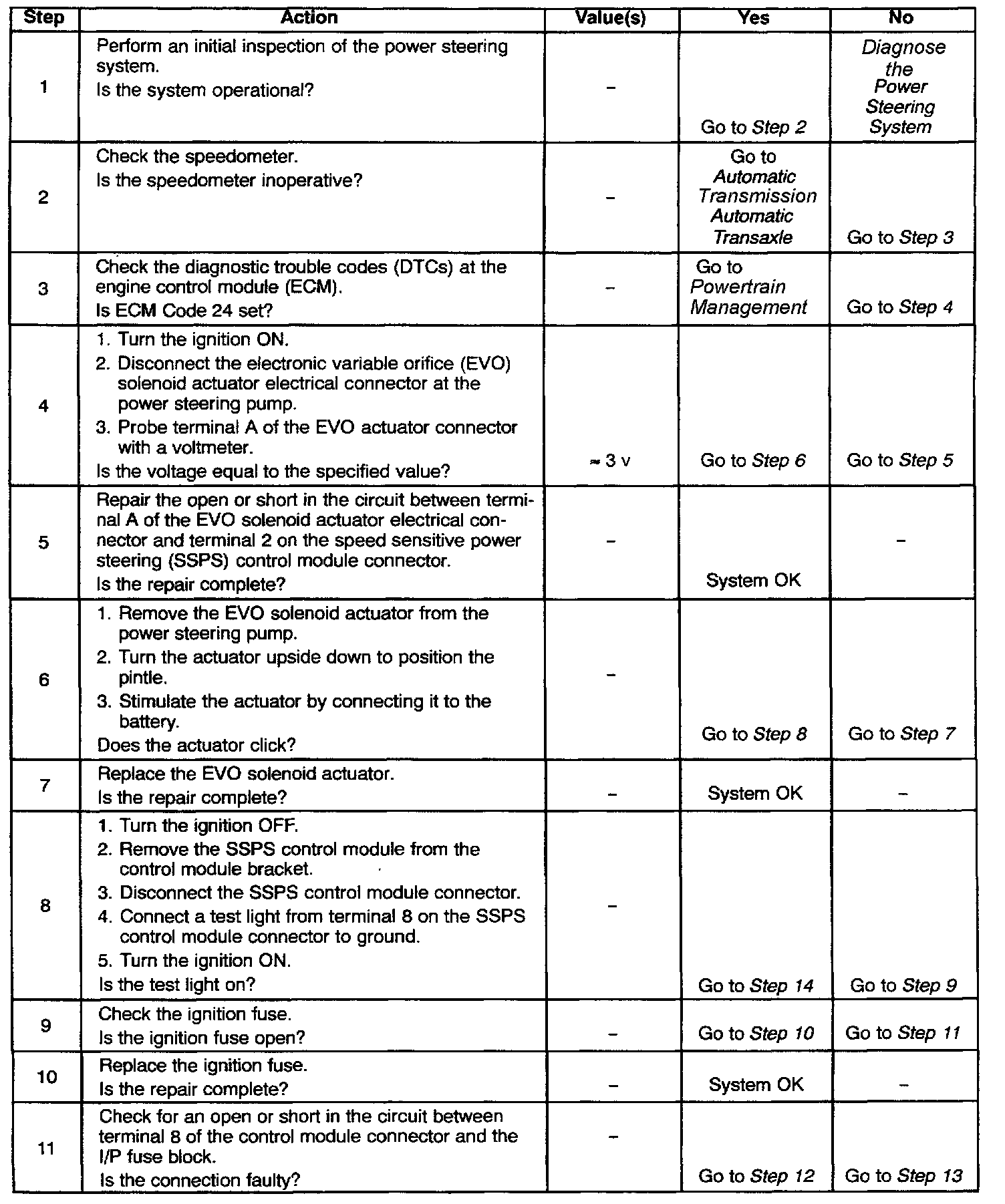

Part 1 of 3

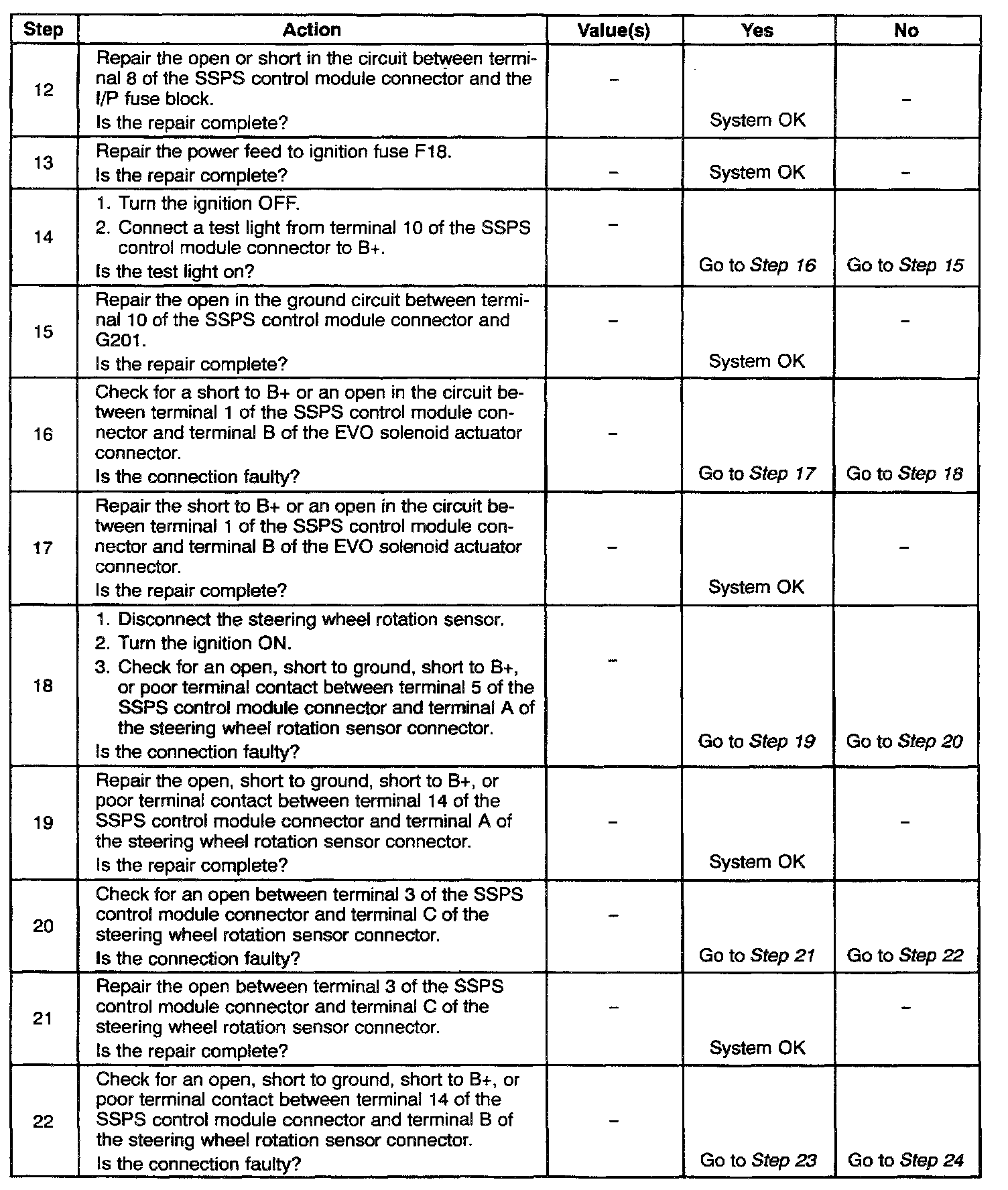

Part 2 of 3





Part 3 of 3

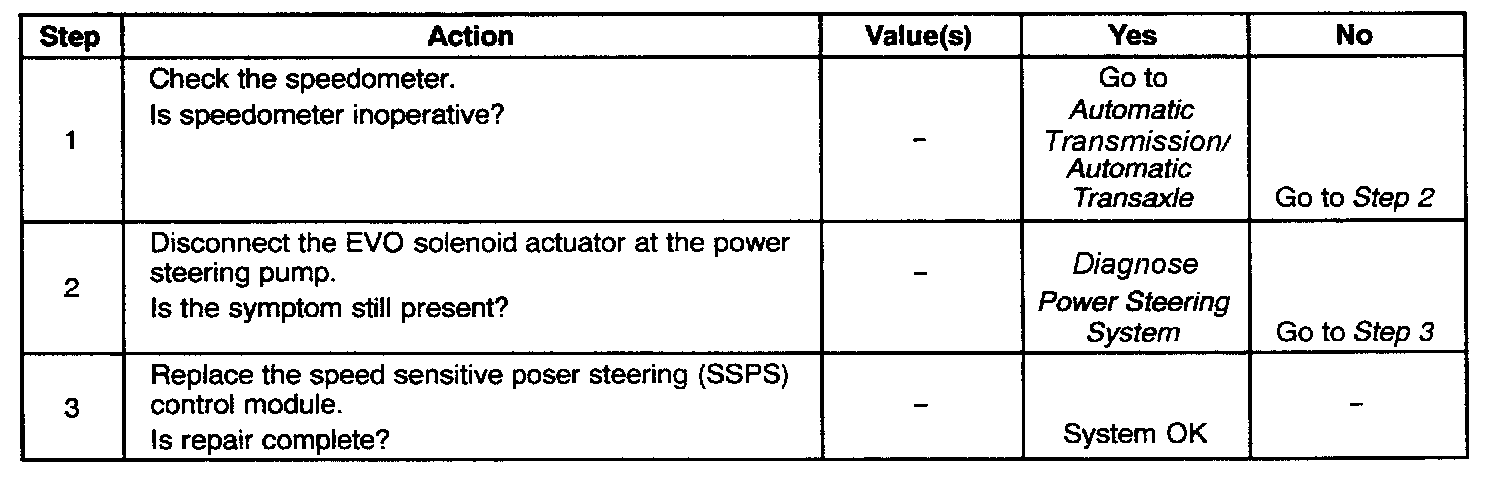

OPERATING WITH FULL ASSIST AT ALL TIMES





SPEED SENSITIVE POWER STEERING SYSTEM OPERATING WITH DECREASED ASSIST AT ALL TIMES
