Electrical Diagrams

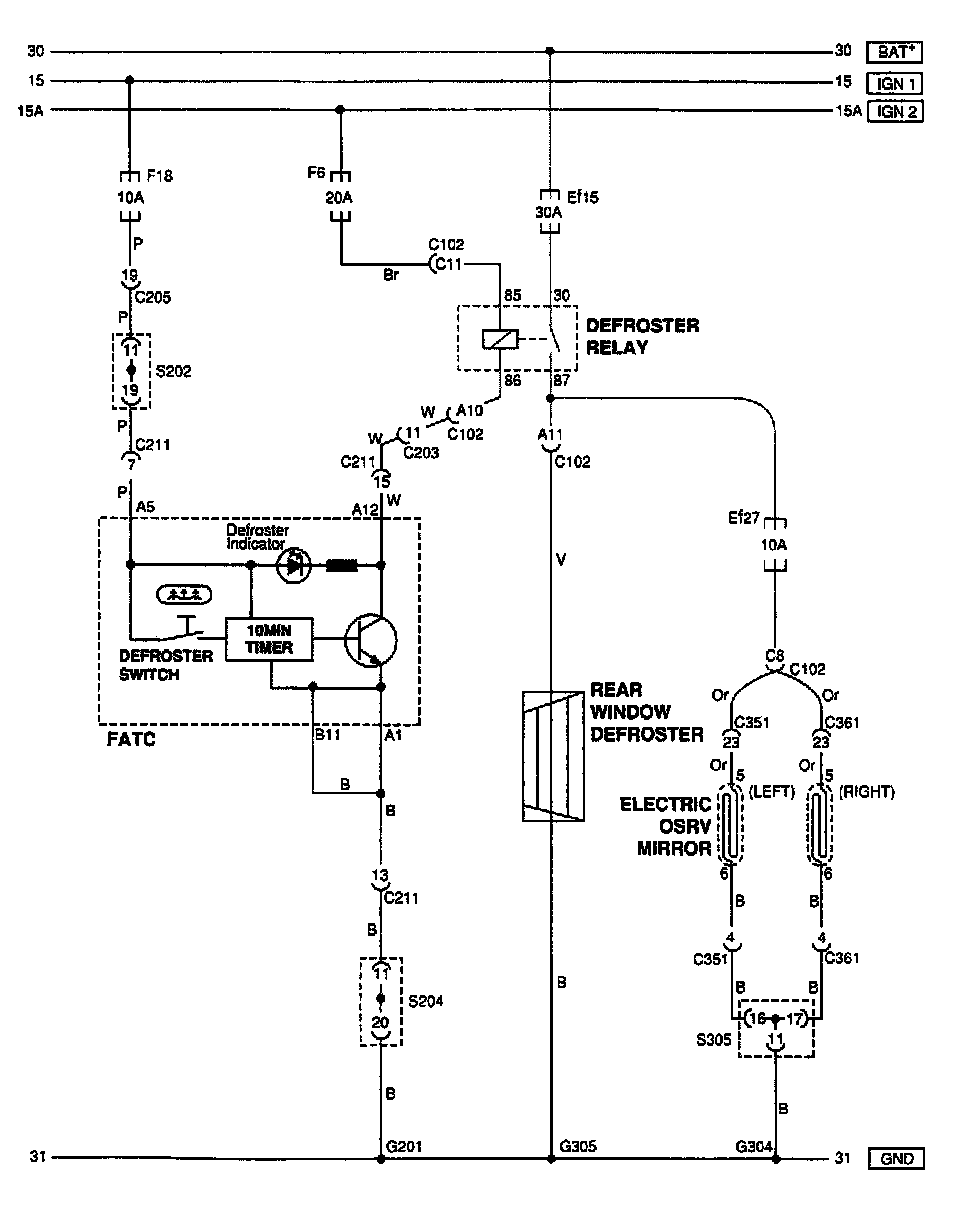

Defroster & Electric OSRV (Outside Rear View) Heating System Circuit (Auto A/C):

Defroster & Electric OSRV (Outside Rear View) Heating System Circuit (Manual A/C):

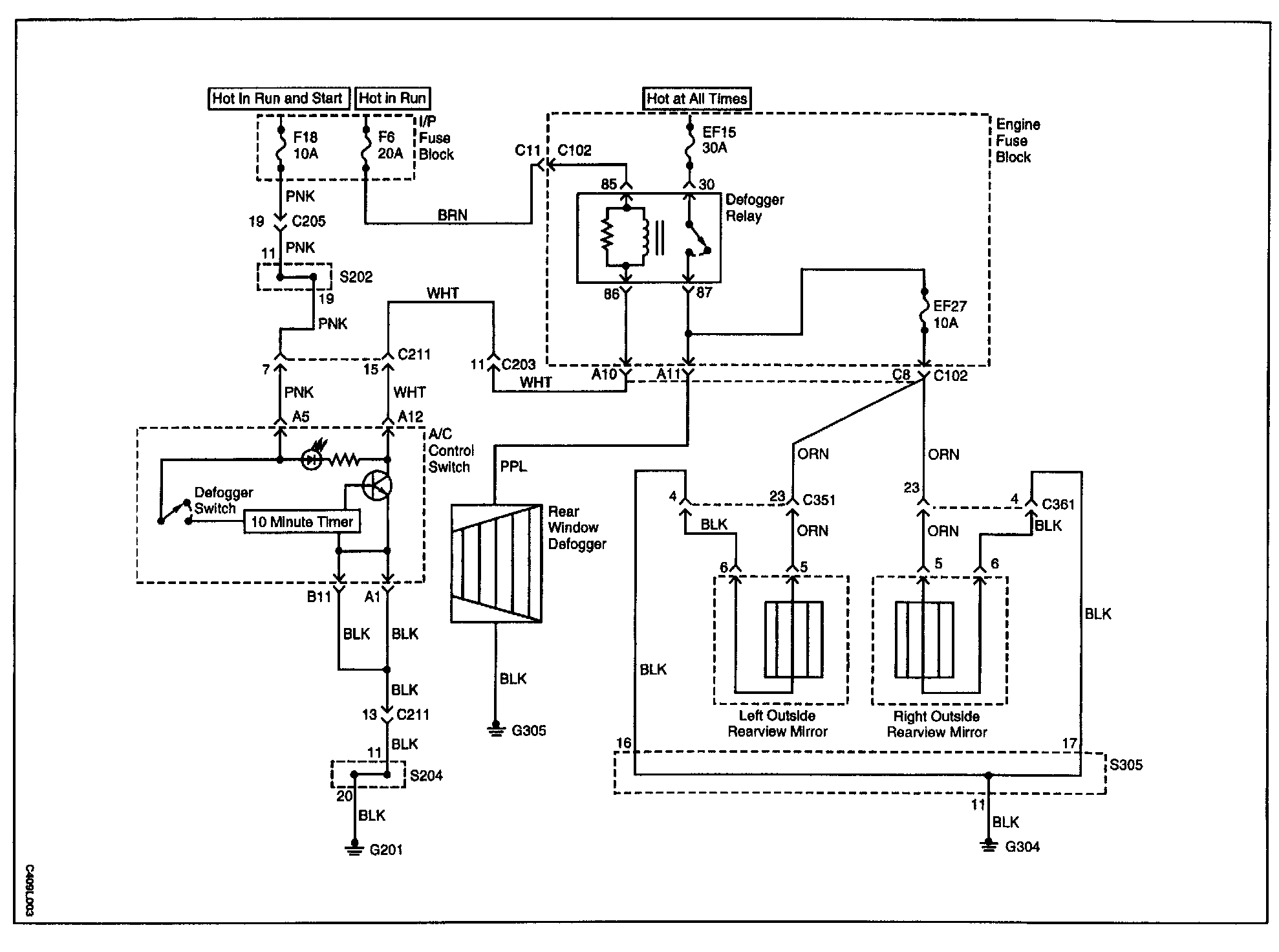

Defogger System (With Manual Heating,Ventilation, and A/C:

Defogger System (With Automatic Temperature Control):
