Home >> Daewoo >> 1999 >> Leganza SX L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Anti Theft Control System Circuit >> Electrical Diagram

Electrical Diagram

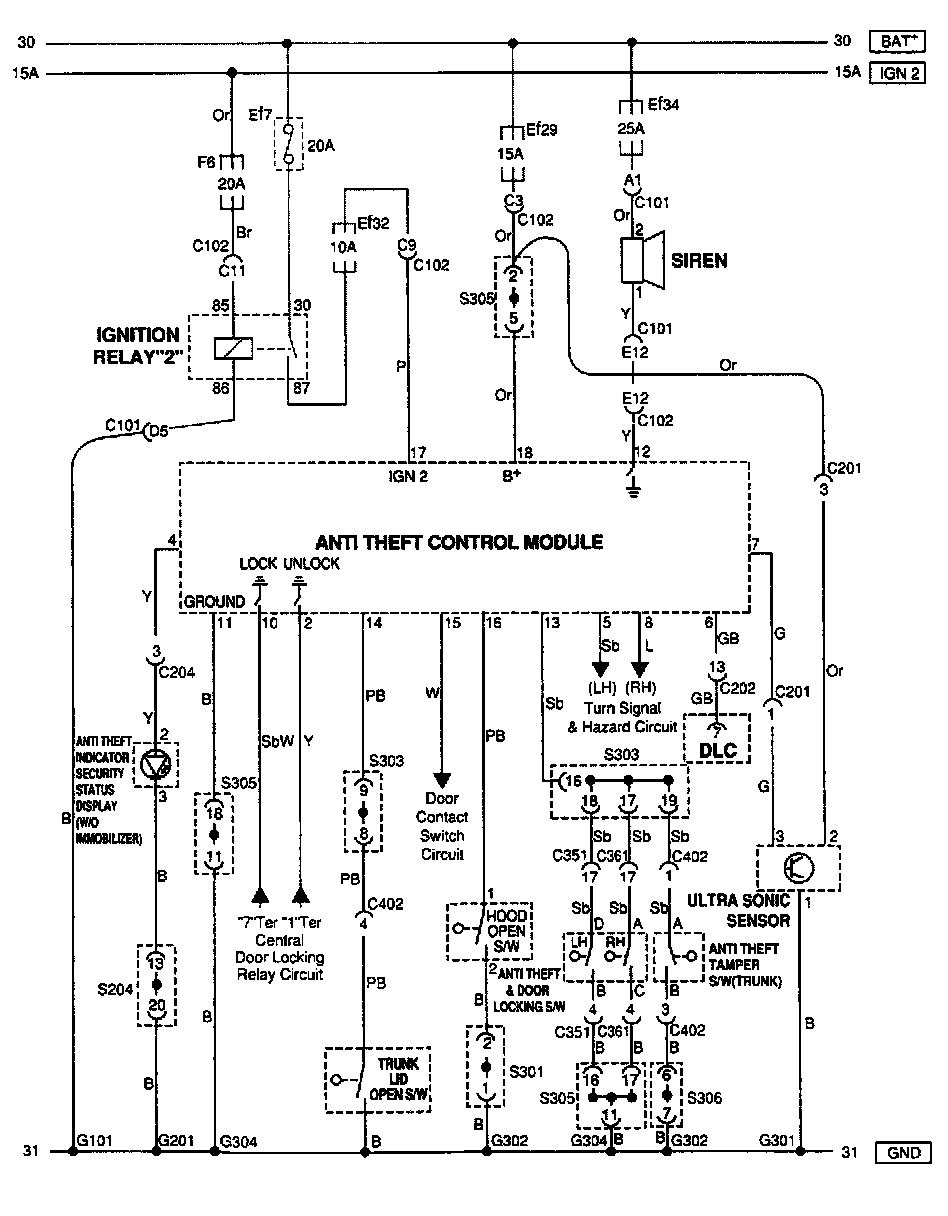

Anti Theft Control System Circuit:
