Rear Defroster & Electric OSRV Mirror Heating System Circuit
>>
Automatic A/C System
>>

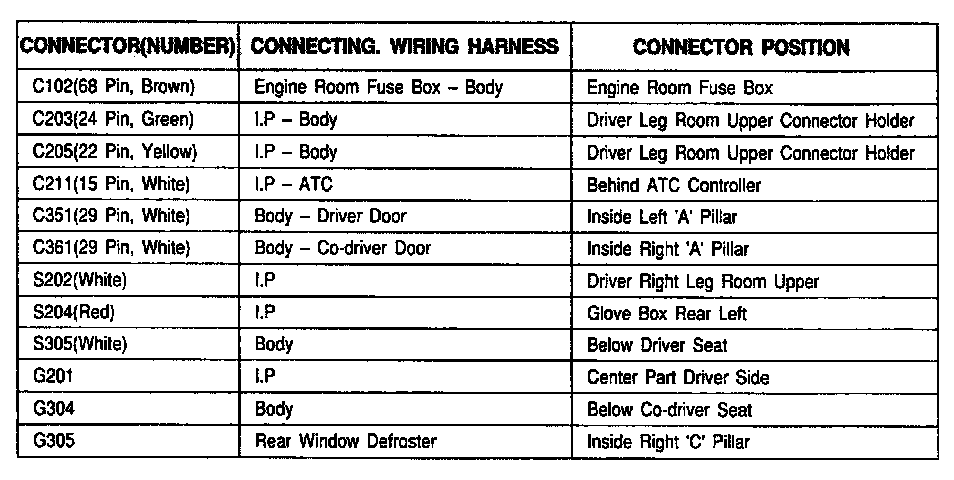

Connector Information
Connector Information
Defroster & Electric OSRV (Outside Rear View) Heating System Circuit (Auto A/C):
