Manual Control Heating, Ventilation and Air Conditioning System

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

Test Description

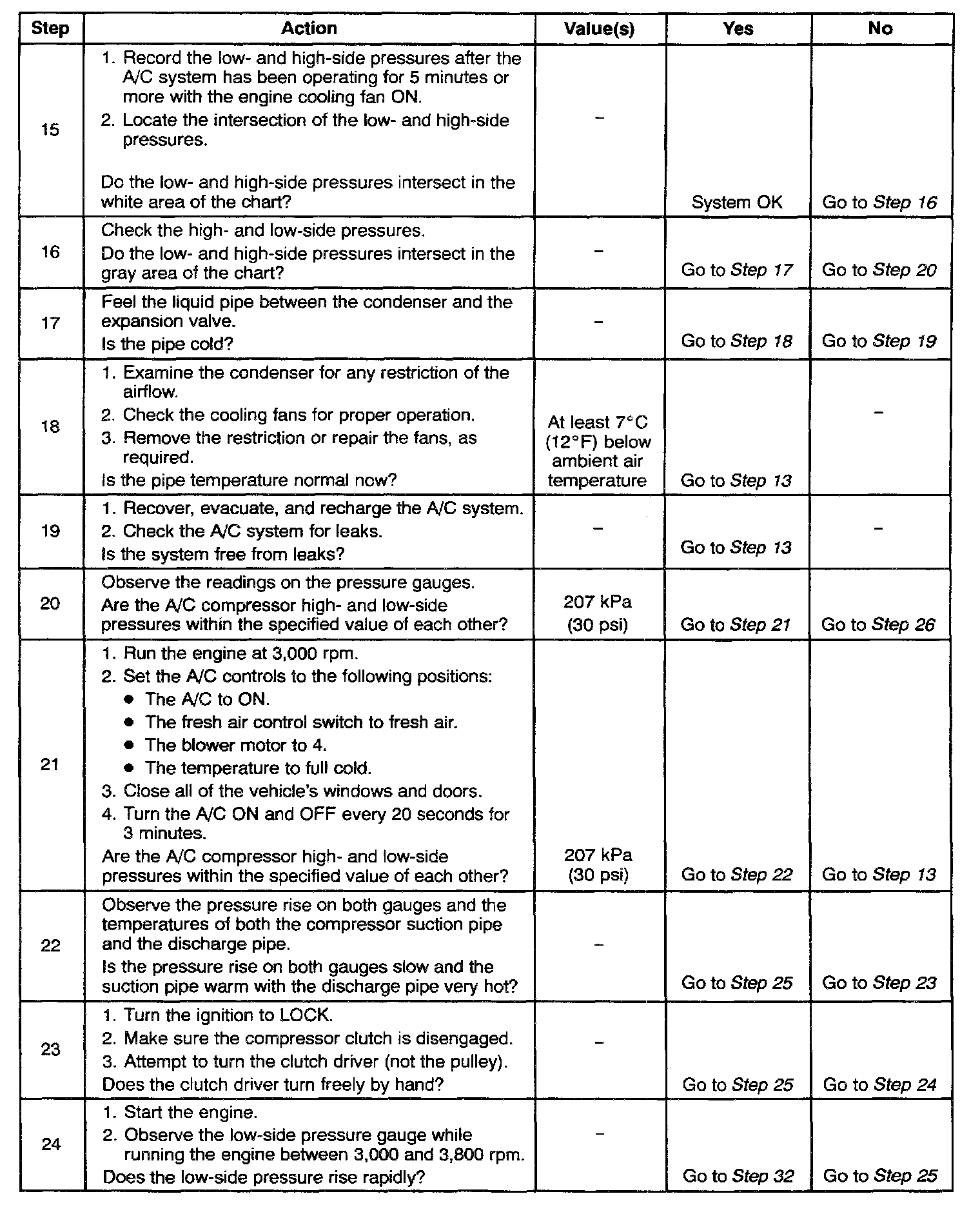

The numbers below refer to steps on the diagnostic table.

13. See the Important.

IMPORTANT: Perform this test under garage conditions with the air temperature at 21 - 32 °C (70 - 90 °F), and no sun load. Follow this test carefully for accurate results.

32. See the Important.

IMPORTANT: Perform this test exactly as described to obtain accurate results.
