Rear

Removal Procedure
1. Raise and suitably support the vehicle.

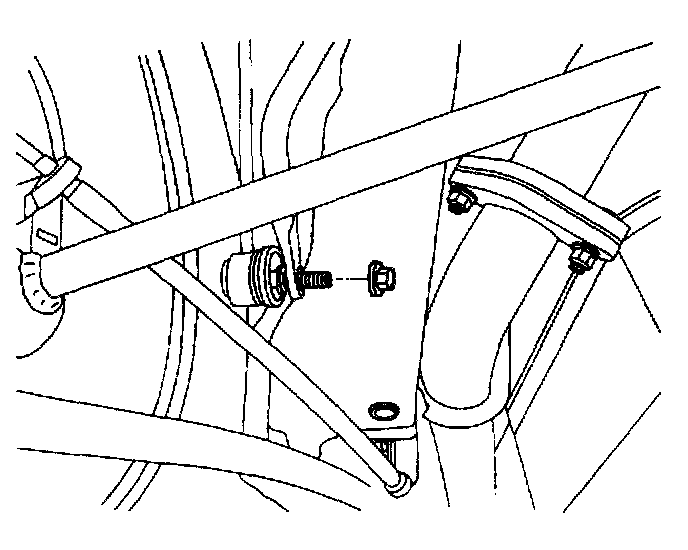

2. Remove the stabilizer shaft-to-stabilizer link nuts.

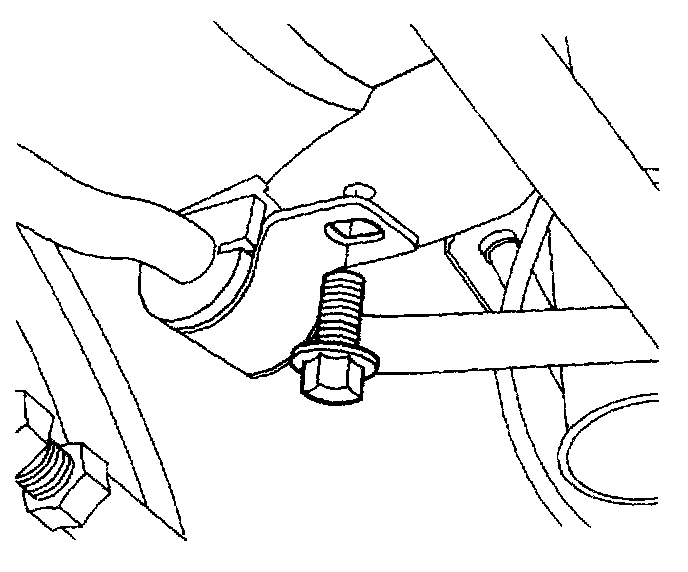

3. Remove the stabilizer shaft clamp bolts and the stabilizer shaft clamp.
4. Remove the stabilizer shaft and the insulators from the vehicle.

Installation Procedure
1. Install the stabilizer shaft and the insulators into the vehicle.





2. Install the stabilizer shaft clamp and the stabilizer shaft clamp bolts. Do not tighten.

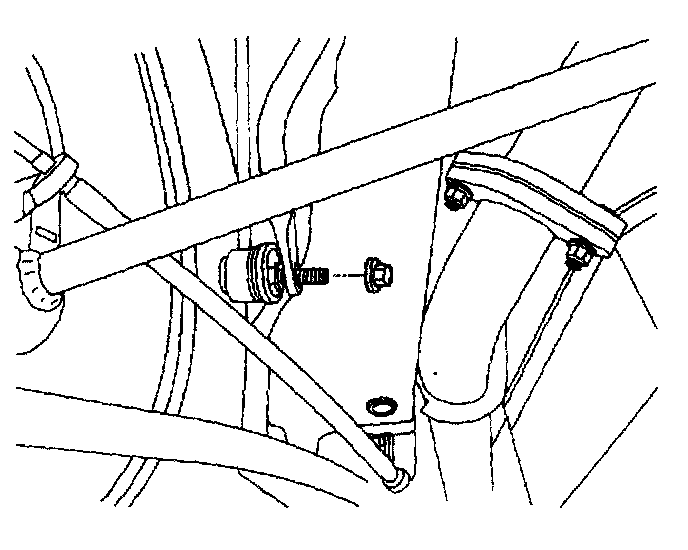

3. Connect the stabilizer shaft to the stabilizer link with the stabilizer shaft-to-stabilizer link nuts.
Tighten
Tighten the stabilizer shaft-to-stabilizer link nuts to 45 Nm (33 ft. lbs.).
Tighten
Tighten the stabilizer shaft clamp bolts to 37 Nm (27 ft. lbs.).
