Instrument Cluster / Carrier: Service and Repair

Removal Procedure
1. Disconnect the negative battery cable.

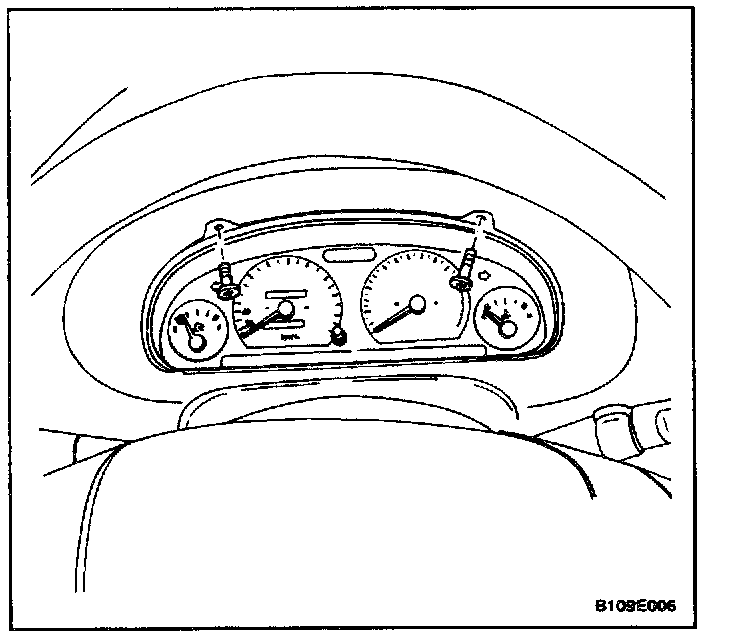

2. Remove the screws and the instrument cluster.
3. Disconnect the electrical connectors.




Installation Procedure
1. Connect the electrical connectors.
2. Install the instrument cluster with the screws.

Tighten
Tighten the instrument cluster screws to 4 Nm (35 lb.in).

3. Connect the negative battery cable.
