Rear Window Wiper Motor (Wagon)
Removal Procedure1. Disconnect the negative battery cable.
2. Remove the rear window wiper arm.

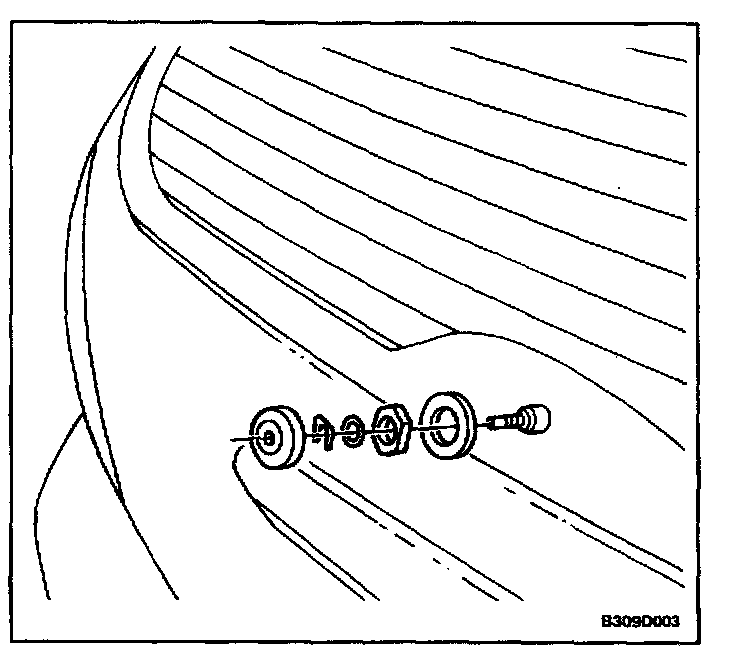

3. Remove the wiper motor exterior retaining clip and the nut from the tailgate.
4. Remove the tailgate lower garnish molding.
5. Disconnect the electrical connector and the washer hose.
6. Remove the bolts and the rear wiper motor.
Installation Procedure
NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion
1. Install the rear wiper motor with the bolts.
Tighten
Tighten the wiper motor bolts to 9 Nm (80 lb.in).
2. Connect the electrical connector and the washer hose.
3. Install the tailgate lower garnish molding.
4. Install the wiper motor nut and the exterior retaining clip to the tailgate.
5. Install the rear window wiper arm.
6. Connect the negative battery cable.
