Wheel Speed Sensor

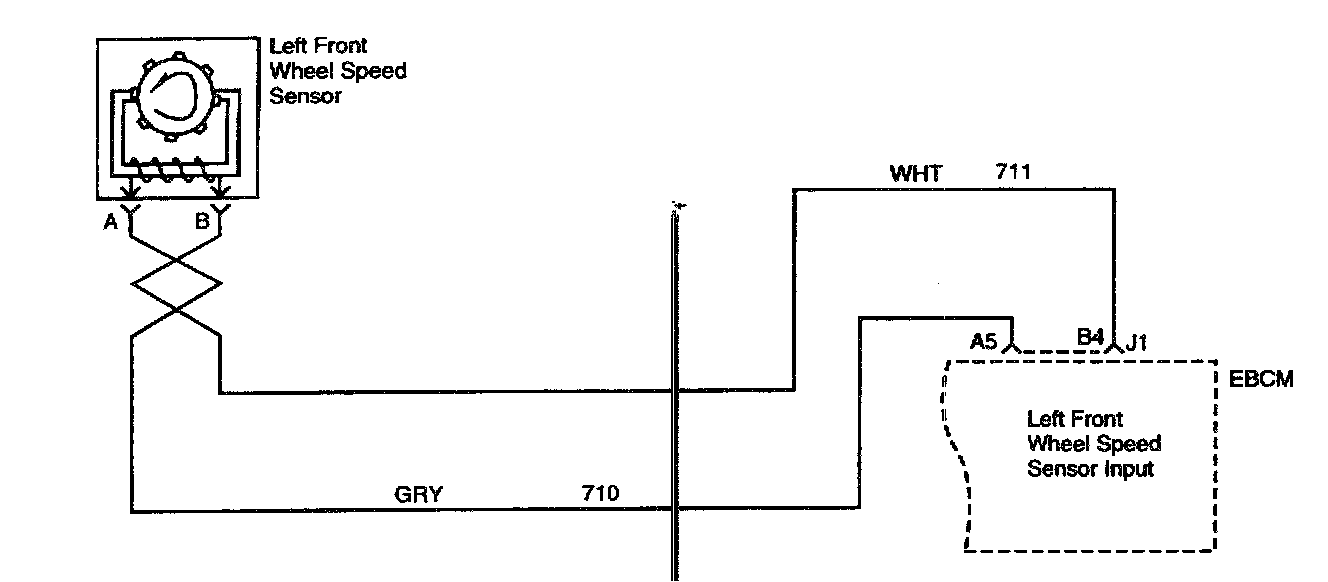

LEFT FRONT WHEEL SPEED SENSOR

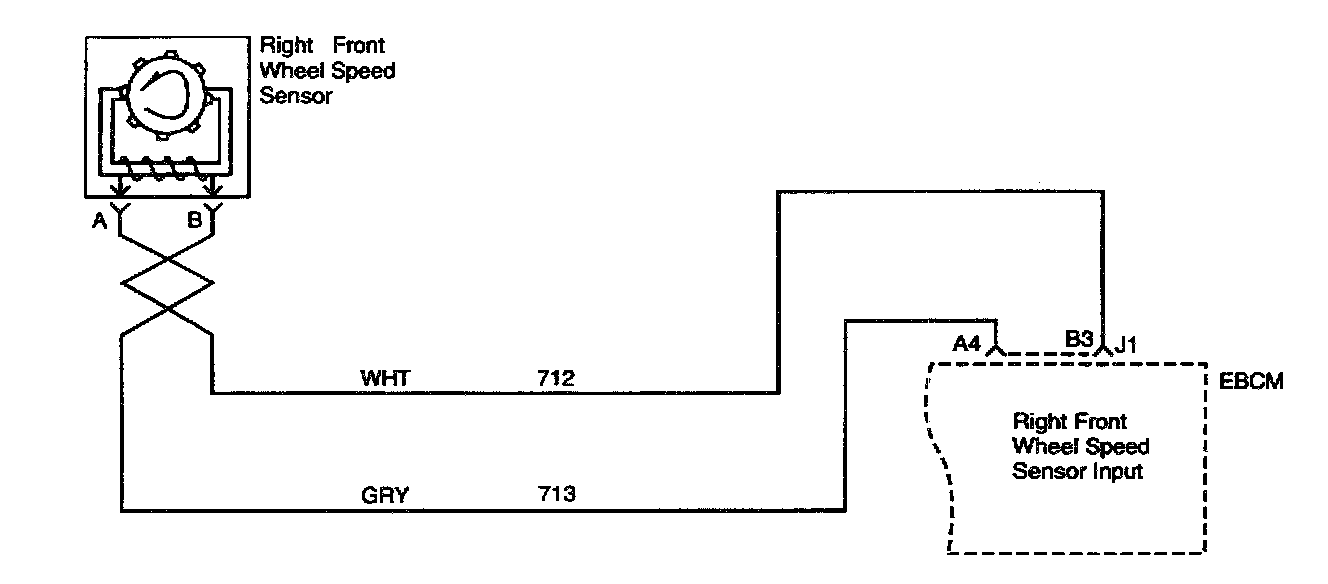

RIGHT FRONT WHEEL SPEED SENSOR





LEFT REAR WHEEL SPEED SENSOR

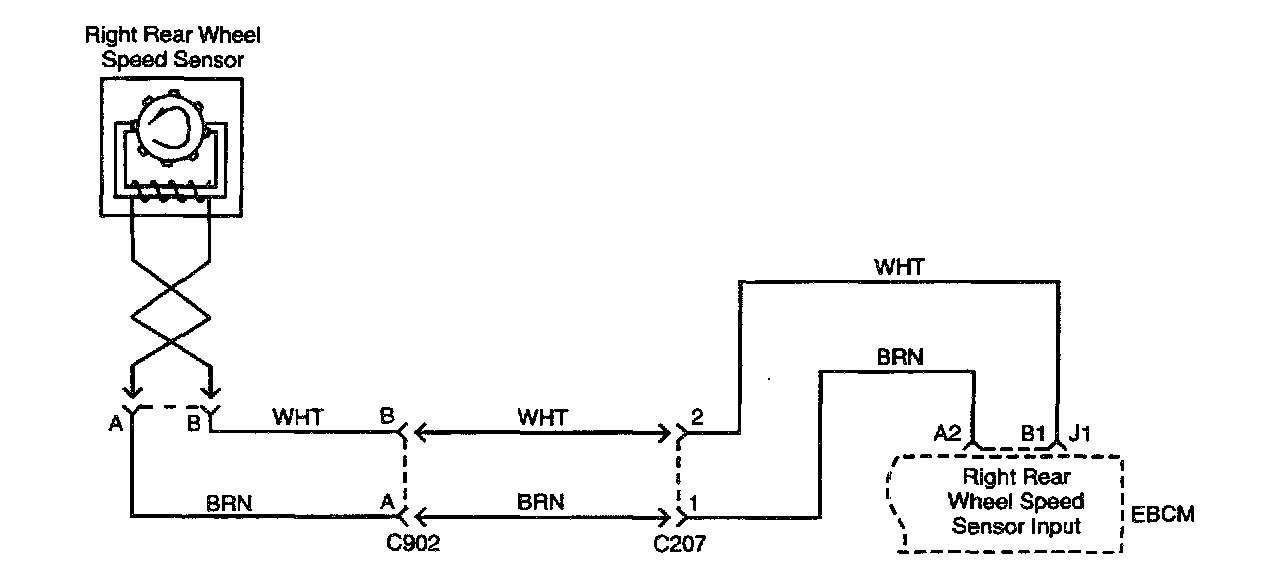

RIGHT REAR WHEEL SPEED SENSOR
