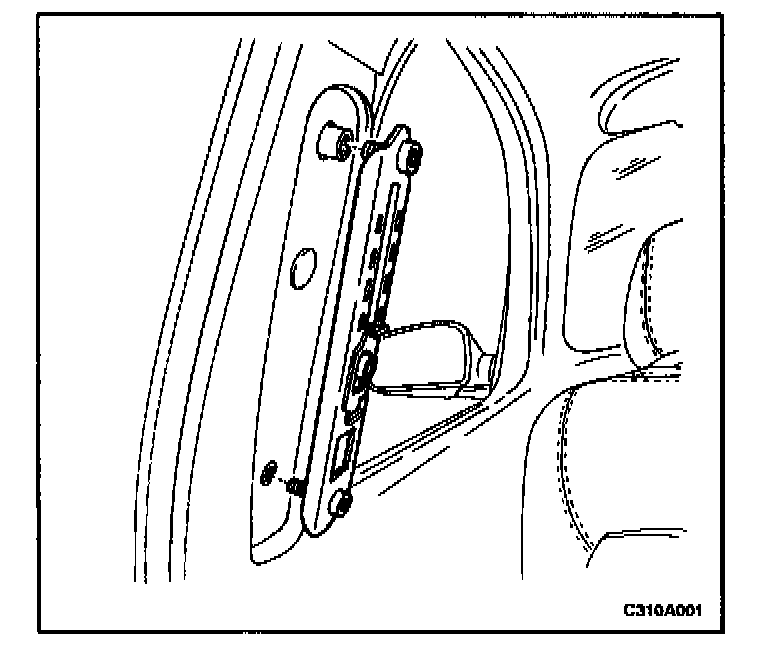

Front Seat Belt Height Adjuster

Removal Procedure




1. Remove the upper B-pillar trim panel. Refer to Interior Trim.
2. Remove the bolts and the seat belt height adjuster.

Installation Procedure





NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the seat belt height adjuster with the bolts.
Tighten
Tighten the seat belt height adjuster bolts to 19 Nm (14 lb.ft).

2. Install the upper B-pillar trim panel. Refer to "Interior Trim".
