Three-Point CLR Rear Center Seat Belt (Notch Back Only)

Removal Procedure




1. Remove the rear seat cushion. Refer to Seats.

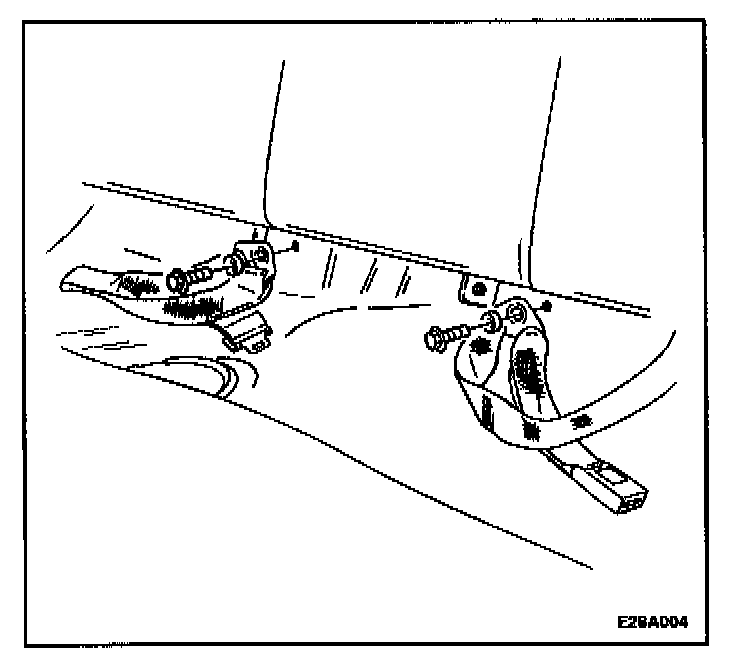

2. Remove the bolts and the seat belt anchors.




3. Remove the C-pillar trim. Refer to Interior Trim.
4. Remove the deck lid sill plate cover. Refer to Interior Trim.

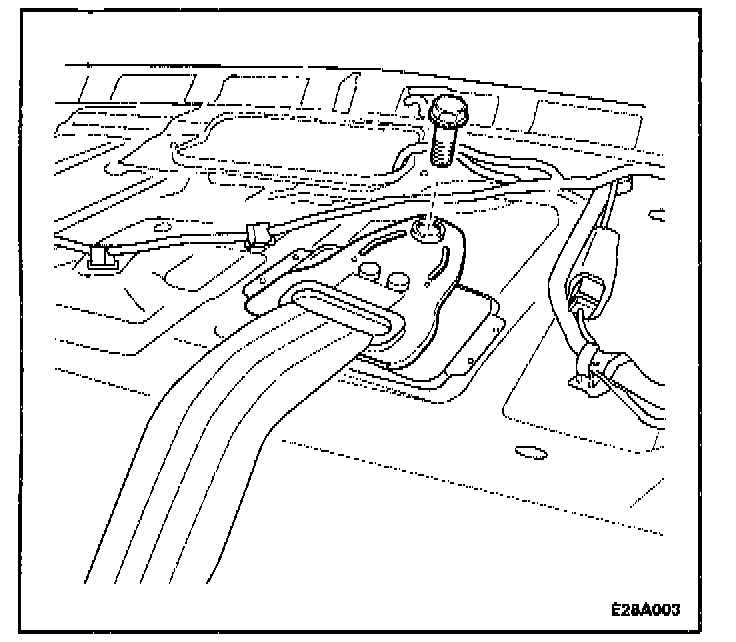

5. Remove the center seat belt retractor with the bolt.

Installation Procedure





NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the center seat bolts retractor with the bolt.
Tighten
Tighten the center seat belt retractor bolts to 38 Nm (28 lb.ft).

2. Install the deck lid sill plate cover. Refer to Interior Trim.
3. Install the C-pillar trim. Refer to Interior Trim.




4. Install the seat belt anchors with the bolts.
Tighten
Tighten the seat belt anchor bolts to 38 Nm (28 lb.ft).

5. lnstall the rear seat cushion. Refer to Seats.
