Two-Point Lap Rear Center Seat Belt

Removal Procedure




1. Remove the rear seat cushion. Refer to Seats.

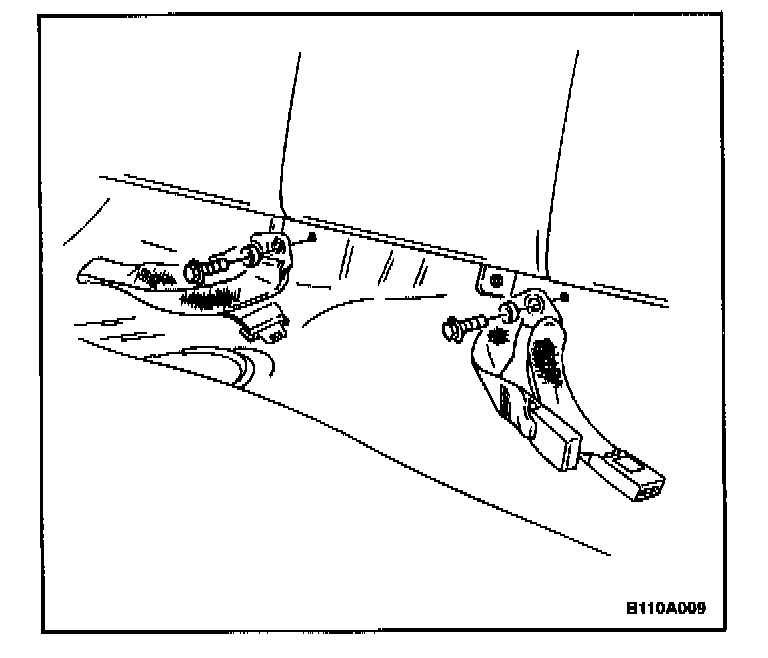

2. Remove the bolts and the seat belt anchors.

Installation Procedure





NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the seat belt anchors with the bolts.
Tighten
Tighten the seat belt anchor bolts to 38 Nm (28 lb.ft).

2. Install the rear seat cushion. Refer to Seats.
