Fog/Driving Lamp: Service and Repair

Removal Procedure




1. Disconnect the negative battery cable.

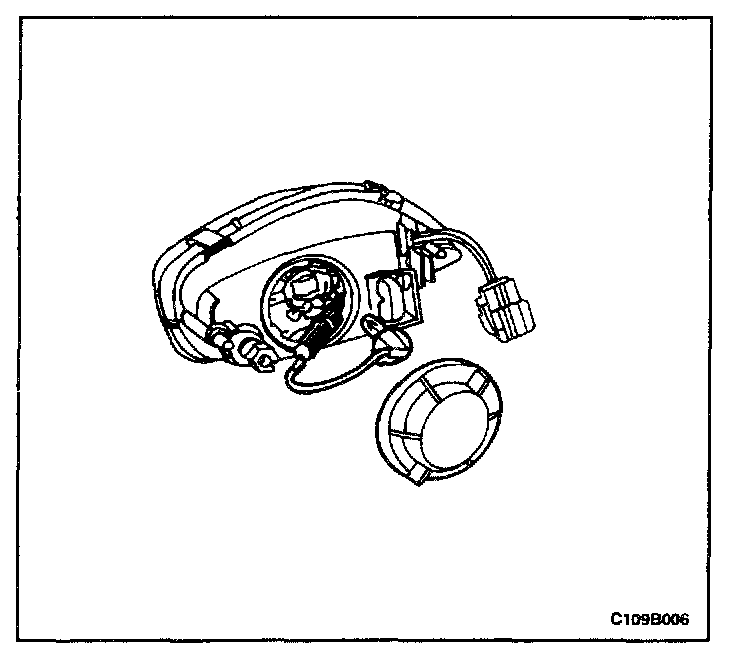

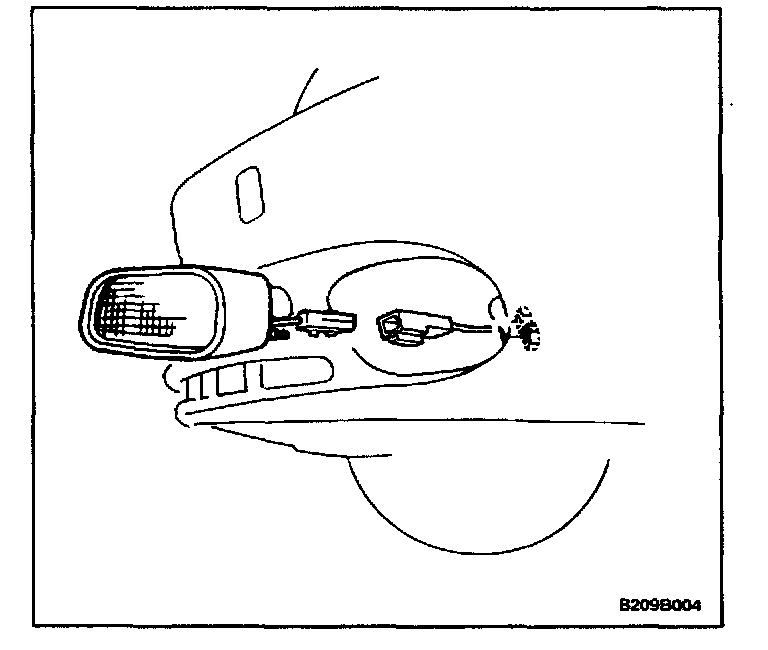

2. Remove the nuts and the fog lamp.
3. Disconnect the electrical connector.




4. Remove the fog lamp access cover.
5. Remove the retaining wire.
6. Remove the bulb.

Installation Procedure




1. Install the bulb.
2. Install the retaining wire.
3. Install the fog lamp access cover.




4. Connect the electrical connector.

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

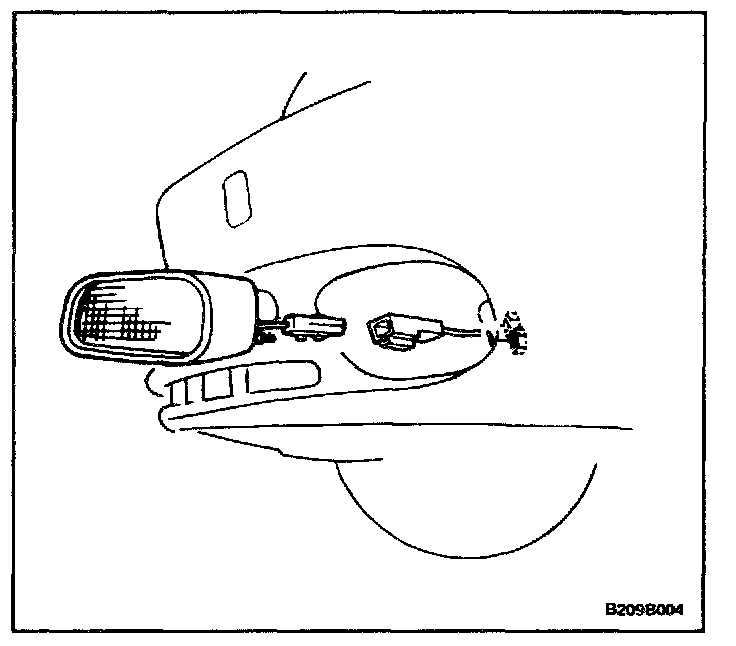

5. Install the fog lamp with the nuts.

Tighten
Tighten the fog lamp nuts to 4 Nm (35 lb.in).

6. Connect the negative battery cable.
