Tachometer

Connector Identification Symbol & Pin Number Position:

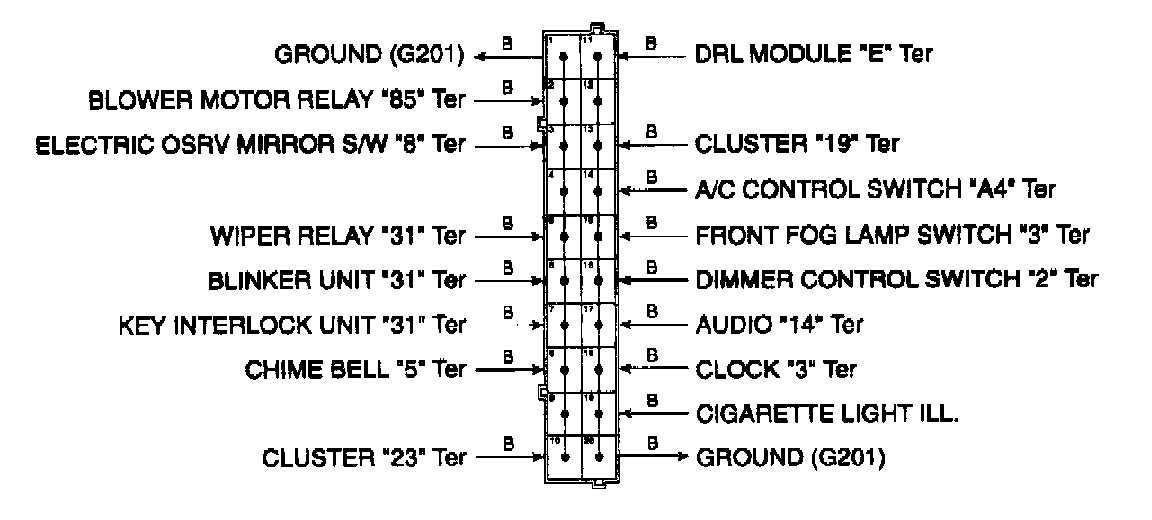

Splice Pack - S201 (Blue):

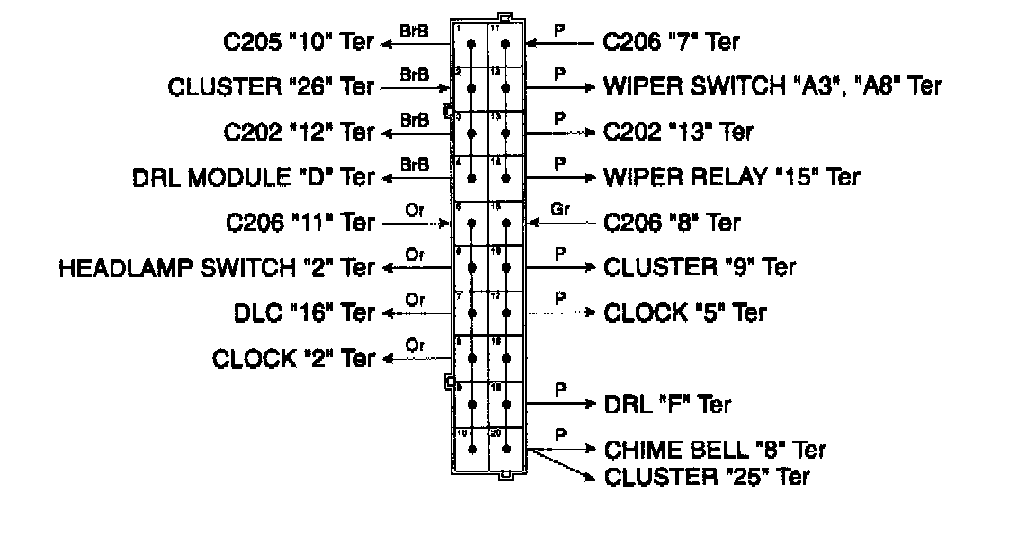

Splice Pack - S203 (Red):
