Lanos S Sedan L4-1.6L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
System Diagram

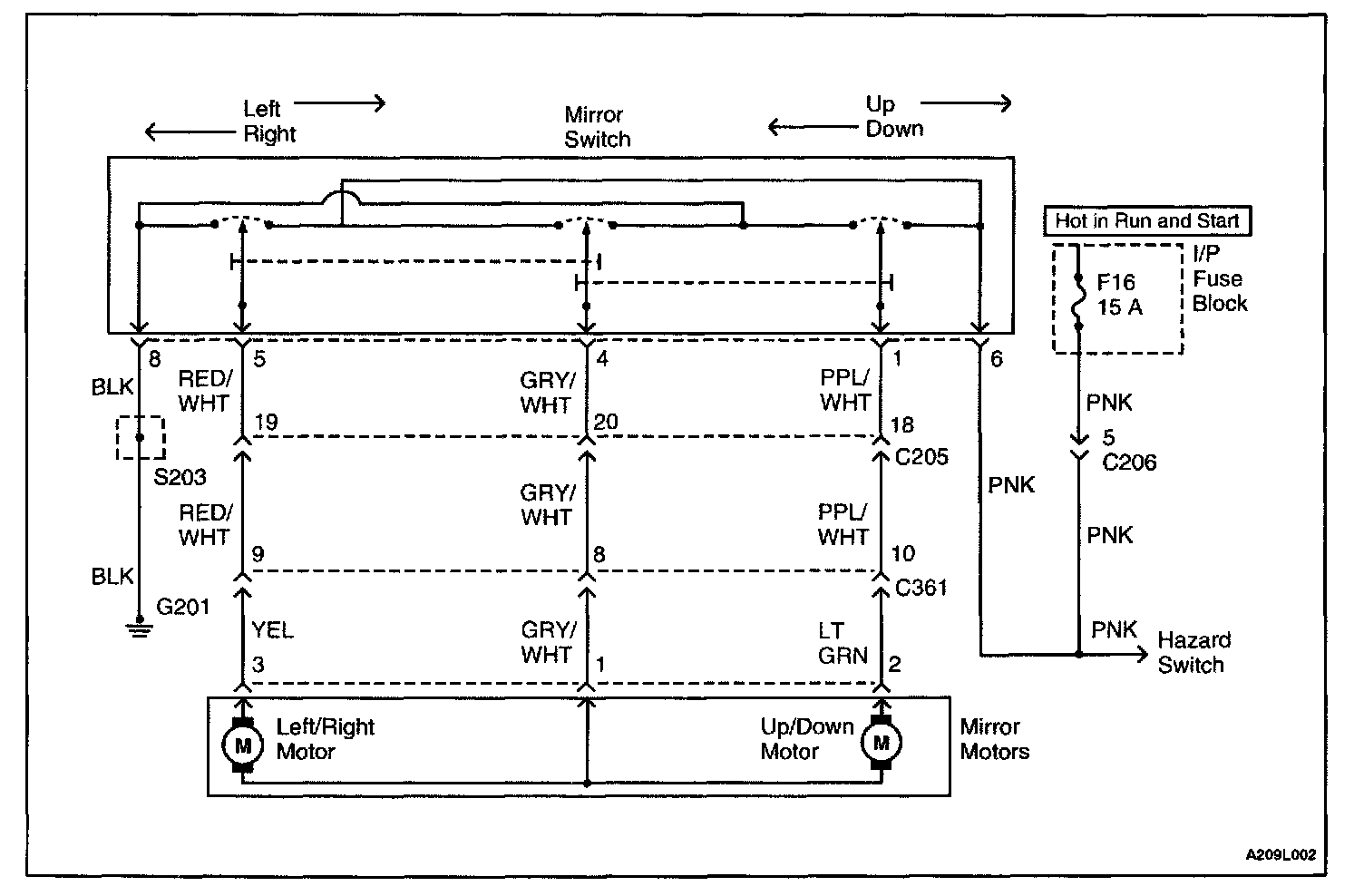

Electric Control Outside Rearview Mirror:
