Instrument Cluster Replacement

Removal Procedure




1. Disconnect the negative battery cable.
2. Remove the instrument cluster trim panel.

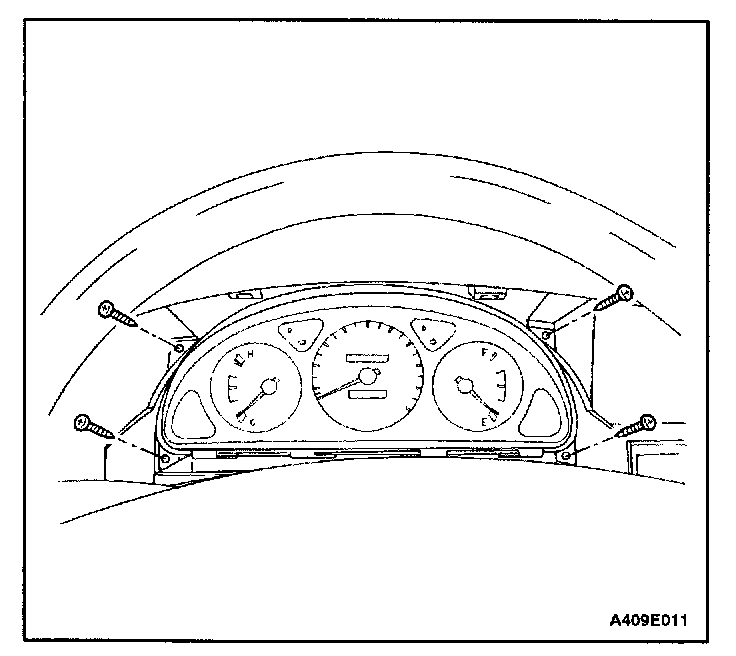

3. Remove the screws and the instrument cluster.
4. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

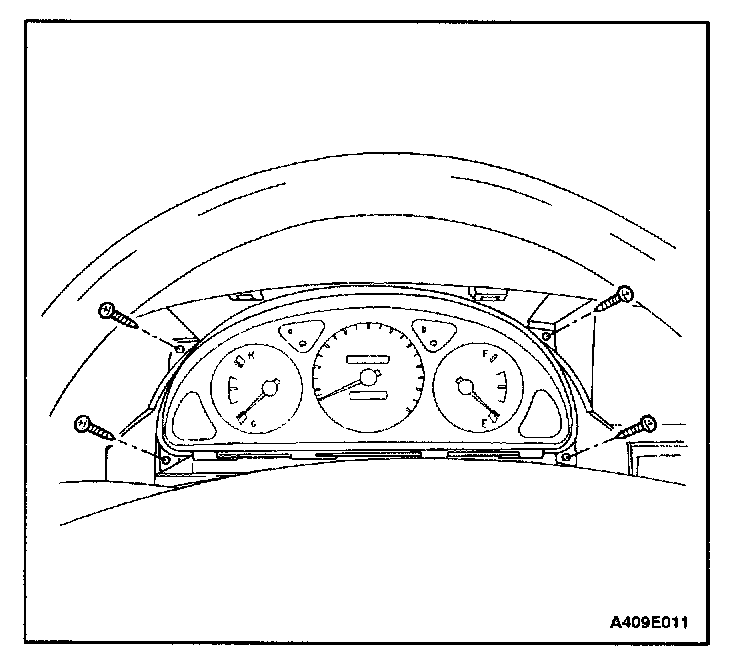

2. Install the instrument cluster with the screws.
Tighten
Tighten the instrument cluster screws to 2 N.m (18 lb.in).

3. Install the instrument cluster trim panel.
4. Connect the negative battery cable.
