Seat Belt Warning Chime Inoperative

Chime Module - Circuit Diagram:




Steps 1 - 13:

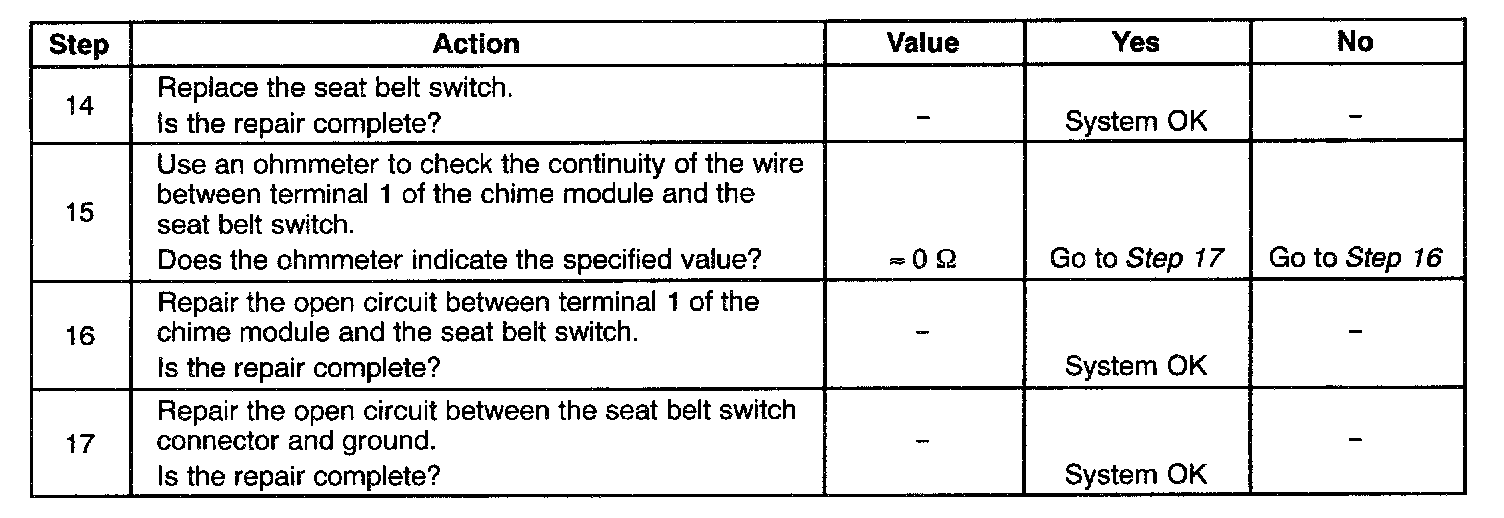

Steps 14 - 17:
