Sensors (CMP, O2S), VGIS, EVAP Diag & Canister Purge Solenoid
Sensors (CMP, O2S), VGIS, EVAP Diag & Canister Purge Solenoid
Connector Identification Symbol & Pin Number Position:

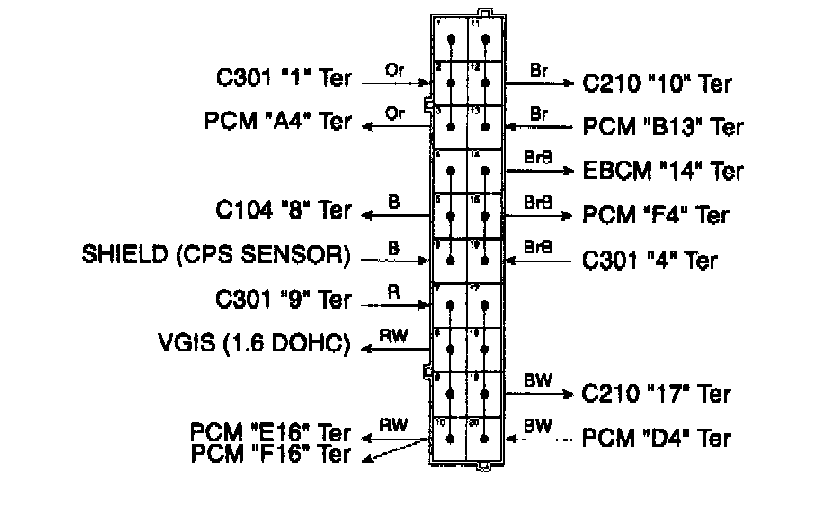

Splice Pack - S303 (Orange):
