Outside Rearview Mirrors

Removal Procedure

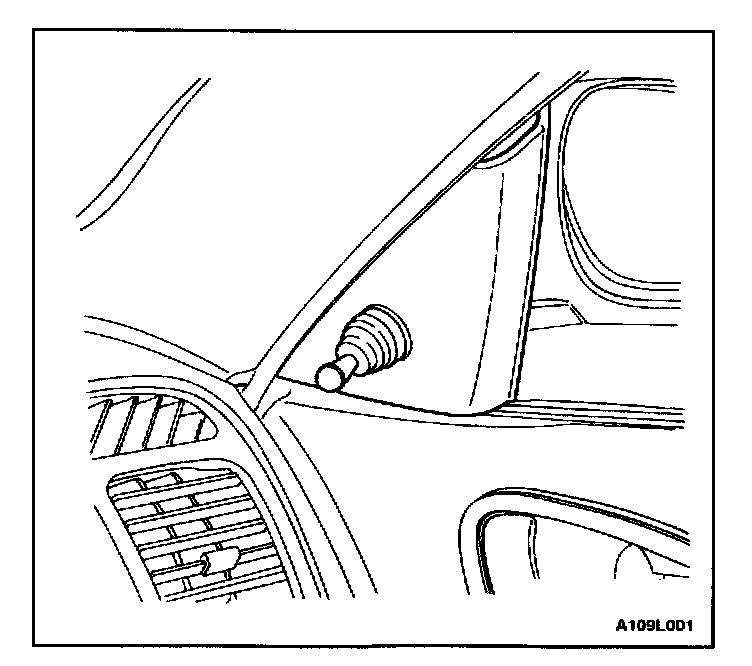

1. Remove the front door escutcheon. (Manual remote control mirror shown.)




2. Disconnect the electric control rearview mirror electrical connector, if equipped.

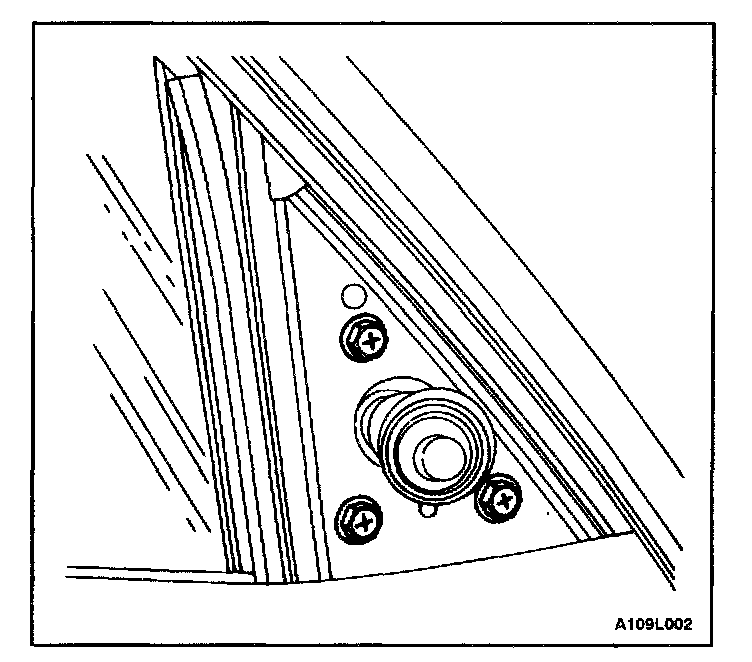

3. Remove the screws and the outside rearview mirror assembly from the door. (Manual remote control mirror shown.)

Installation Procedure




1. Install the outside rearview mirror assembly to the door with the screws.
Tighten
Tighten the outside rearview mirror assembly screws to 4.5 N.m (40 lb.in). (Manual remote control mirror shown.)

2. Connect the electric control rearview mirror electrical connector, if equipped.




3. Install the escutcheon. (Manual remote control mirror shown.)
