Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

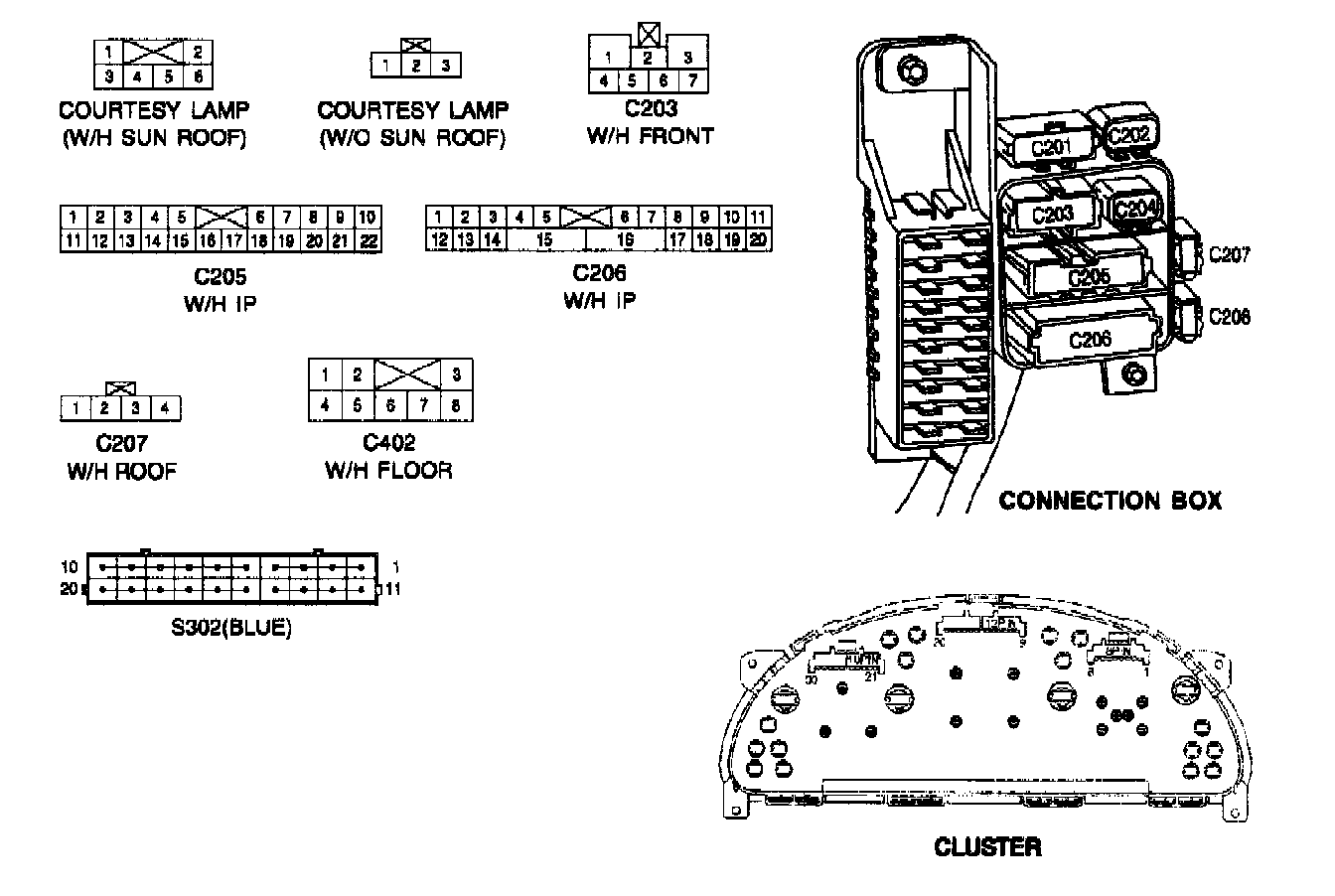

Connector Identification Symbol & Pin Number Position:

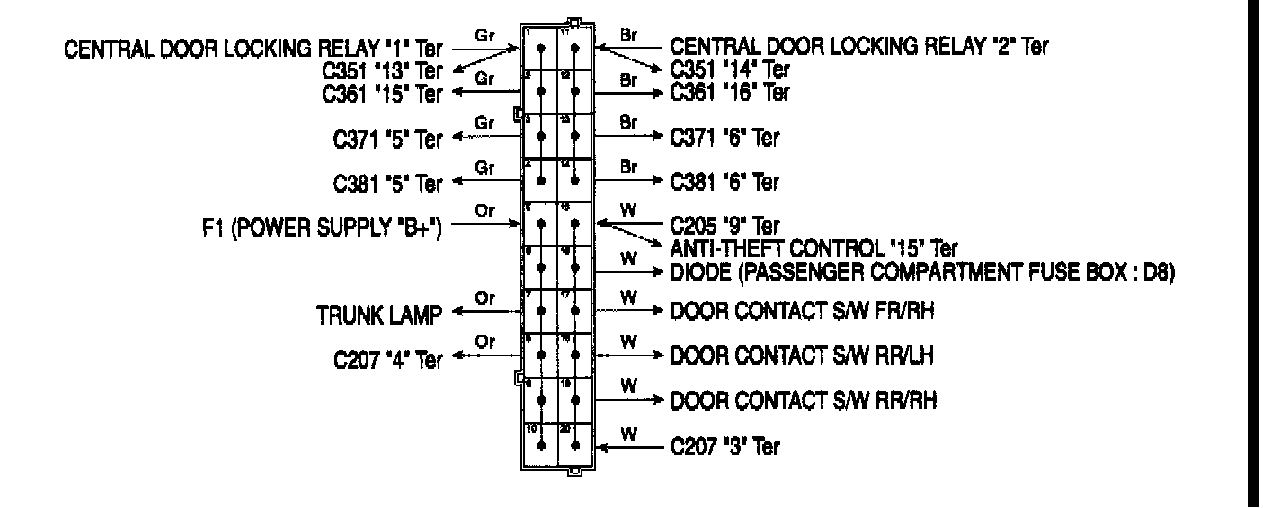

Splice Pack - S302 (Blue) - Notch Back:
