Ignition System
Ignition System

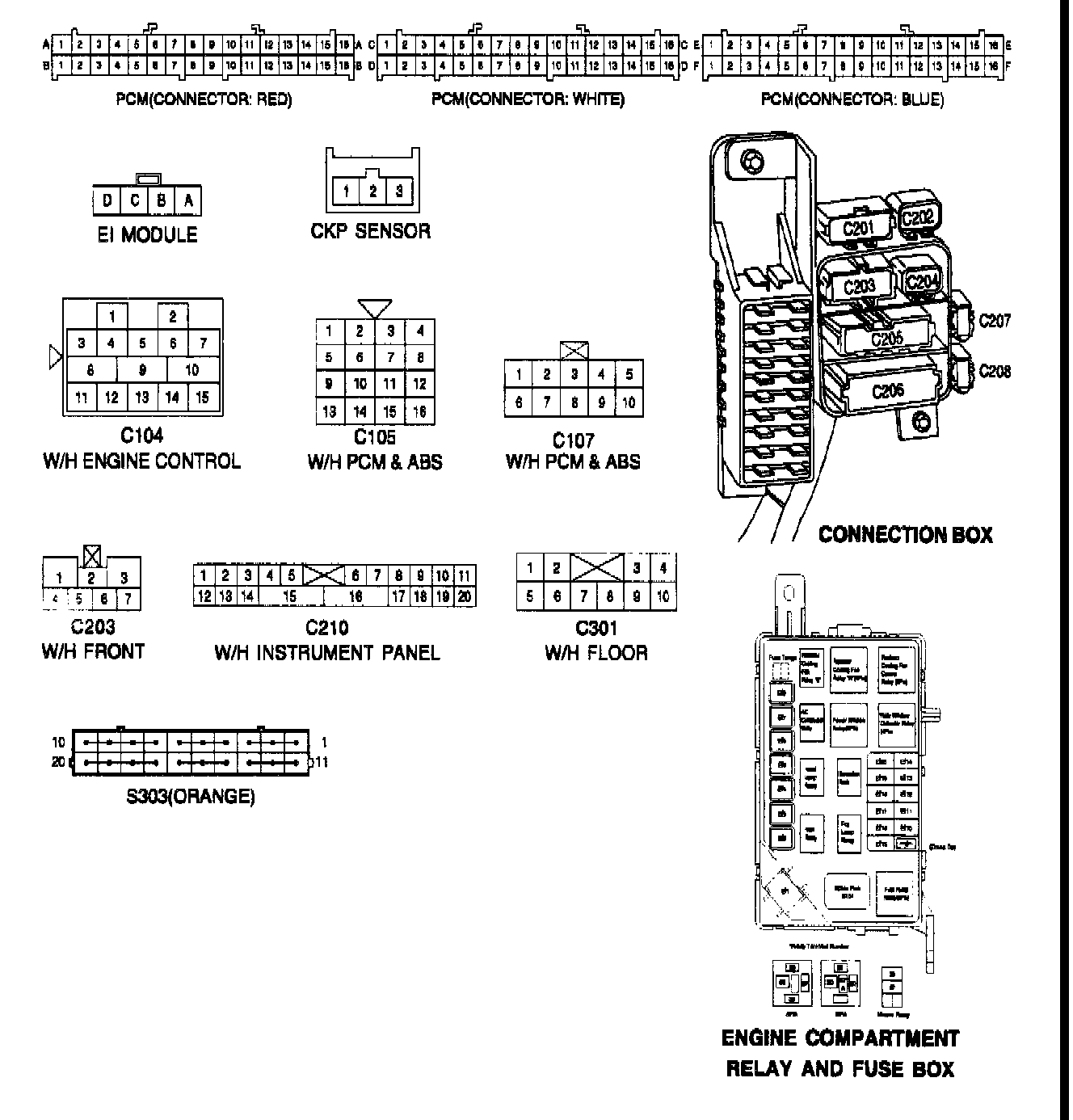

Connector Identification Symbol & Pin Number Position:

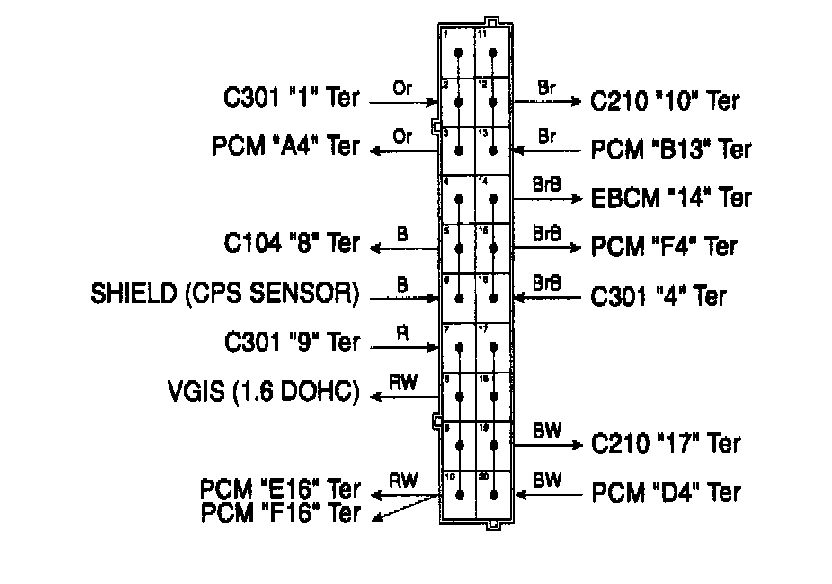

Splice Pack - S303 (Orange):
