Radiator Cooling Fan Motor
>>
Cooling Fan Circuit (with A/C)
Cooling Fan Circuit (with A/C)

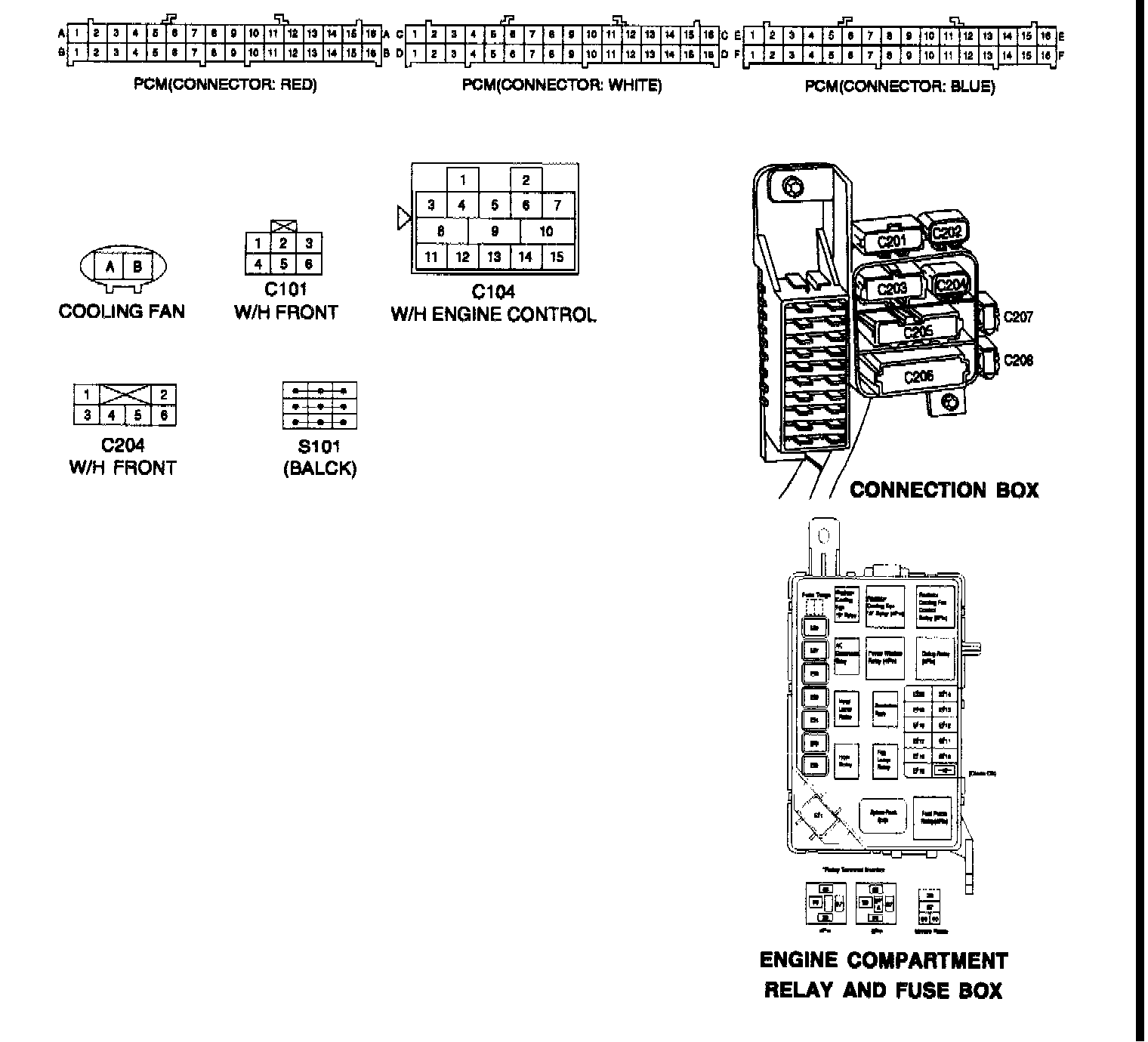

Connector Identification Symbol & Pin Number Position:

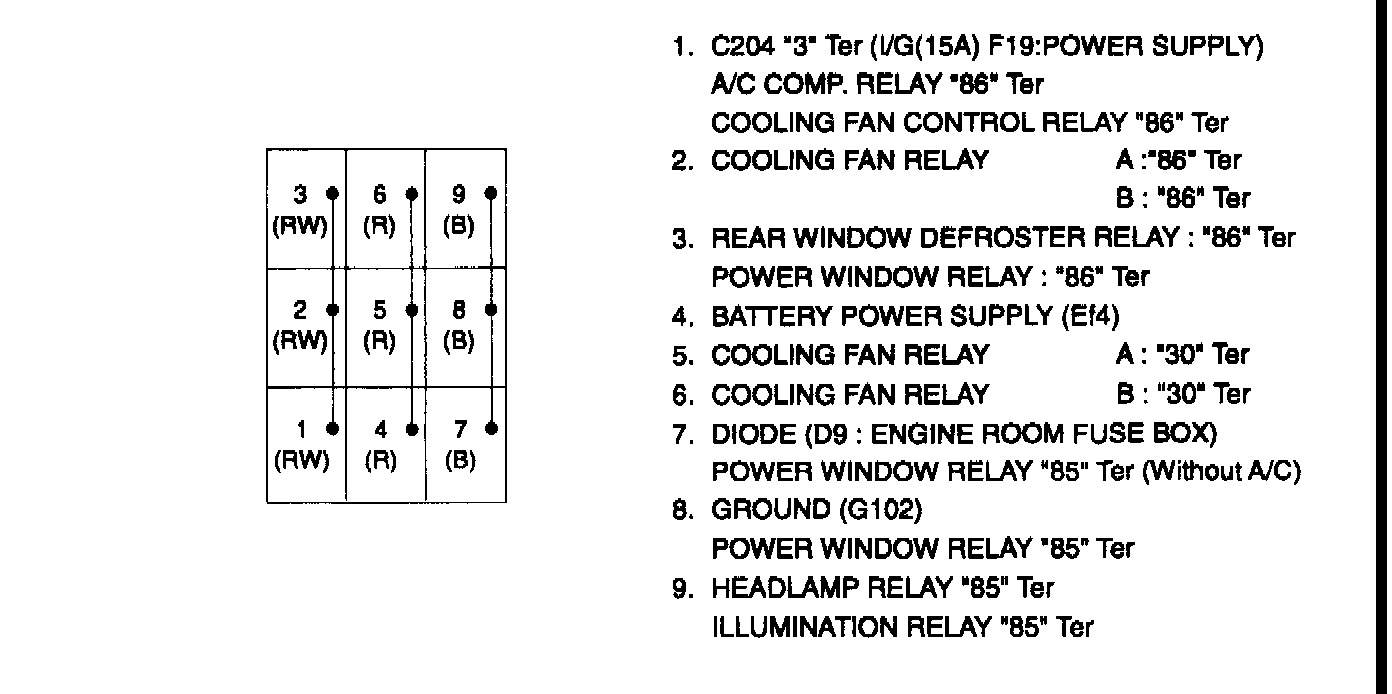

Splice Pack - S101 (Black):
