Home >> Daewoo >> 2000 >> Lanos SX Sedan L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Wiring Schematic

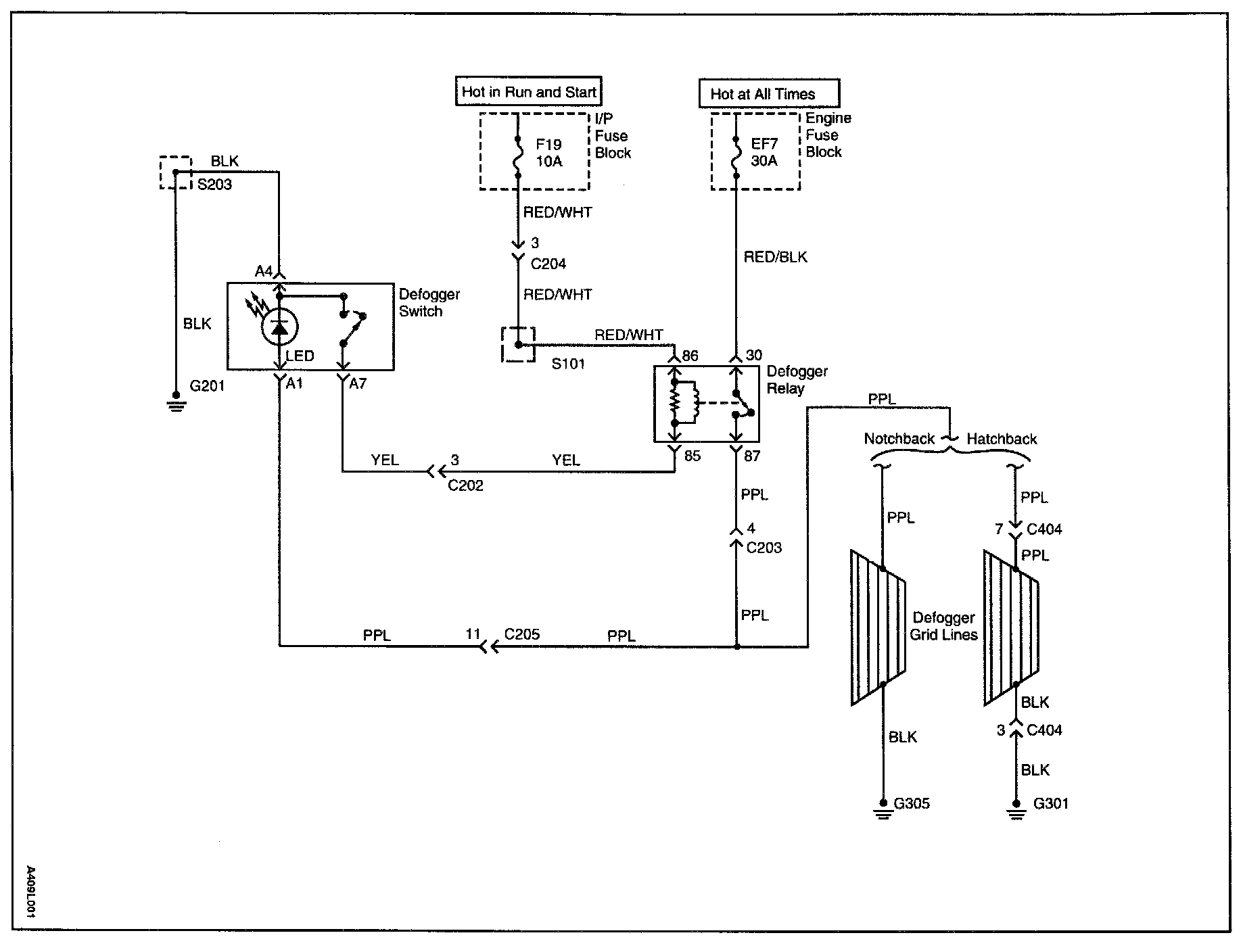

Wiring Schematic

Rear Window Defogger:
