Keyless Entry
Keyless Entry

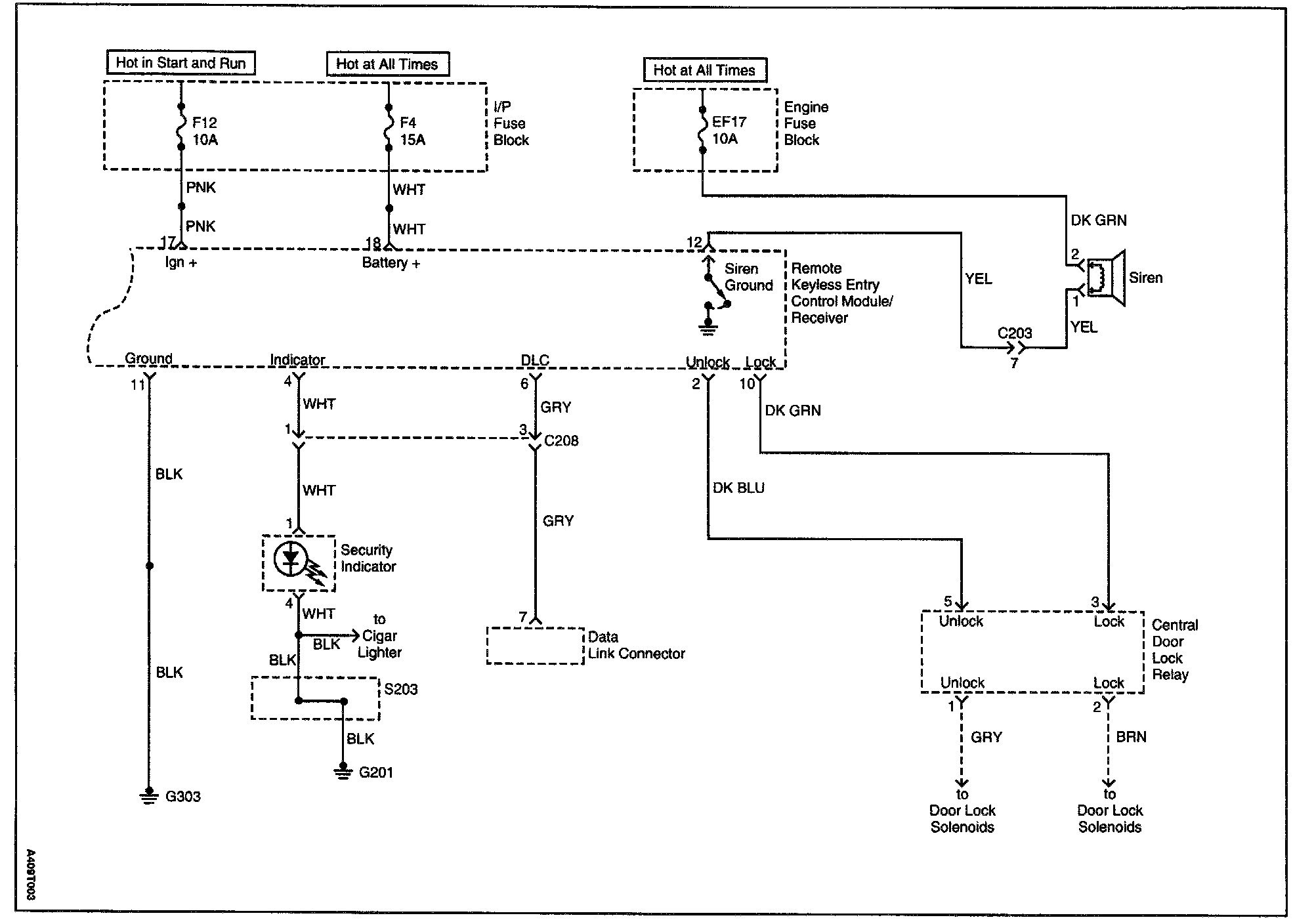

Remote Keyless Entry And Anti-Theft System (1 0f 3):

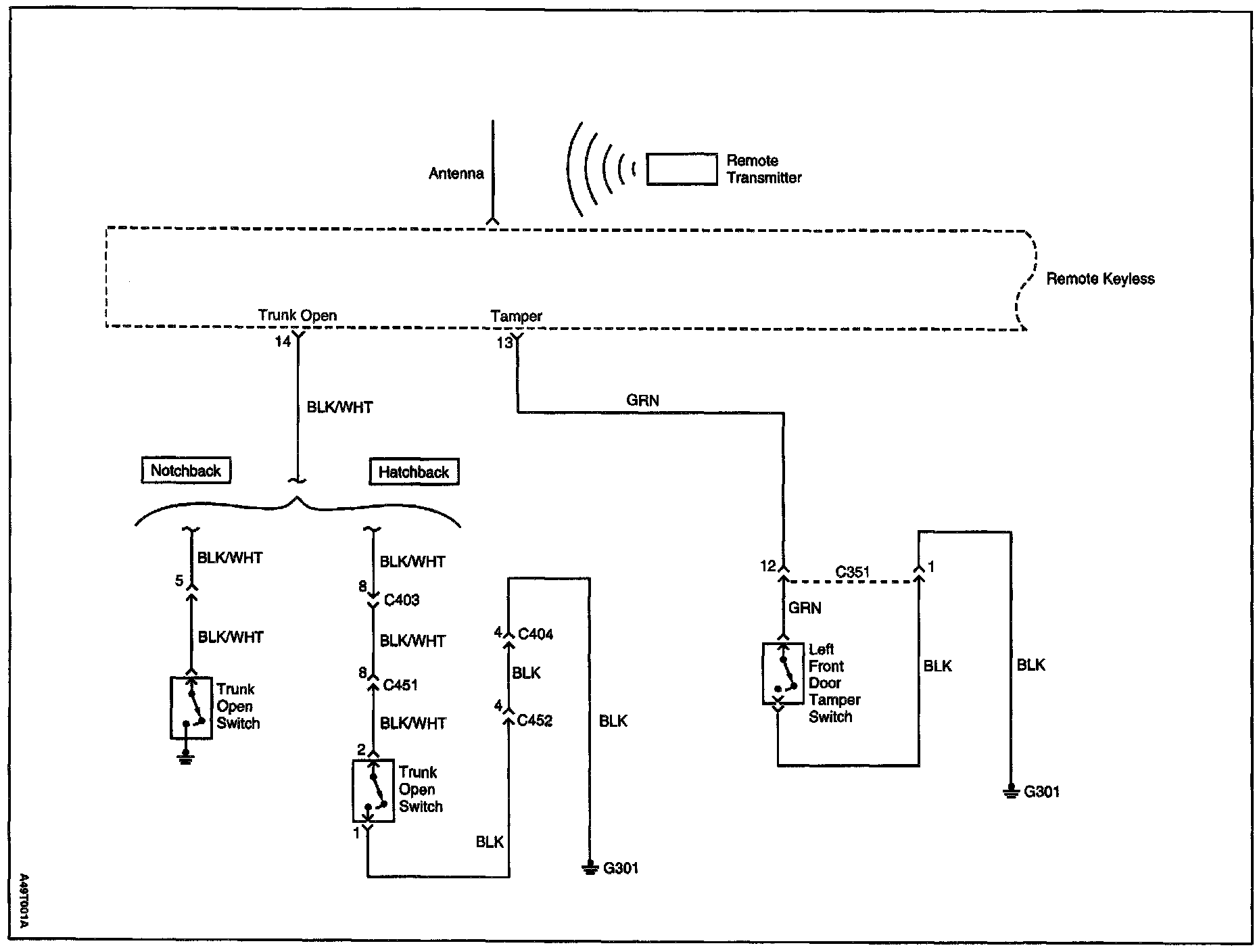

Remote Keyless Entry And Anti-Theft System (2 0f 3):

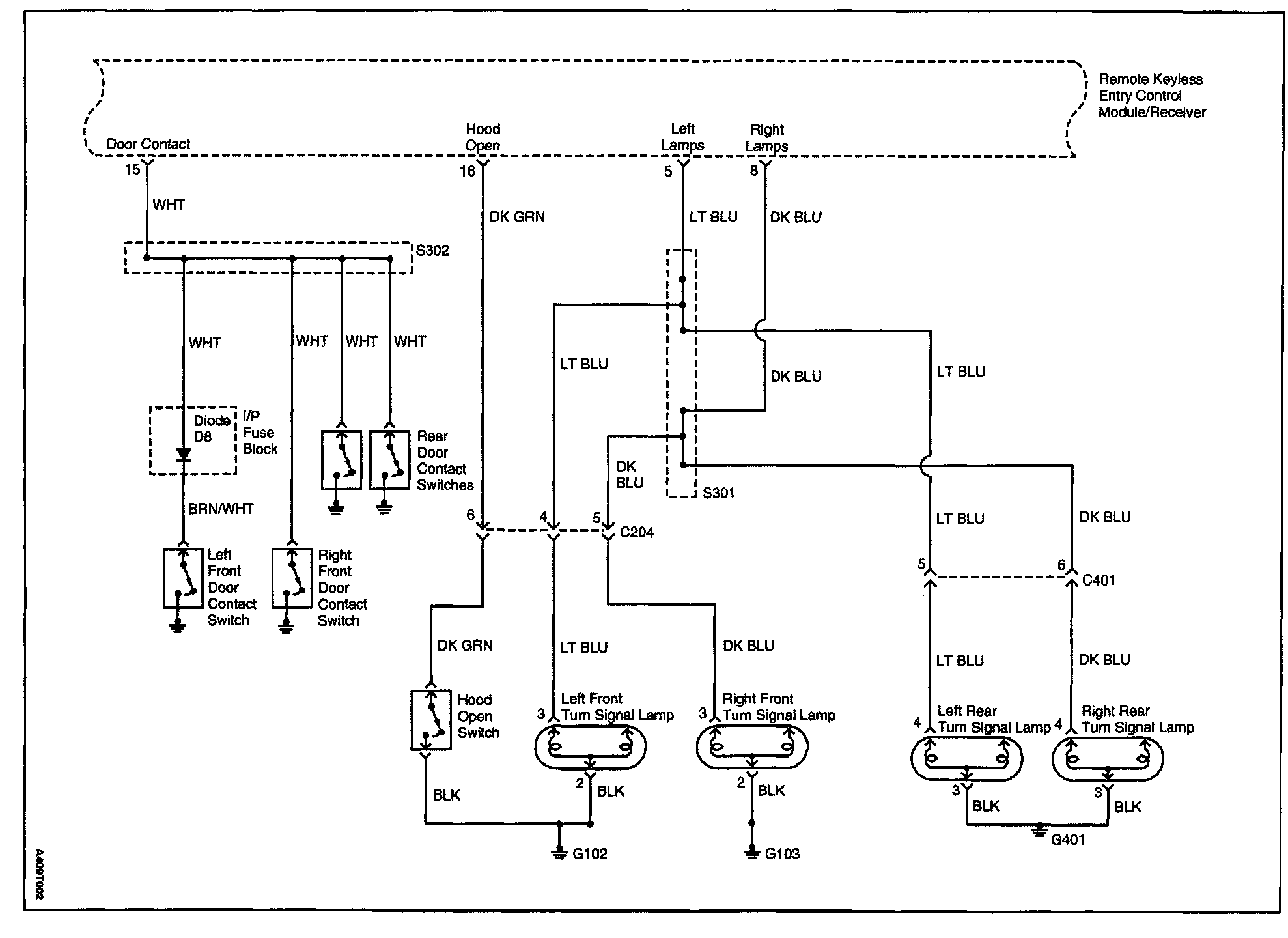

Remote Keyless Entry And Anti-Theft System (3 0f 3):
