Radio/Stereo

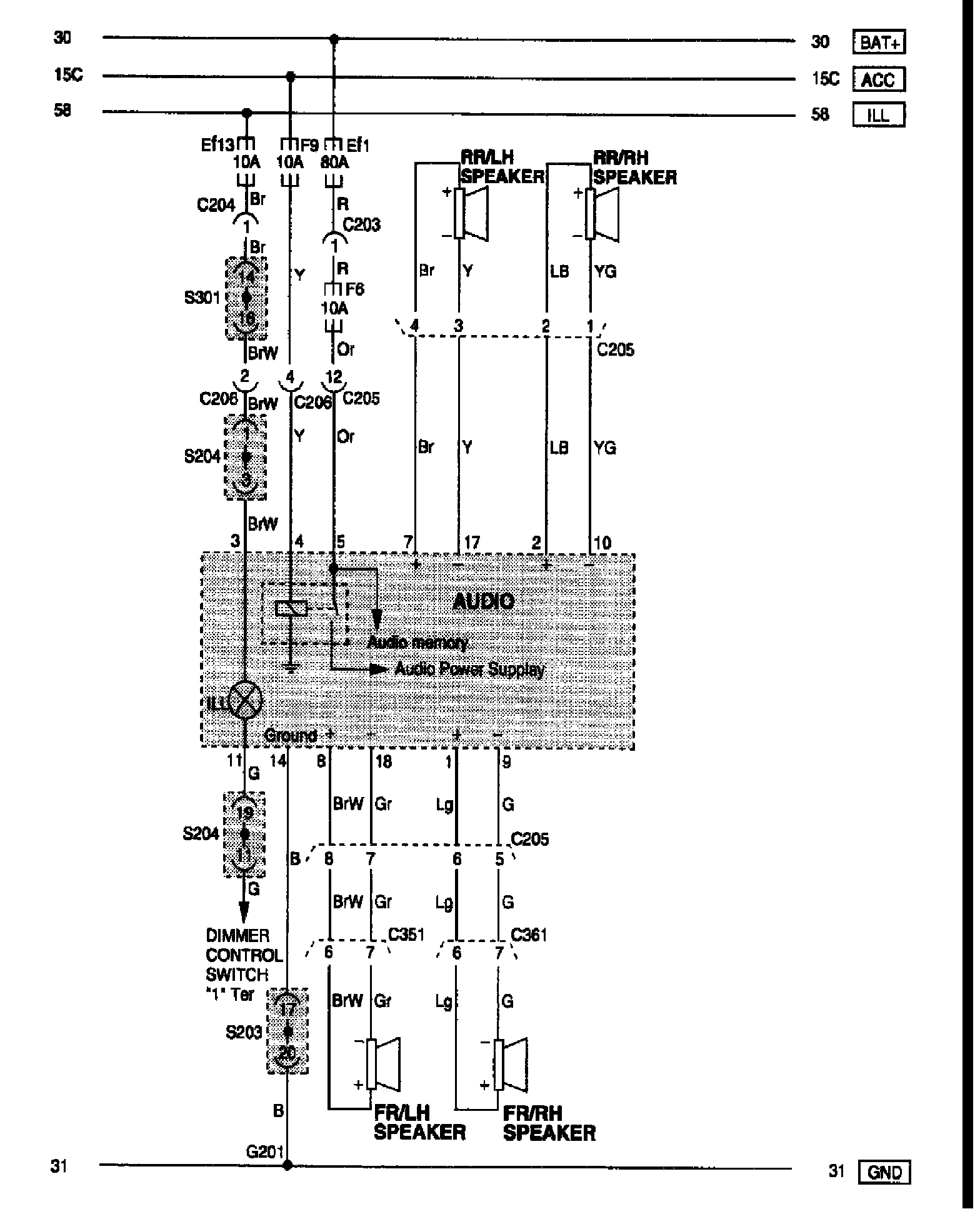

Wiring Diagram:

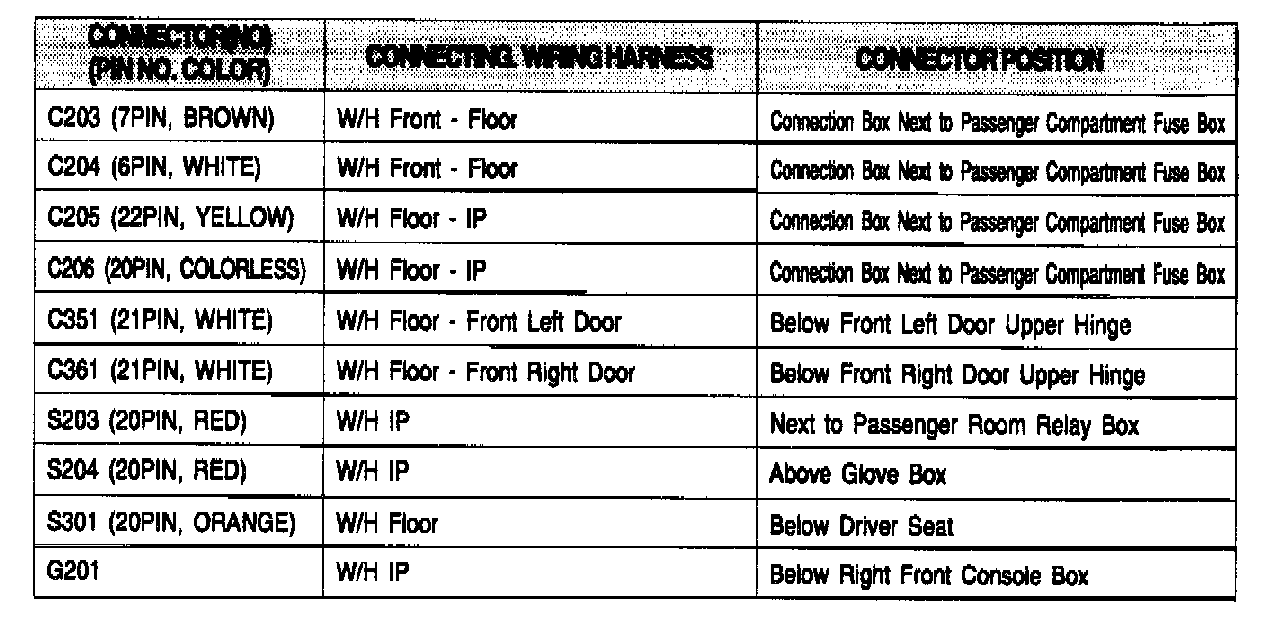

Connector Information:

Connector Identification Symbol & Pin Number Position:

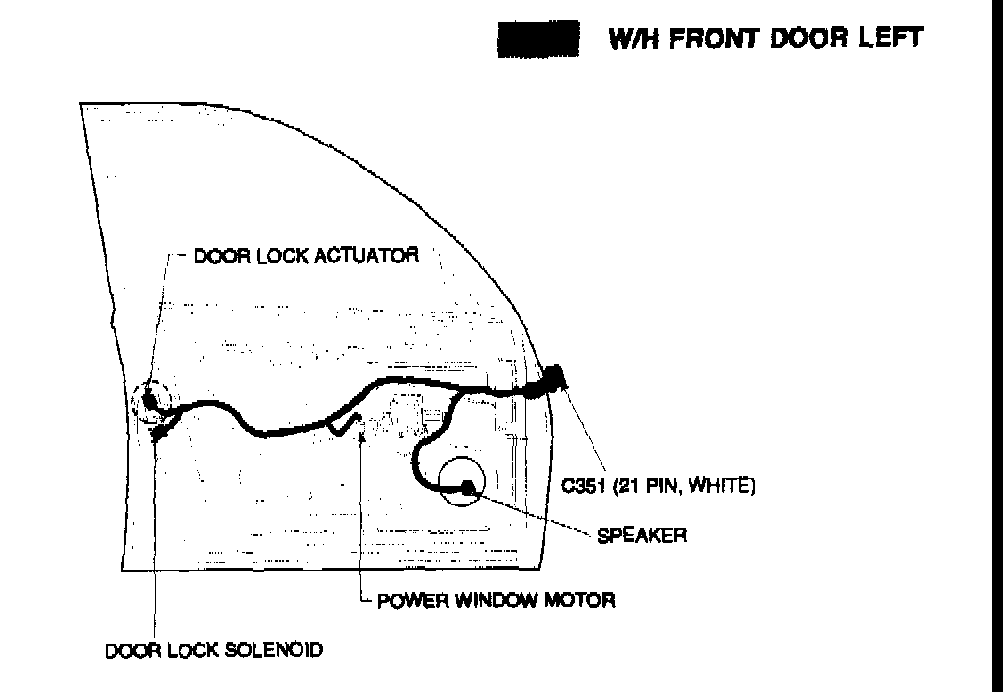

Position Of Connectors And Grounds - Front Door Left:

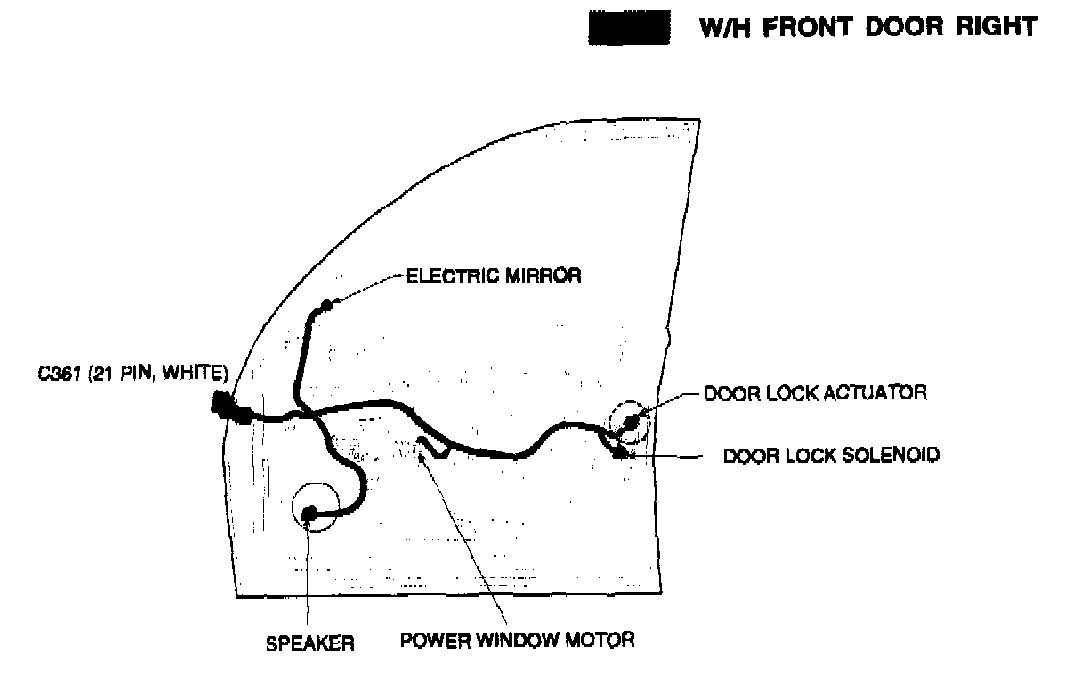

Position Of Connectors And Grounds - Front Door Right:

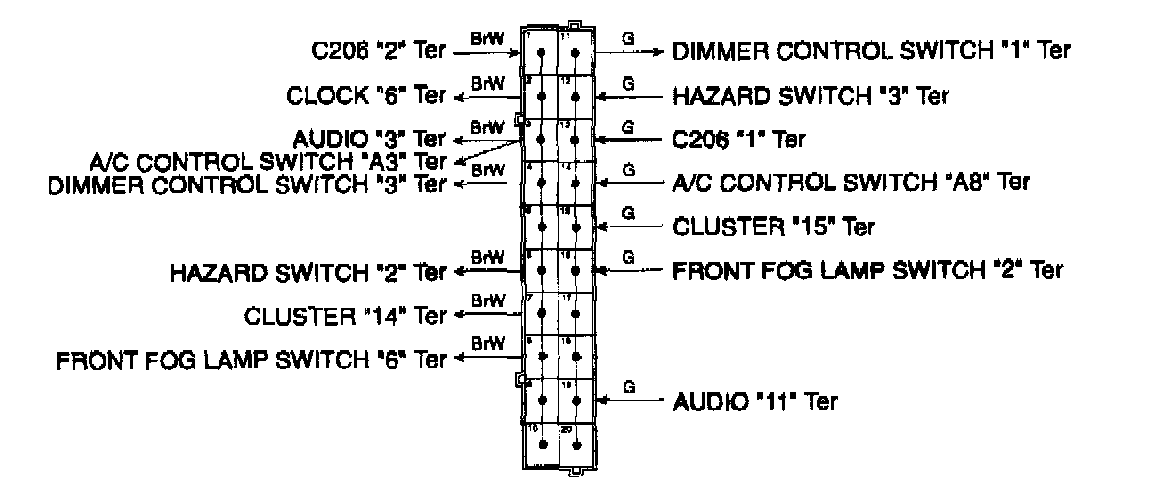

Splice Pack - S203 (Red):

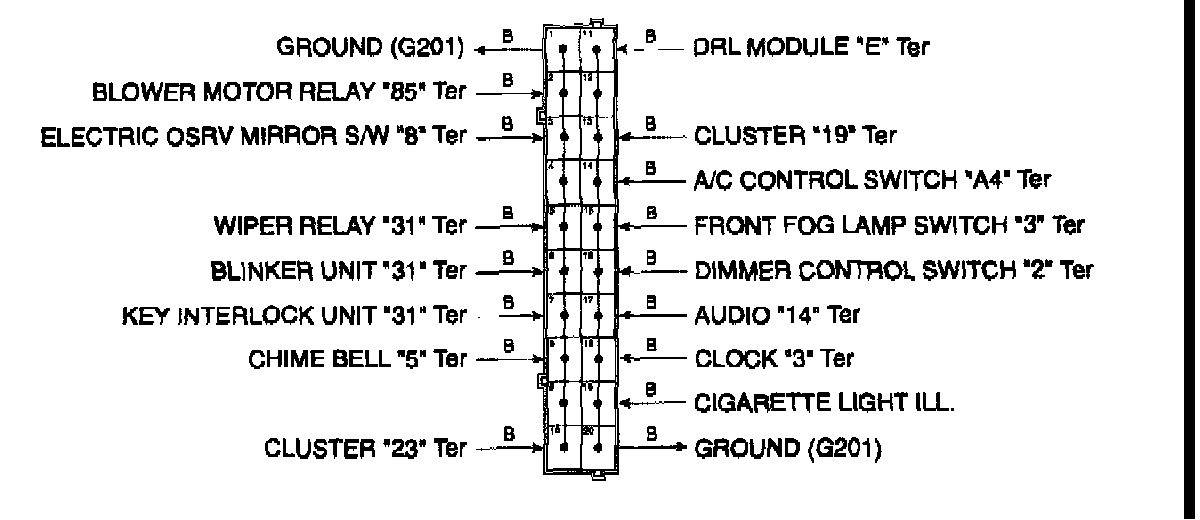

Splice Pack - S204 (Red):

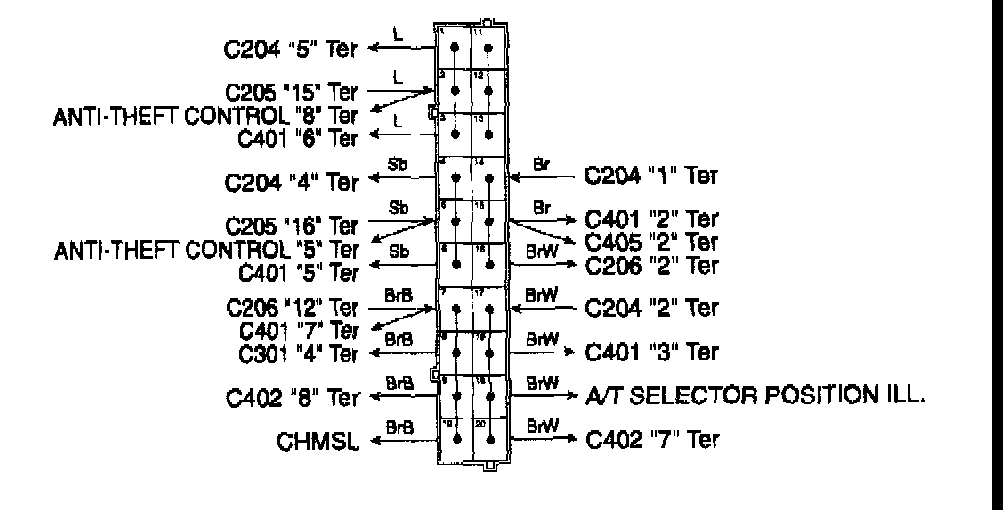

Splice Pack - S301 (Orange) - Notch Back:
