Lanos SX Sedan L4-1.6L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

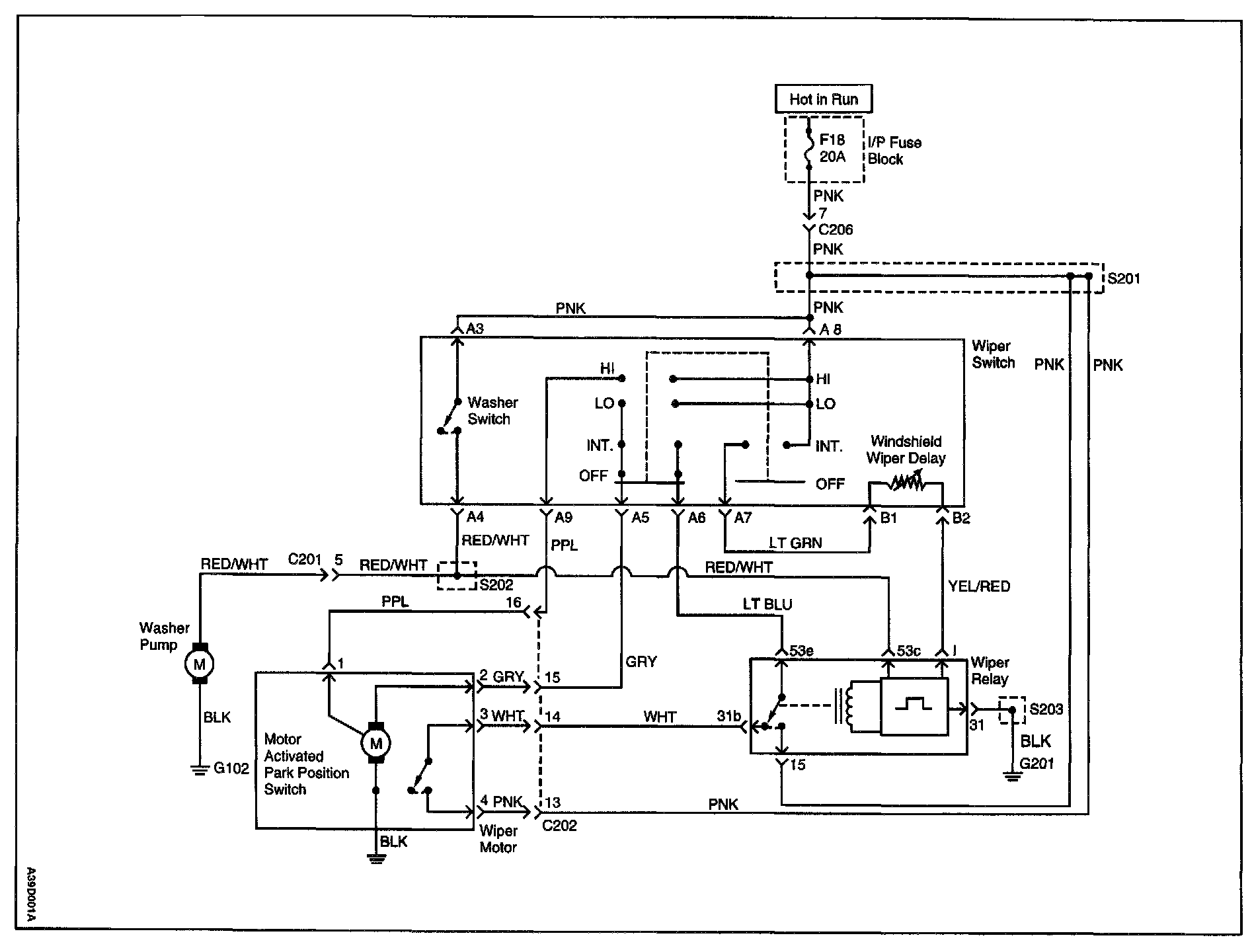

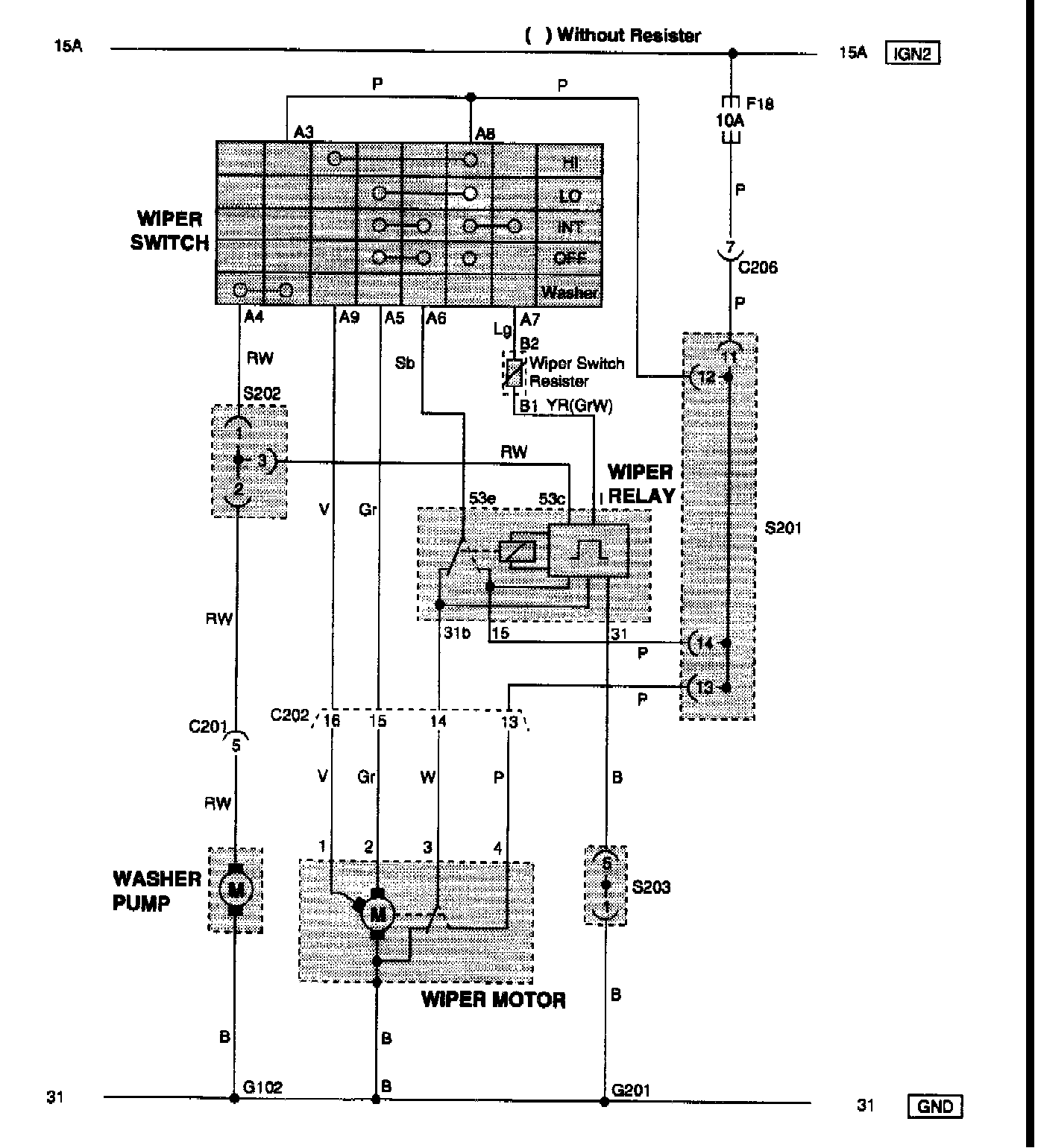

Wiring Diagram:
Windshield Wipers And Washer System:
