Timing Components: Service and Repair

REAR TIMING BELT COVER

Removal Procedure
1. Remove the timing belt and the timing belt cover.
2. Remove the camshaft gears. Refer to "Camshaft Gears".





3. Remove the crankshaft gear.
4. Remove the timing belt automatic tensioner bolts.

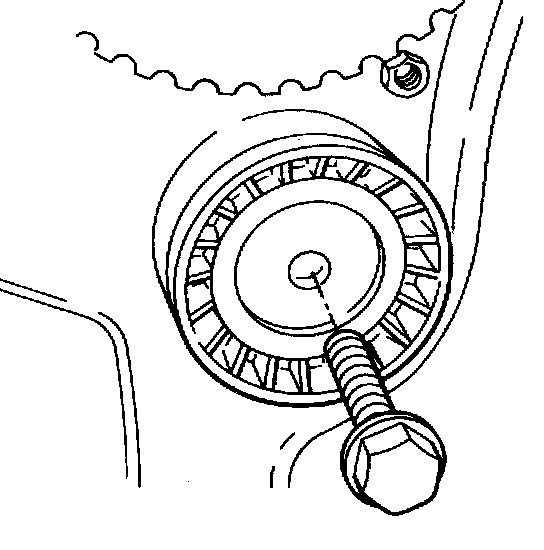

5. Remove the timing belt automatic tensioner.





6. Remove the timing belt idler pulley bolt.

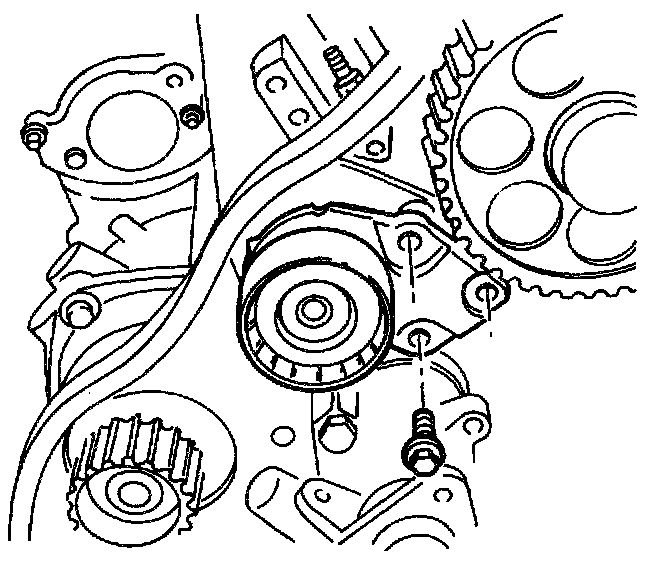

7. Remove the timing belt idler pulley.

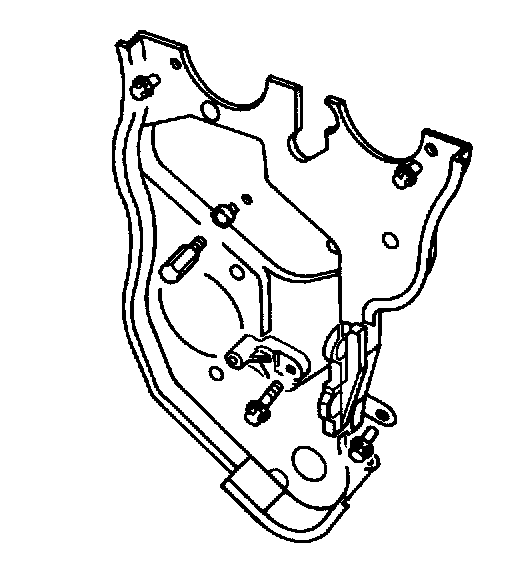

8. Remove the rear timing belt cover bolts.
9. Remove the rear timing belt cover.

Installation Procedure





1. Install the rear timing belt cover.
2. Install the rear timing belt cover bolts.
Tighten the rear timing belt cover bolts to 10 Nm (89 inch lbs.).

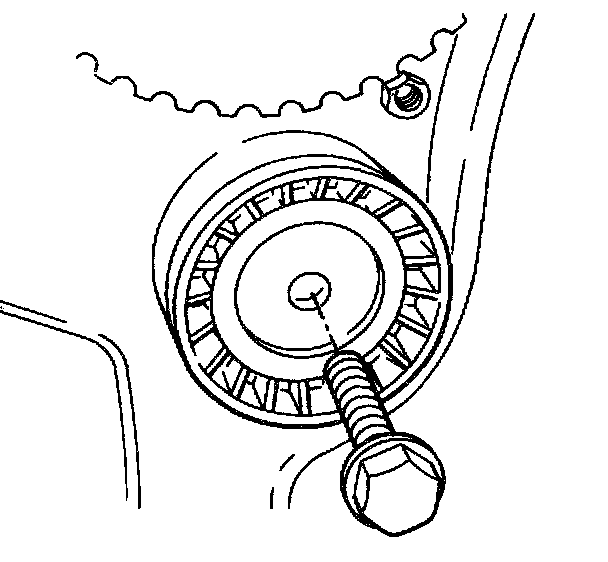

3. Install the timing belt idler pulley.
4. Install the timing belt idler pulley bolt.
Tighten the timing belt idler pulley bolt to 40 Nm (30 ft. lbs.).

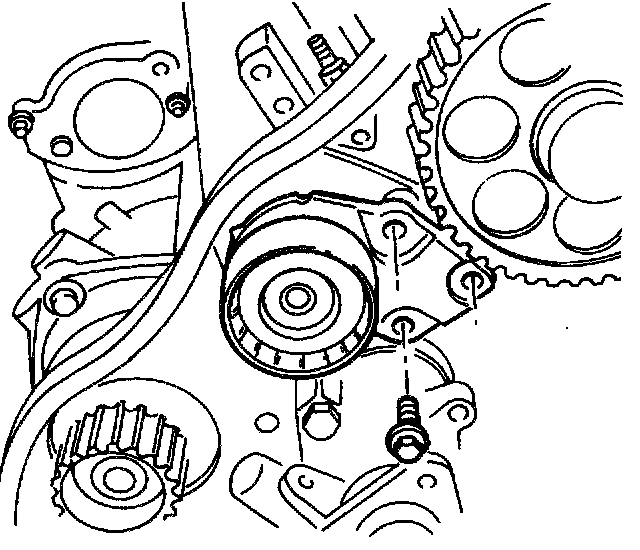

5. Install the timing belt automatic tensioner.
6. Install the timing belt automatic tensioner bolts.
Tighten the timing belt automatic tensioner bolts to 25 Nm (18 ft. lbs.).
7. Install the crankshaft gear.
8. Install the camshaft gears. Refer to "Camshaft Gears".
9. Install the timing belt and timing belt cover.
