Connector Locations

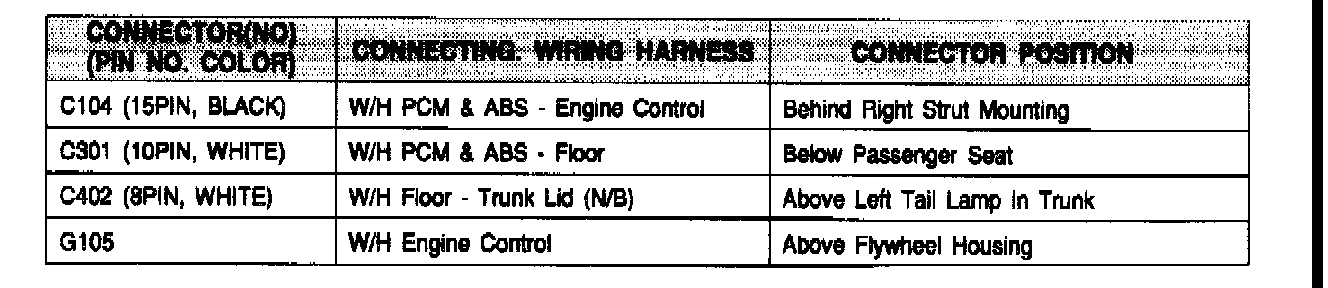

Connector Information:

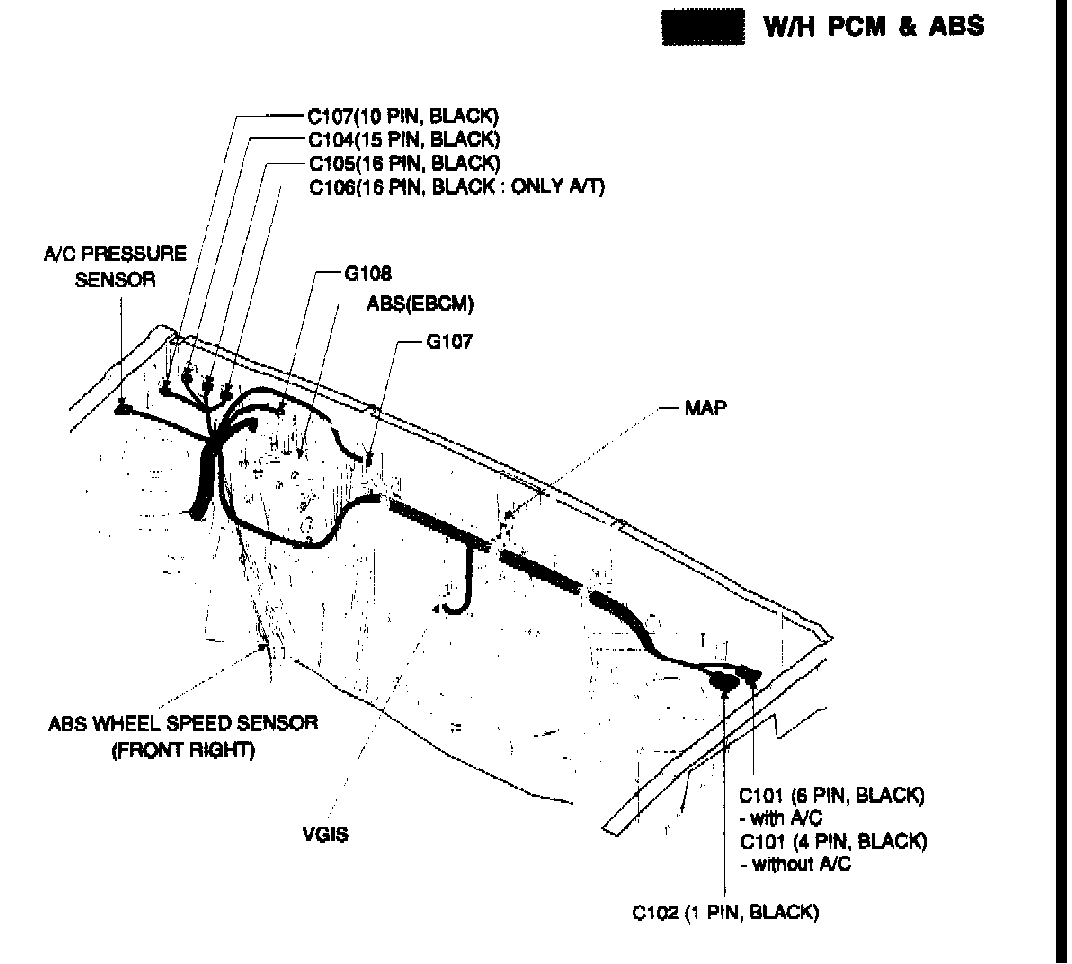

Position Of Connectors And Grounds - Engine Compartment Inside:

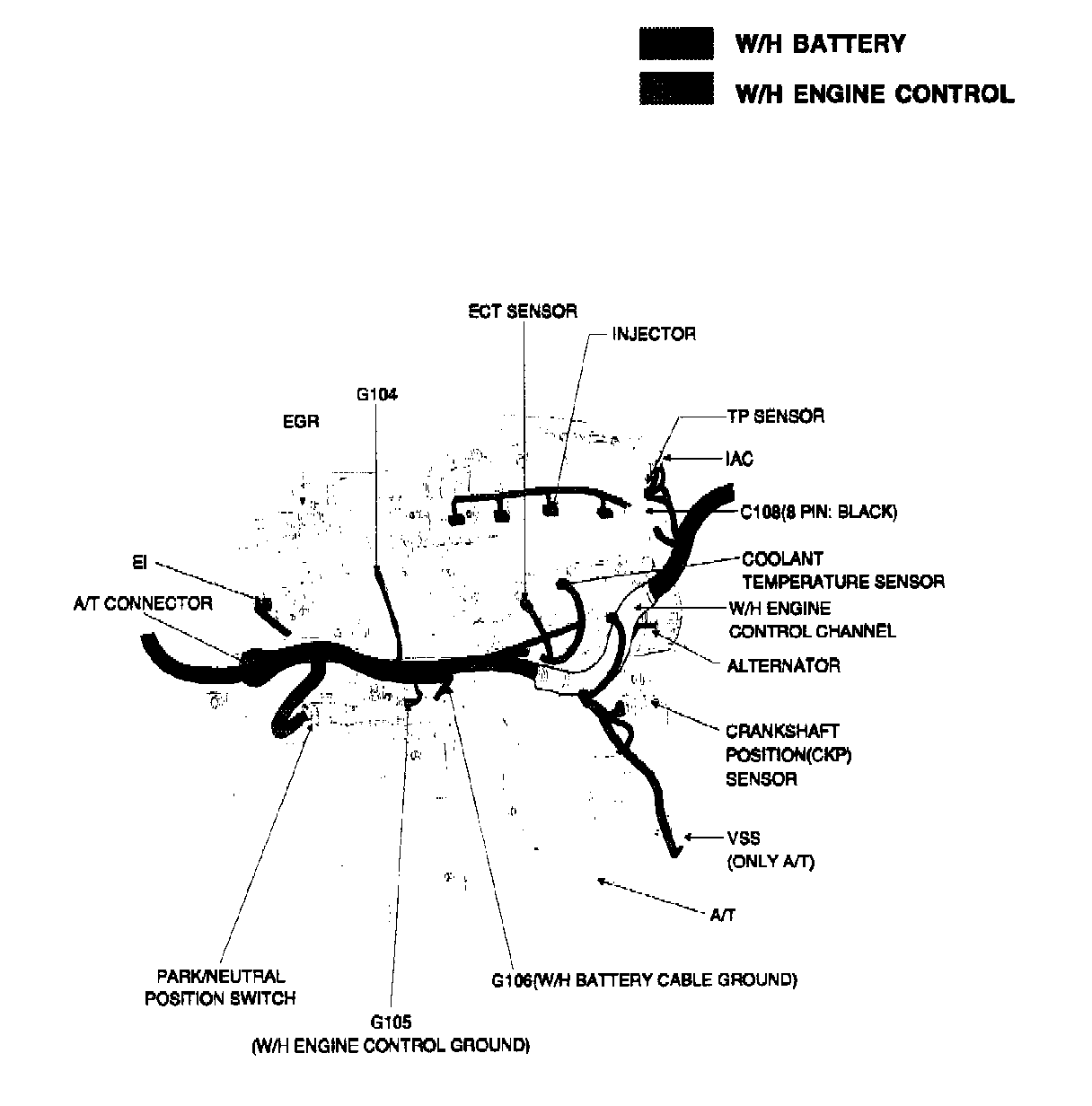

Position Of Connectors And Grounds - DOHC Engine:
