Home >> Daewoo >> 2000 >> Lanos SX Sedan L4-1.6L DOHC D-TEC MFI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Instruments

Instruments

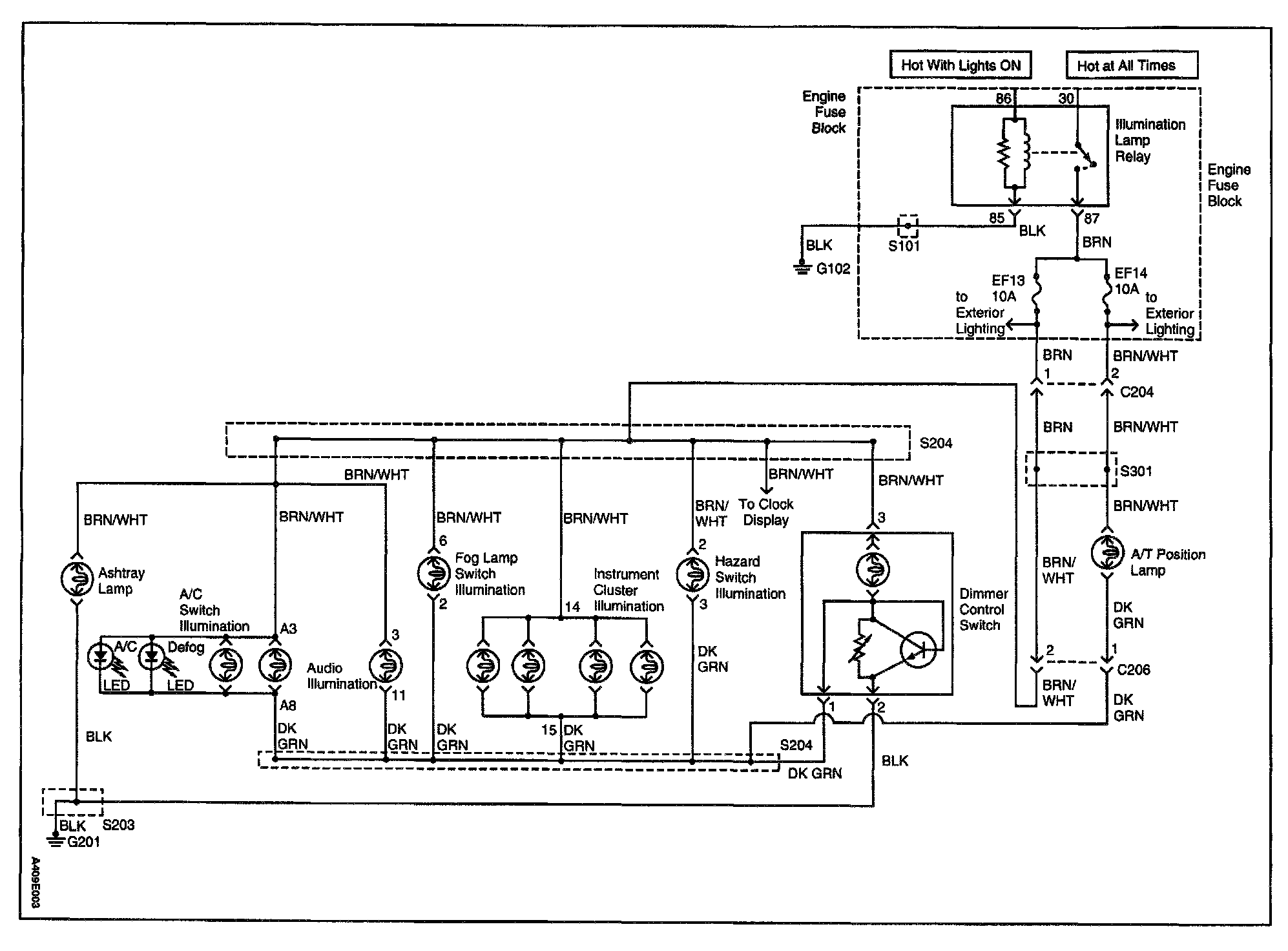

Instruments Circuit:
