Malfunction Indicator Lamp, Engine Hot Indicator & DLC Circuits
Connector Identification Symbol & Pin Number Position:

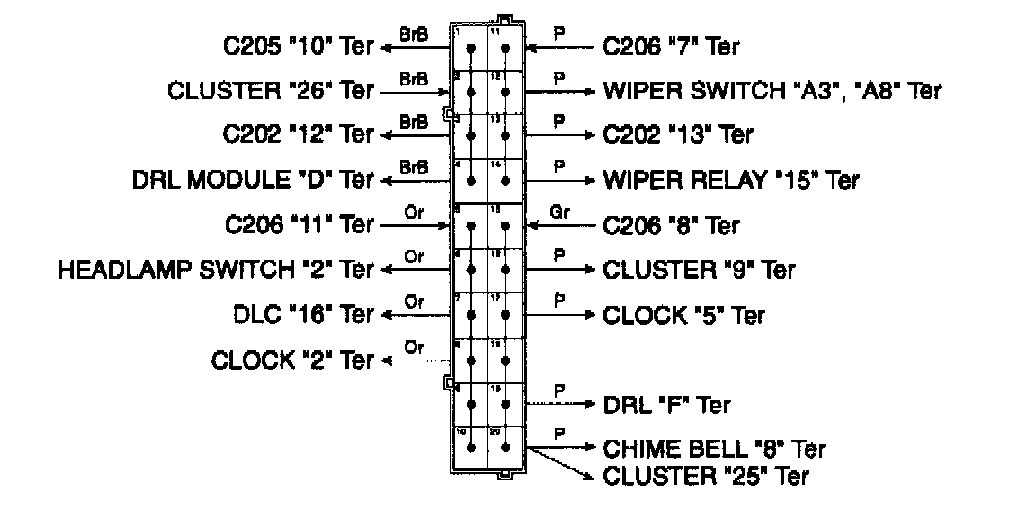

Splice Pack - S201 (Blue):

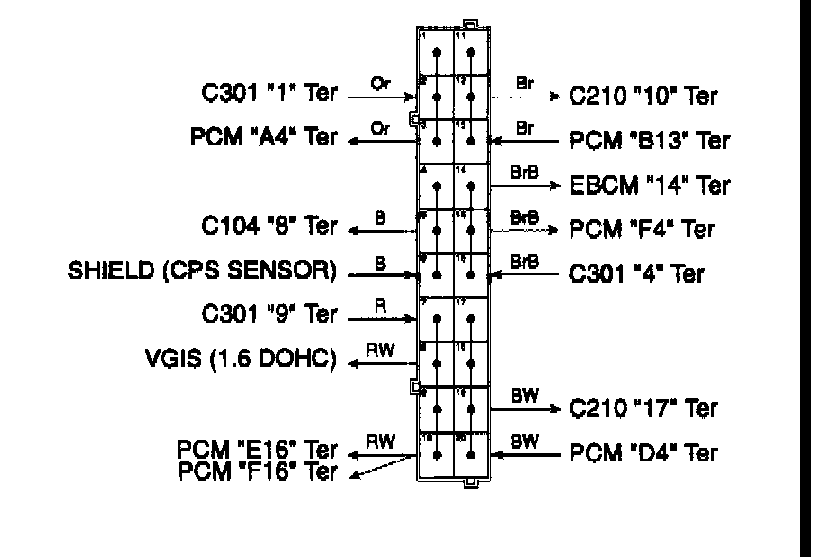

Splice Pack - S303 (Orange):
