Sensors (CMP, O2S), VGIS, EVAP Diag & Canister Purge Solenoid
Sensors (CMP, O2S), VGIS, EVAP Diag & Canister Purge Solenoid

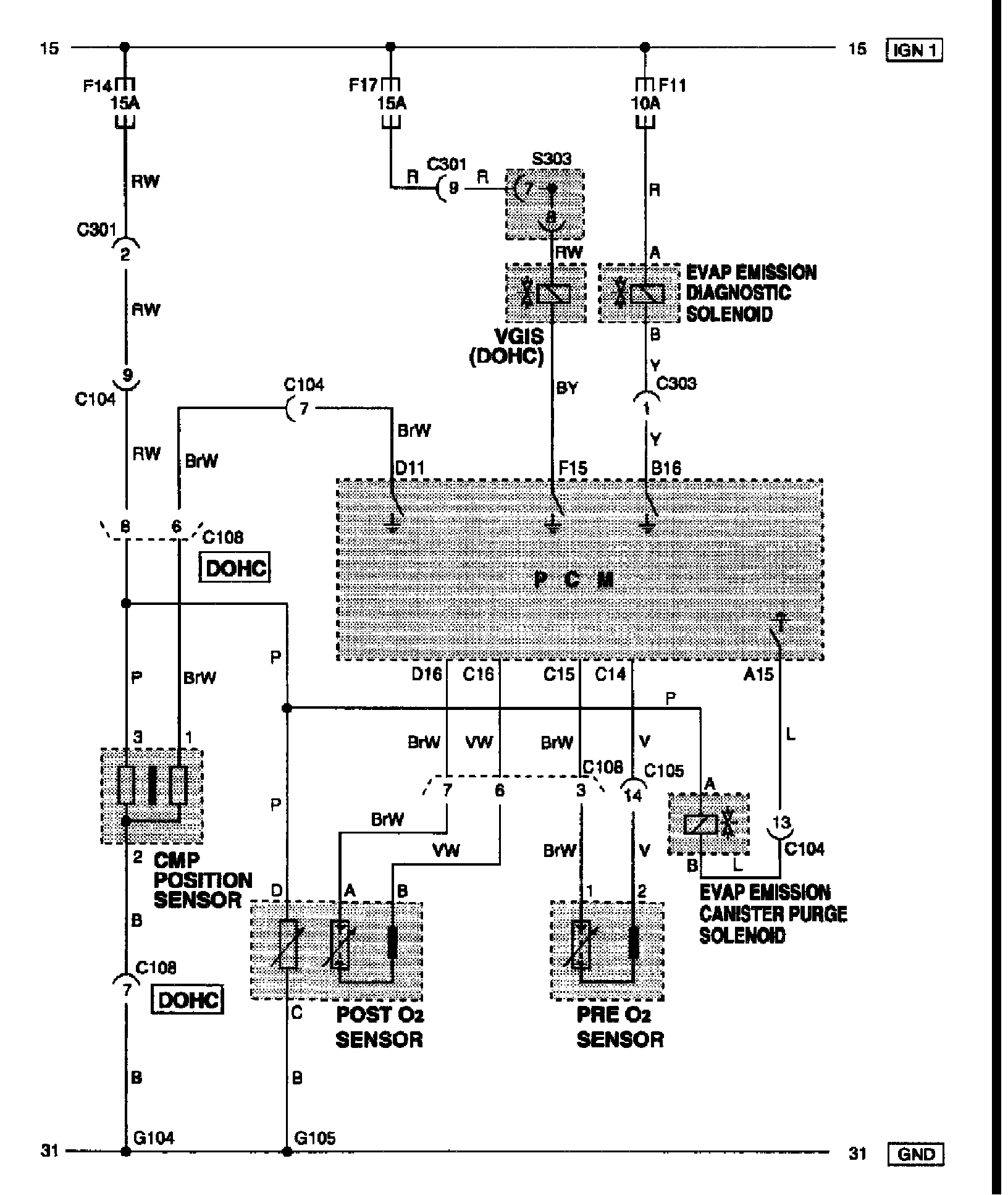

Wiring Diagram:
