Door Locks: Service and Repair

(Front Door Shown, Rear Door Similar)

Removal Procedure




1. Remove the door seal trim.
2. Remove the inside door handle.

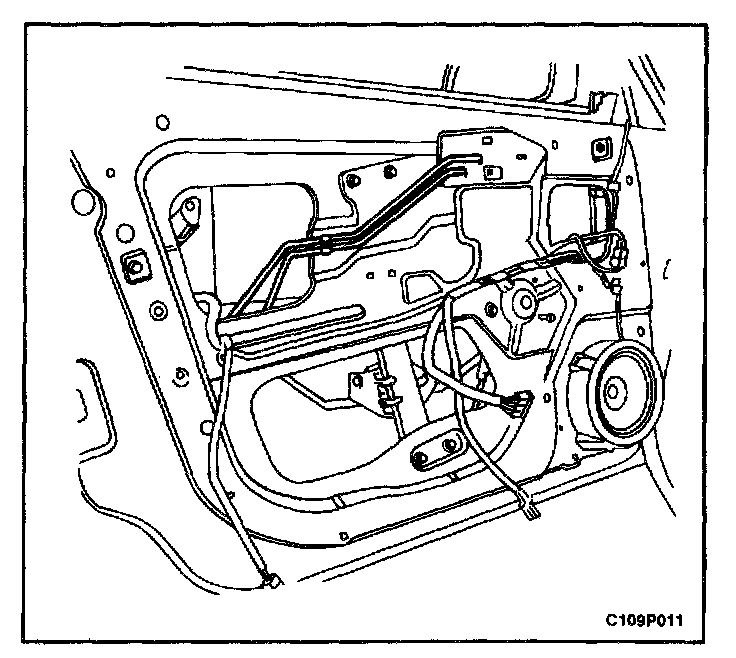

3. Disconnect the inside lock rods from the lock.

Installation Procedure

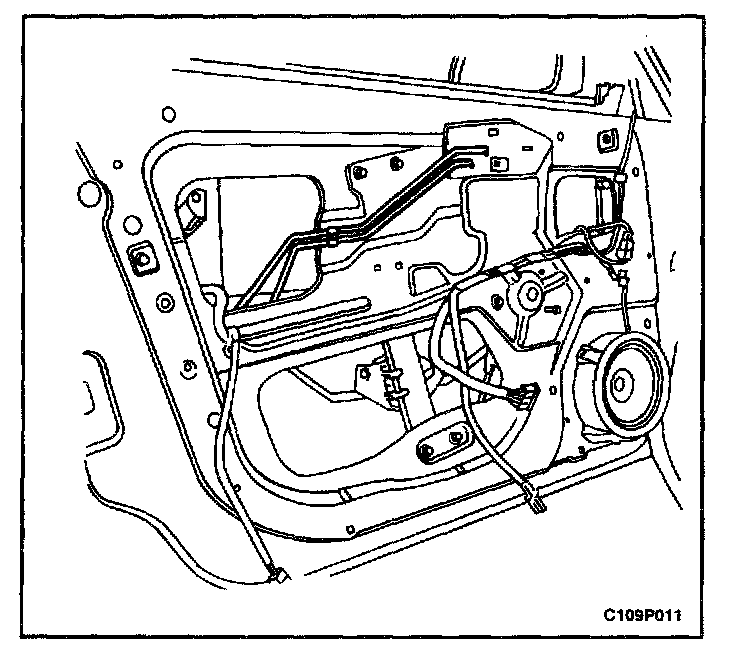

1. Connect the inside lock rods to the lock.
2. Install the inside door handle.
3. Install the door seal trim.
