Outside Rearview Mirrors Removal and Installation

Removal Procedure

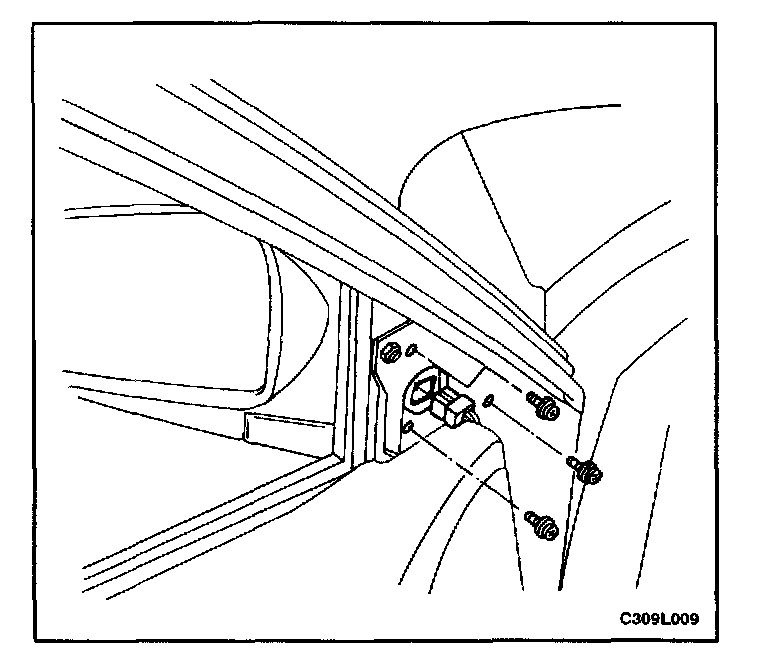

1. Remove the front door escutcheon.
2. Disconnect the mirror electrical connector if the mirror is electronically controlled.
3. Remove the bolts and the outside rearview mirror assembly from the door.


Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

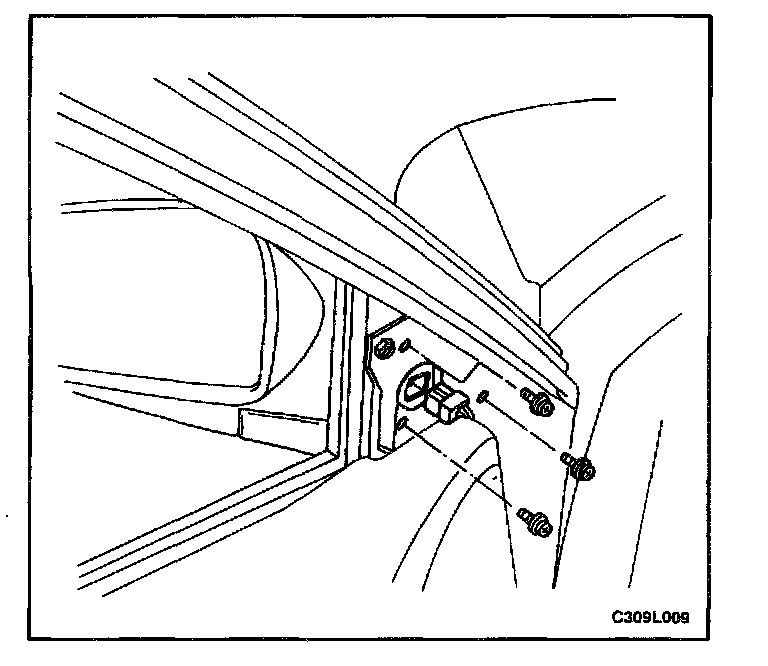

1. Install the outside rearview mirror assembly to the door with the screws.

Tighten
Tighten the outside rearview mirror assembly screws to 6 N.m (53 lb.in).

2. Connect the mirror electrical connector if the mirror is electronically controlled.
3. Install the front door escutcheon.
