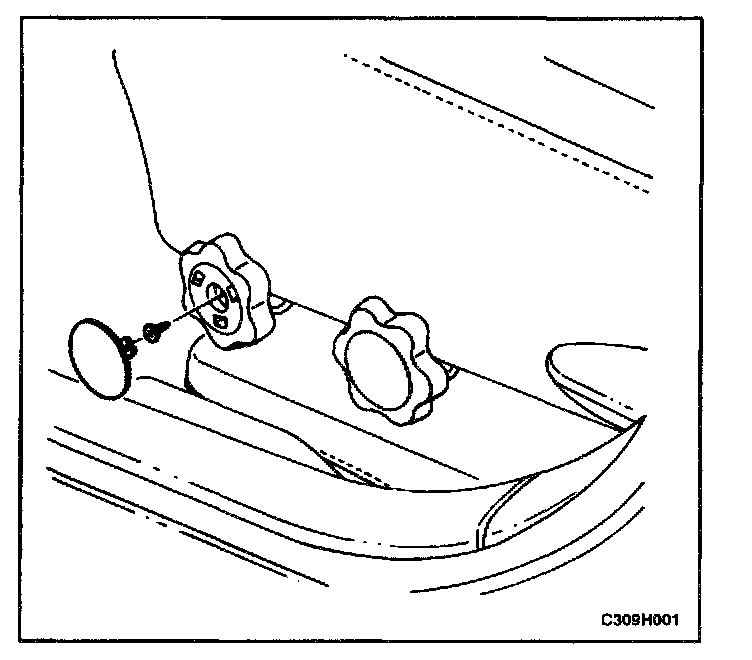

Height Adjustment Knobs

(Front Knob Shown)

Removal Procedure




1. Remove the cap to reveal the screw.
2. Remove the screw and the height adjustment knob

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the height adjustment knob with the screw.

Tighten
Tighten the height adjustment knob screw to 2 N.m (18 lb.in).

2. Install the cap onto the height adjustment knob.
