Rear Seat Center Armrest

Removal Procedure




1. Lower the rear setbacks.
2. Remove the retaining clips and reposition the rear seatback backside cover.

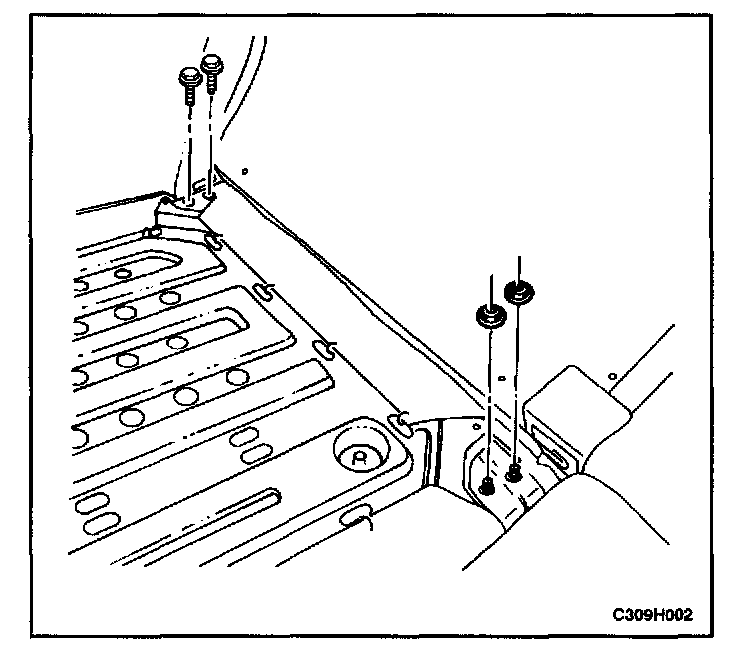

3. Remove the nuts and the armrest.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the armrest with the nuts.

Tighten
Tighten the armrest nuts to 12 N.m (106 lb.in).

2. Install the rear seatback backside cover with the retaining clips.
3. Raise and secure the rear setbacks in the upright position.
