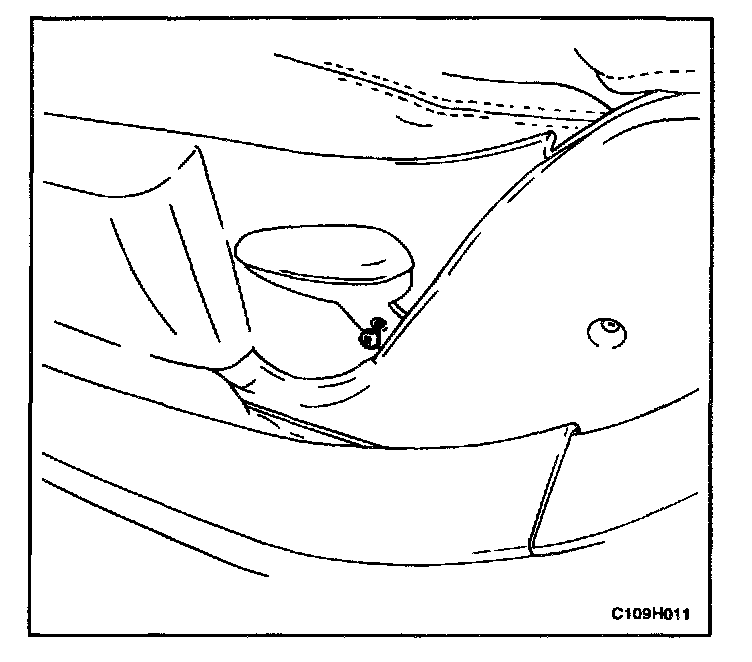

Seat Recliner Lever

(Power Driver Seat Shown, Manual Driver Seat Similar)

Removal Procedure




1. Remove the screw and the seat recliner lever.

Installation Procedure

NOTE: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.




1. Install the seat recliner lever with the screw.

Tighten
Tighten the seat recliner lever screw to 12 N.m (106 lb.in).
