Electronic Brake Control Module

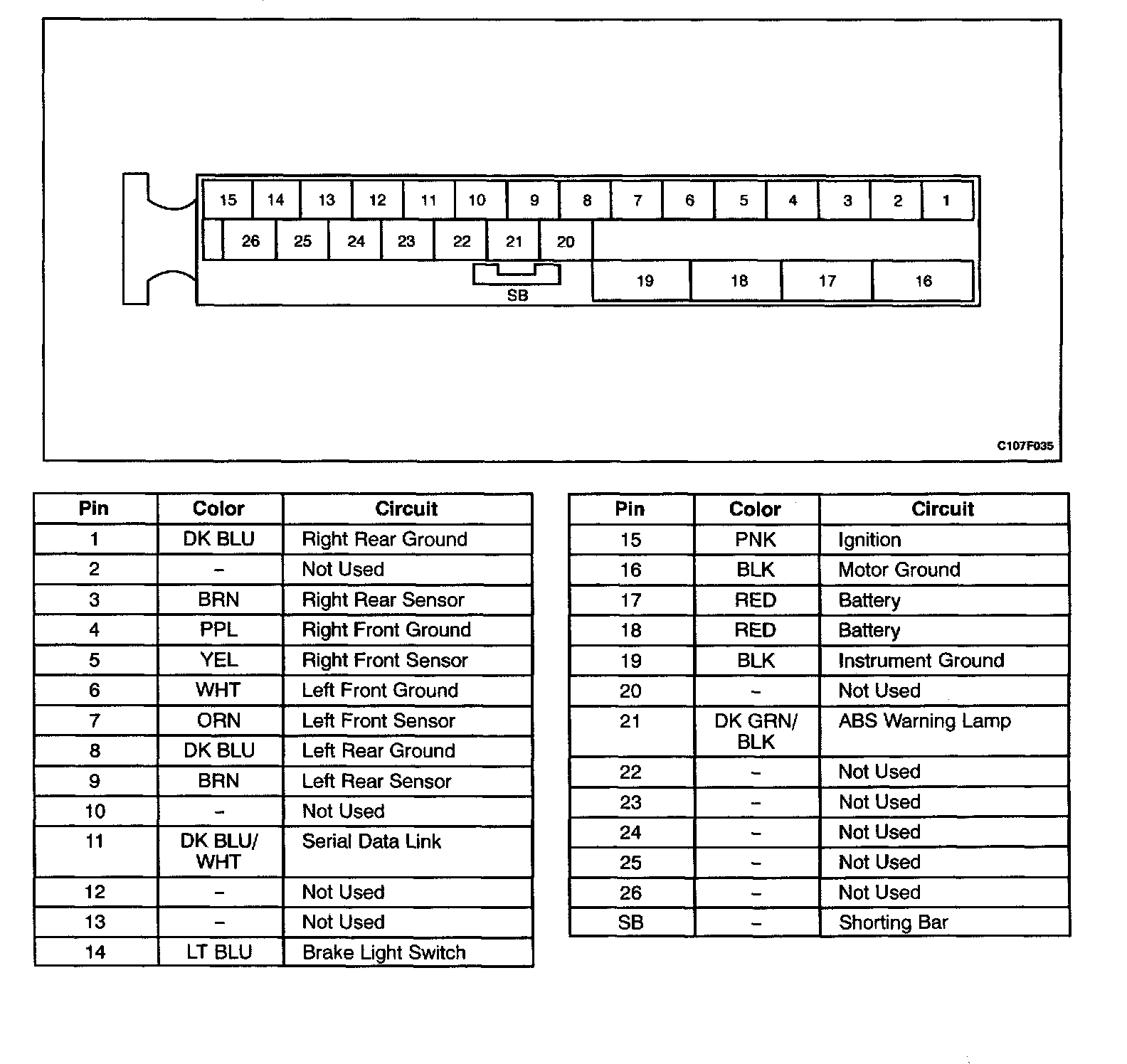

EBCM CONNECTOR FACE VIEW (WITHOUT TRACTION CONTROL SYSTEM)





EBCM CONNECTOR FACE VIEW (WITH TRACTION CONTROL SYSTEM)
