Antitheft and Alarm Systems

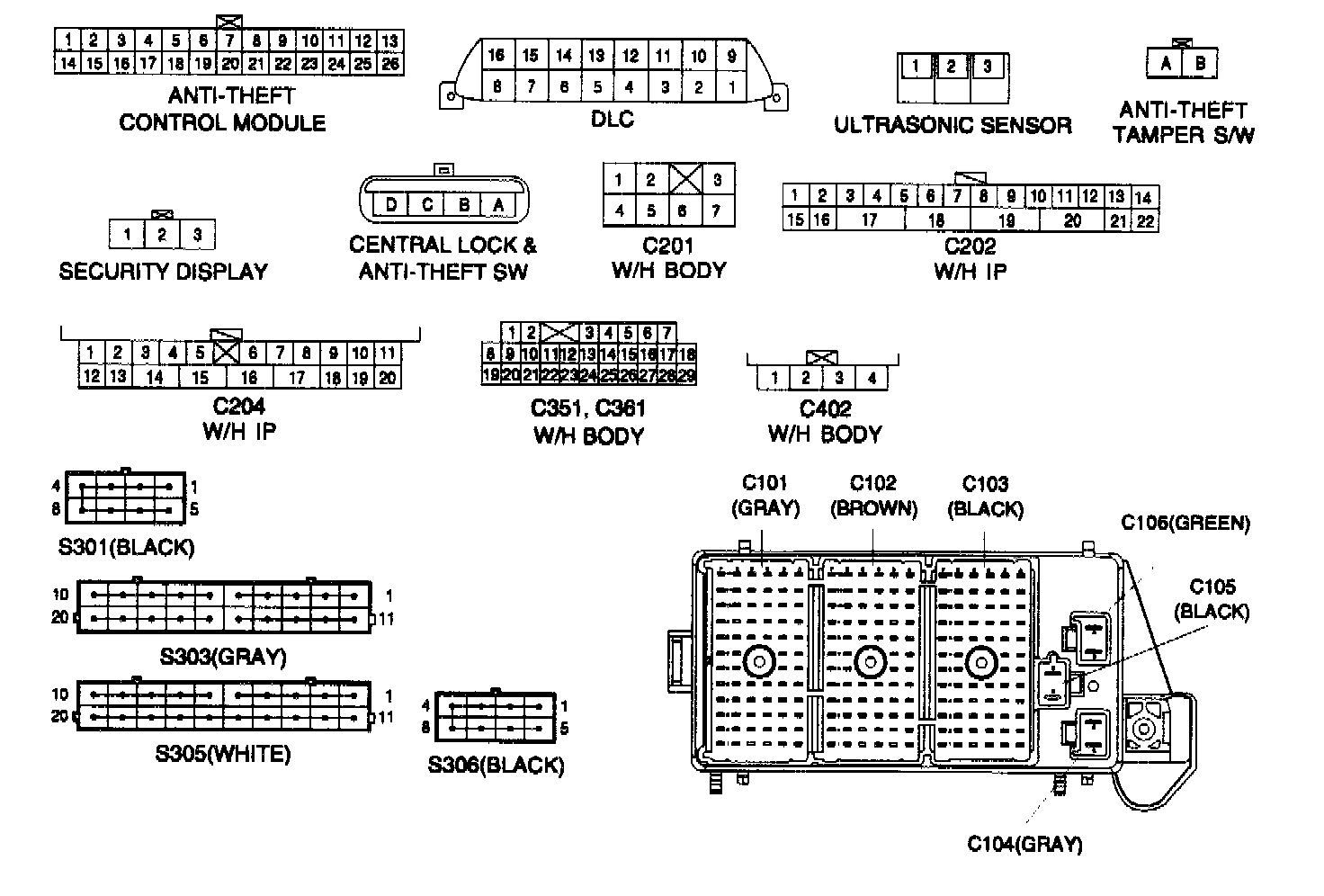

Connector Identification Symbol & PIN Number Position:

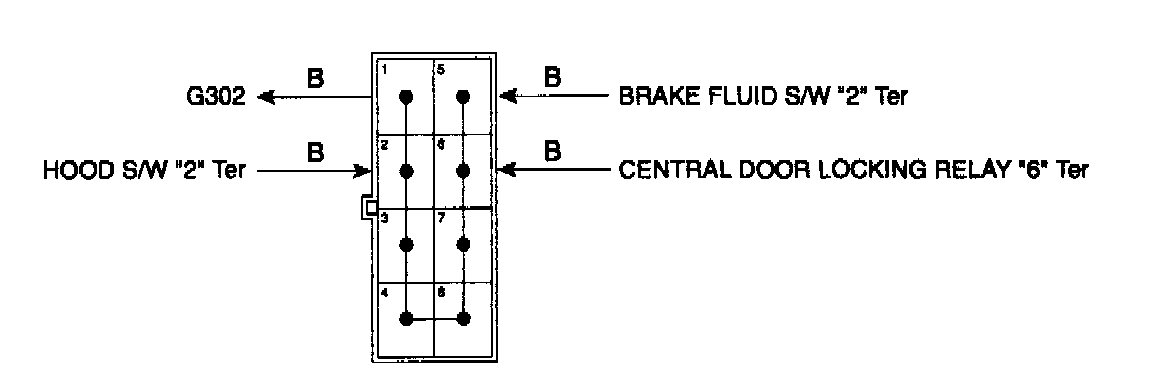

Splice Pack S301 (Black):

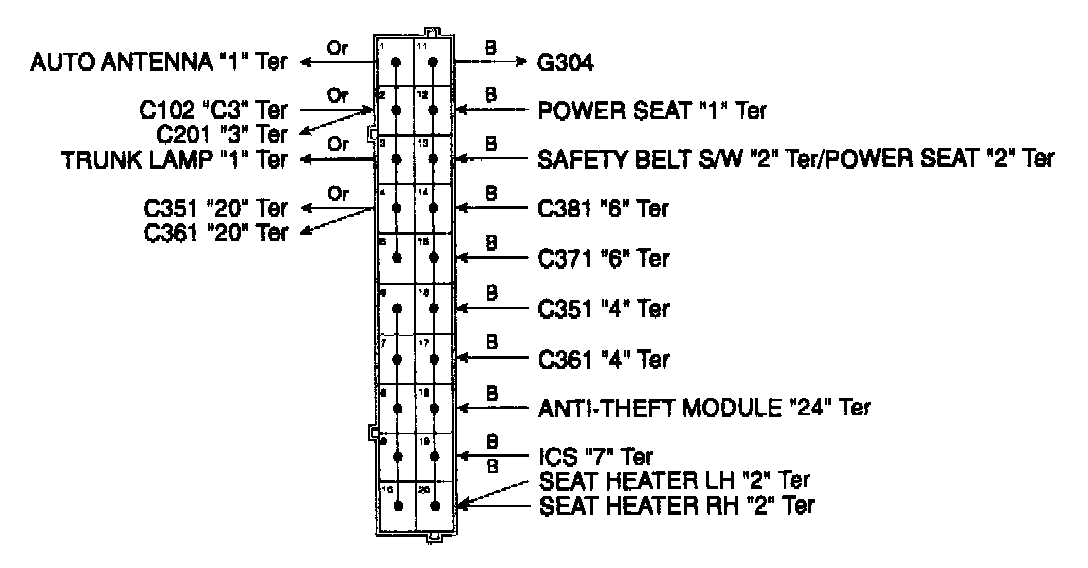

Splice Pack S303 (Gray):

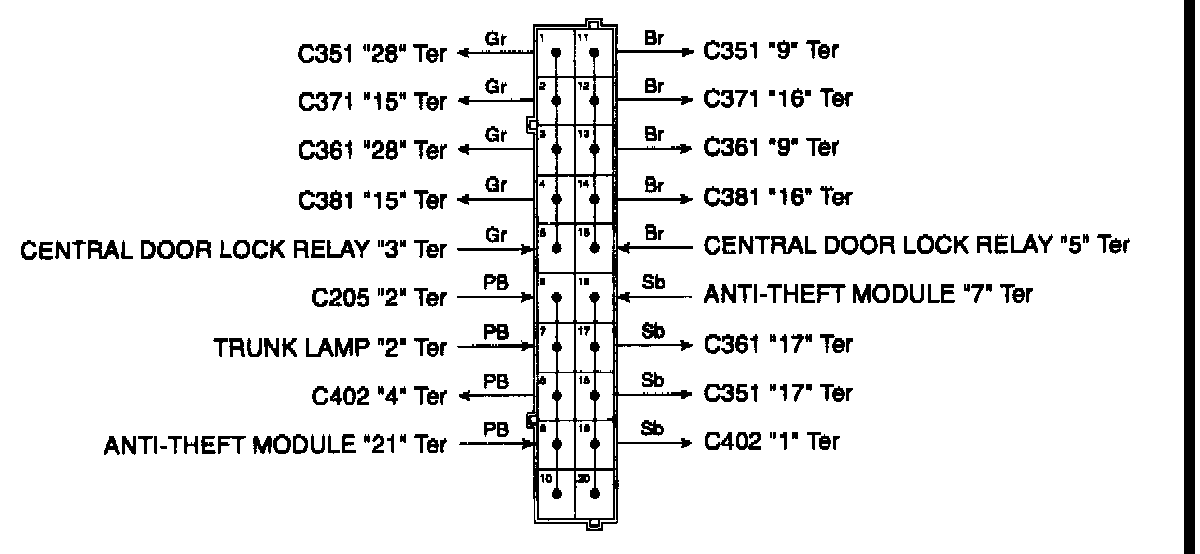

Splice Pack S305 (White):

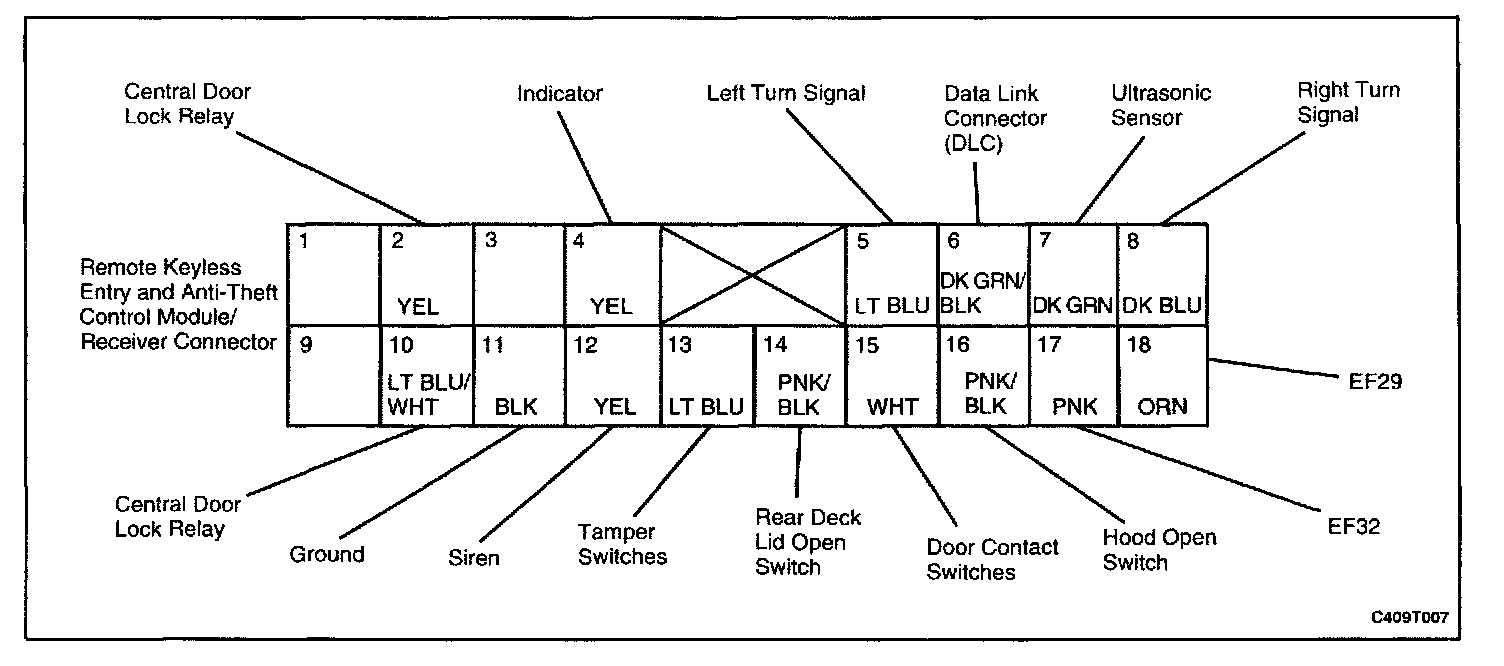

Module/Receiver Connector:

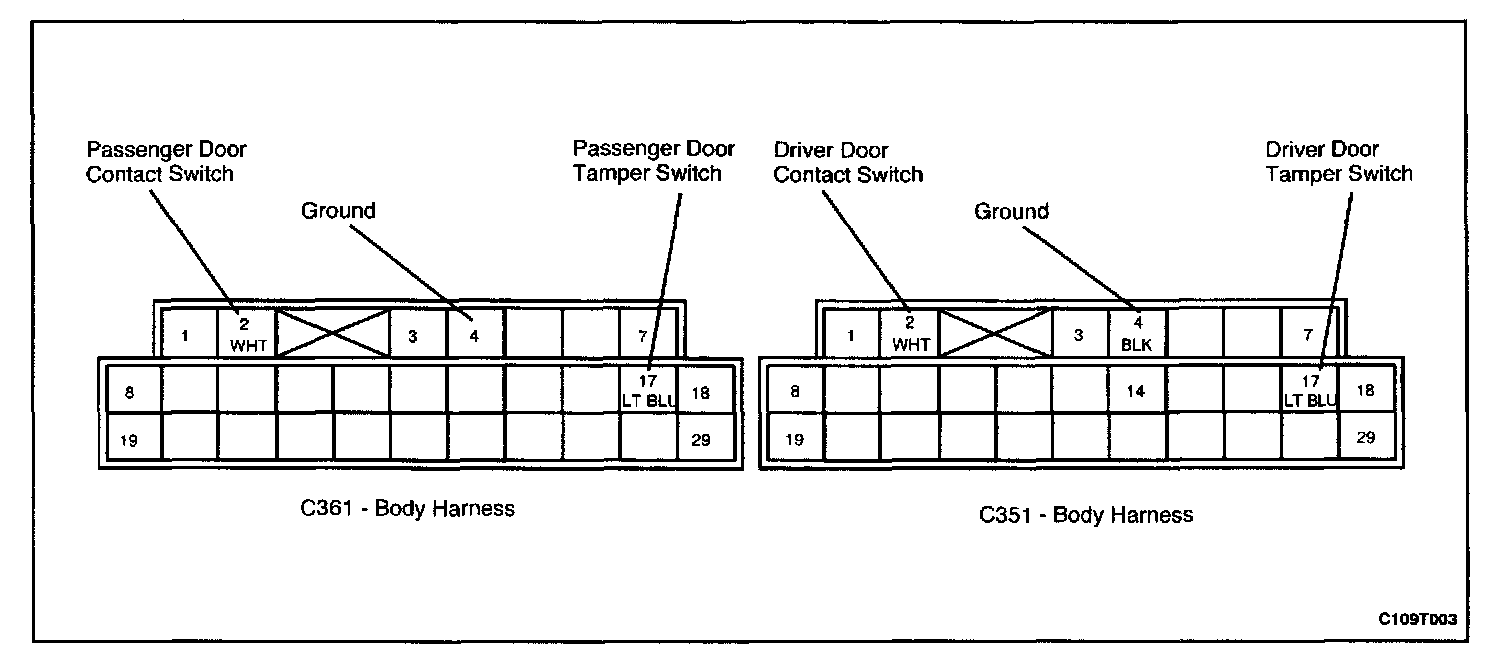

Wiring Harness Connectors:
