Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
Shift Interlock, A/T

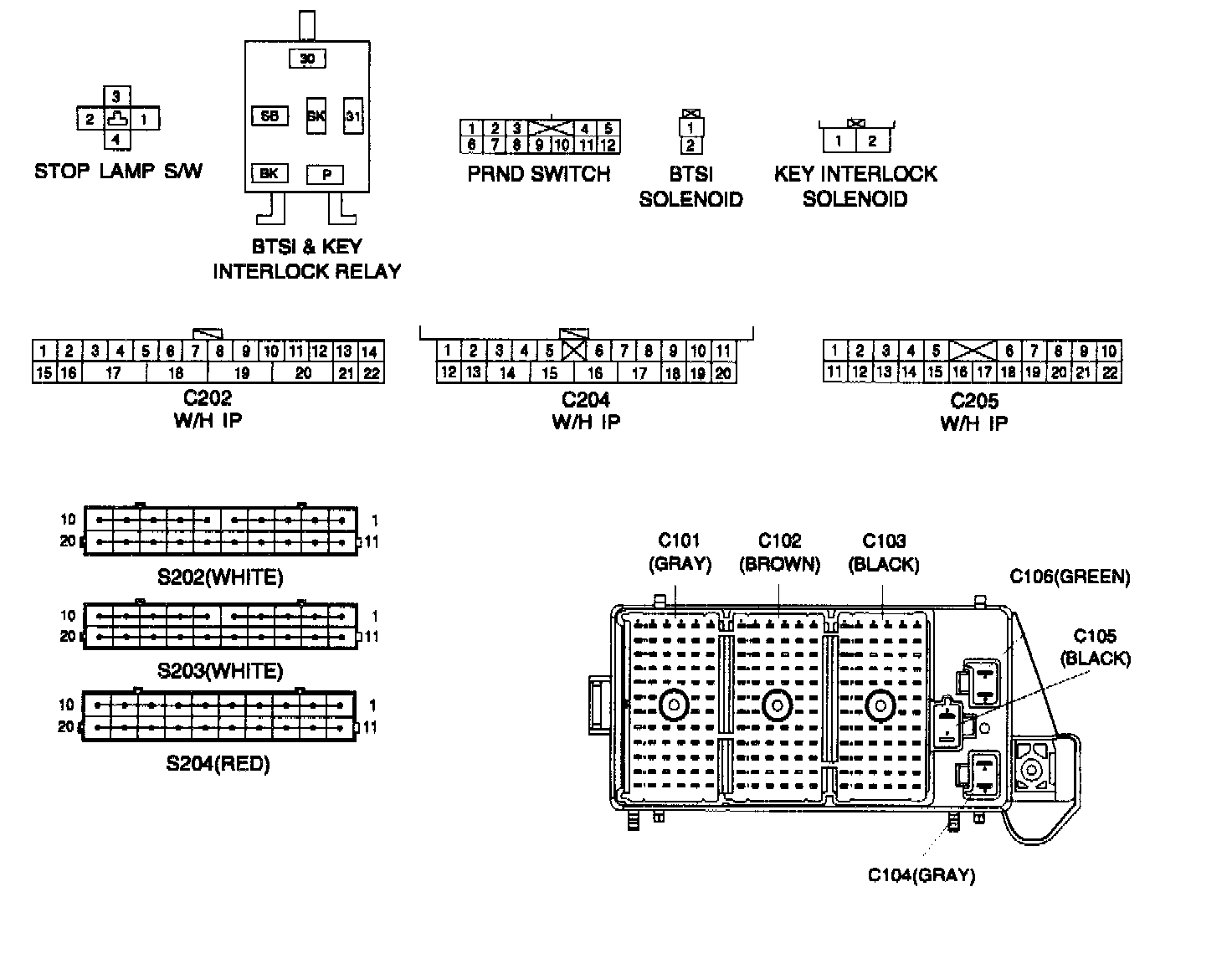

Connector Identification Symbol And PIN Number Position:

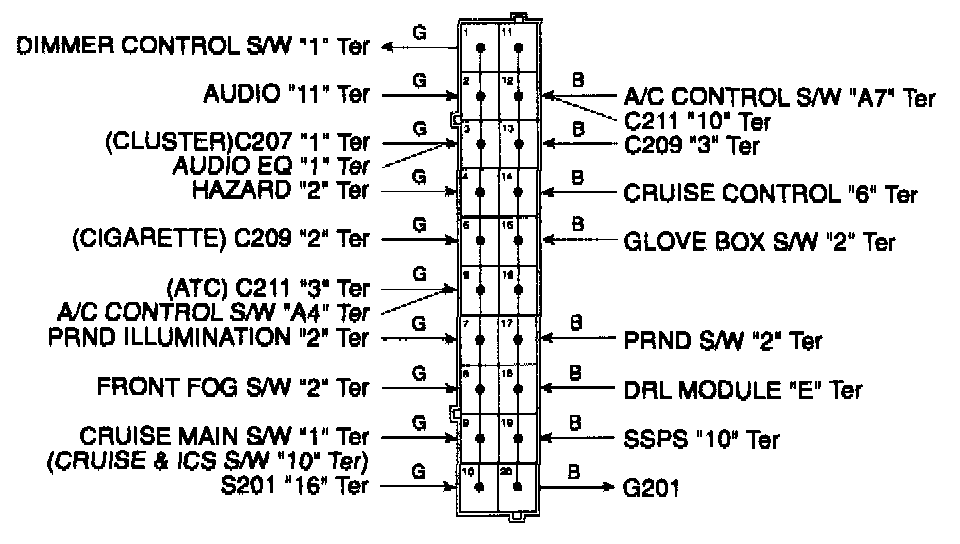

Splice Pack S202 (White):
Splice Pack S203 (White):
Splice Pack S204 (Red):
