Fog/Driving Lamp
>>
Front Fog Lamp (W/ DRL) Circuit
Front Fog Lamp (W/ DRL) Circuit

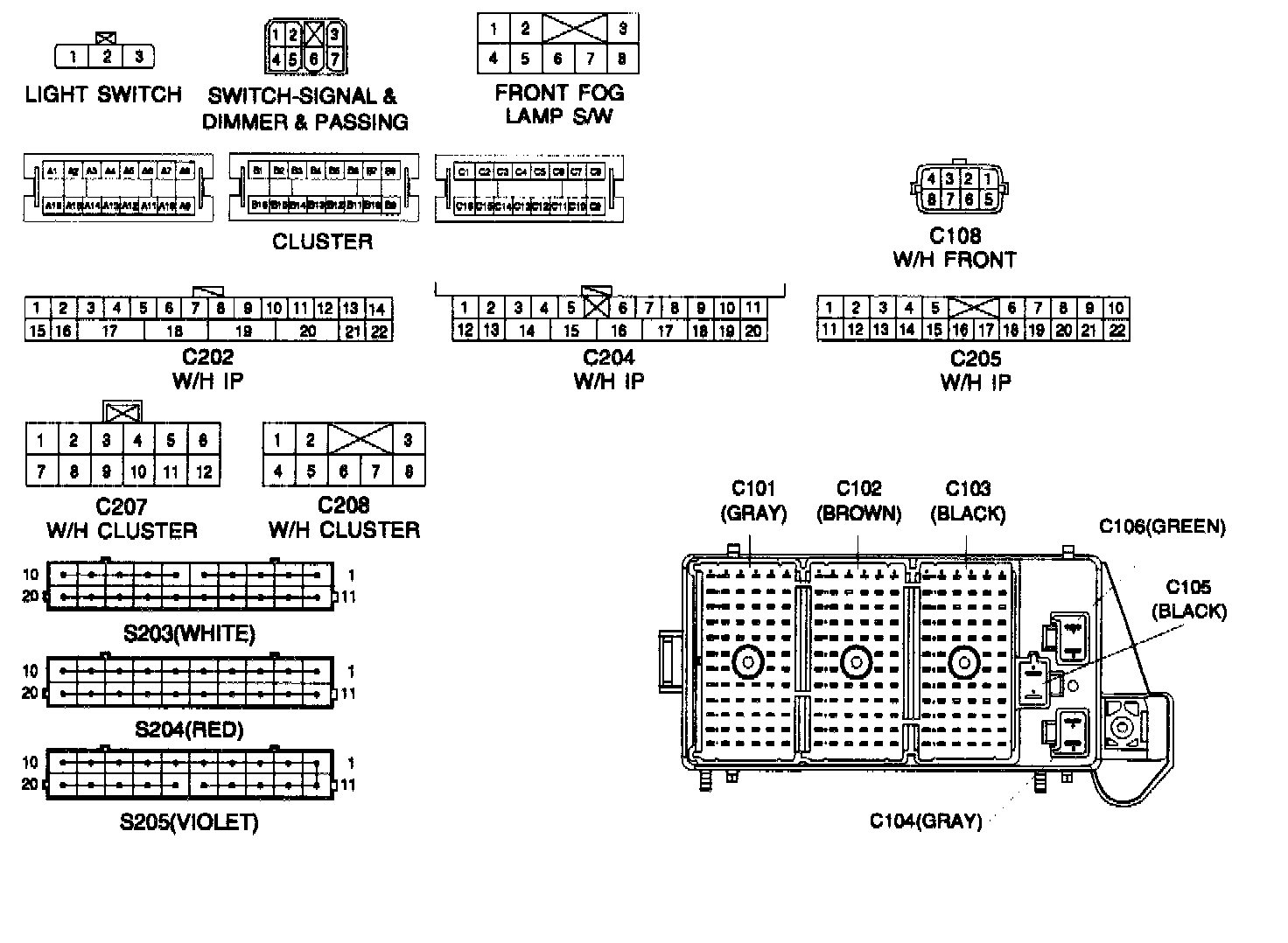

Connector Identification & PIN Number Position:

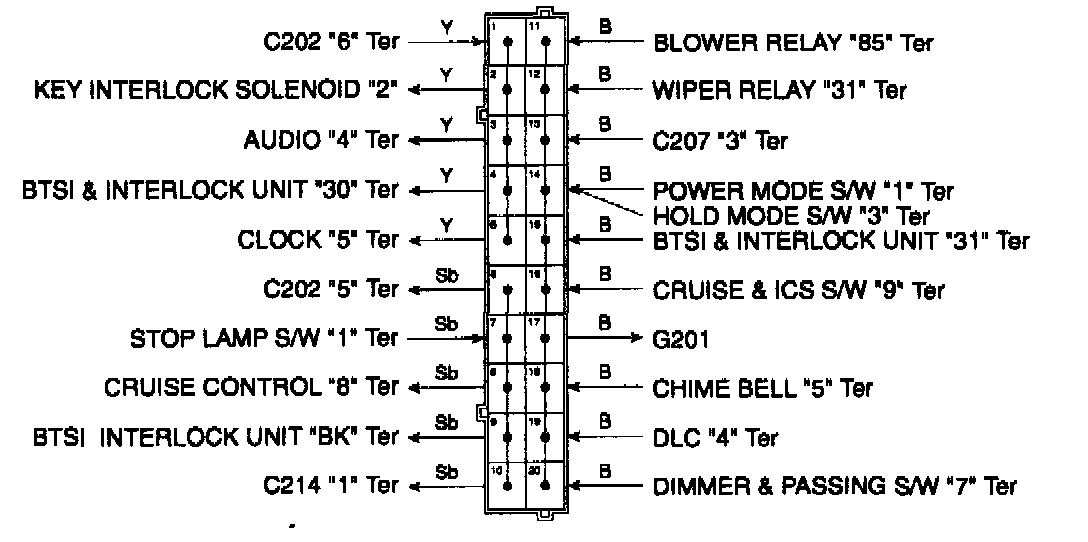

Splice Pack S203 (White):

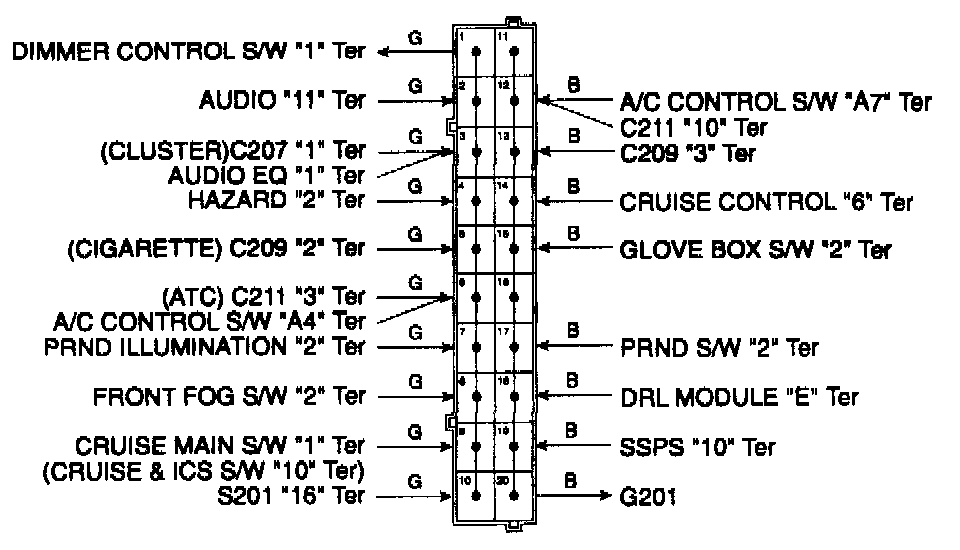

Splice Pack S204 (Red):

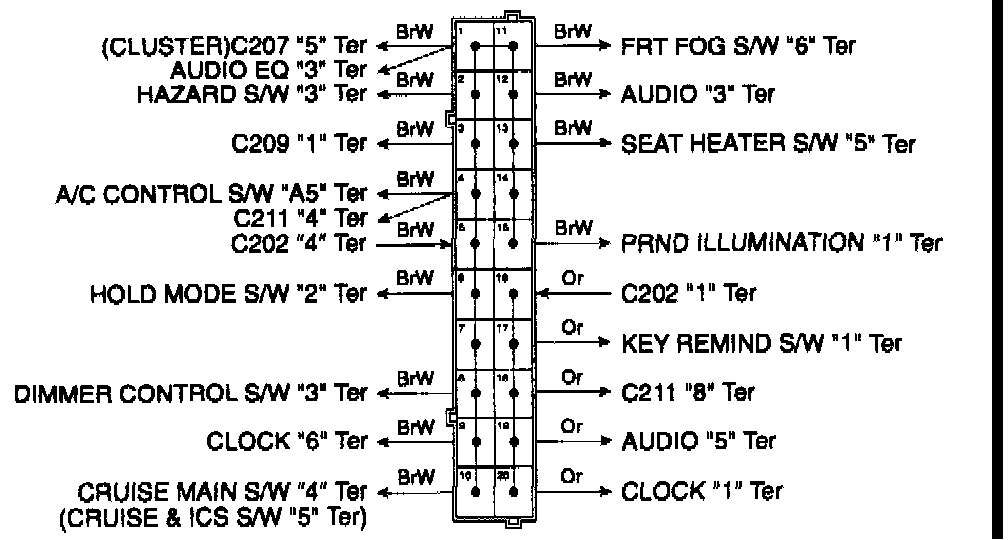

Splice Pack S205 (Violet):
