Fuel Delivery and Air Induction

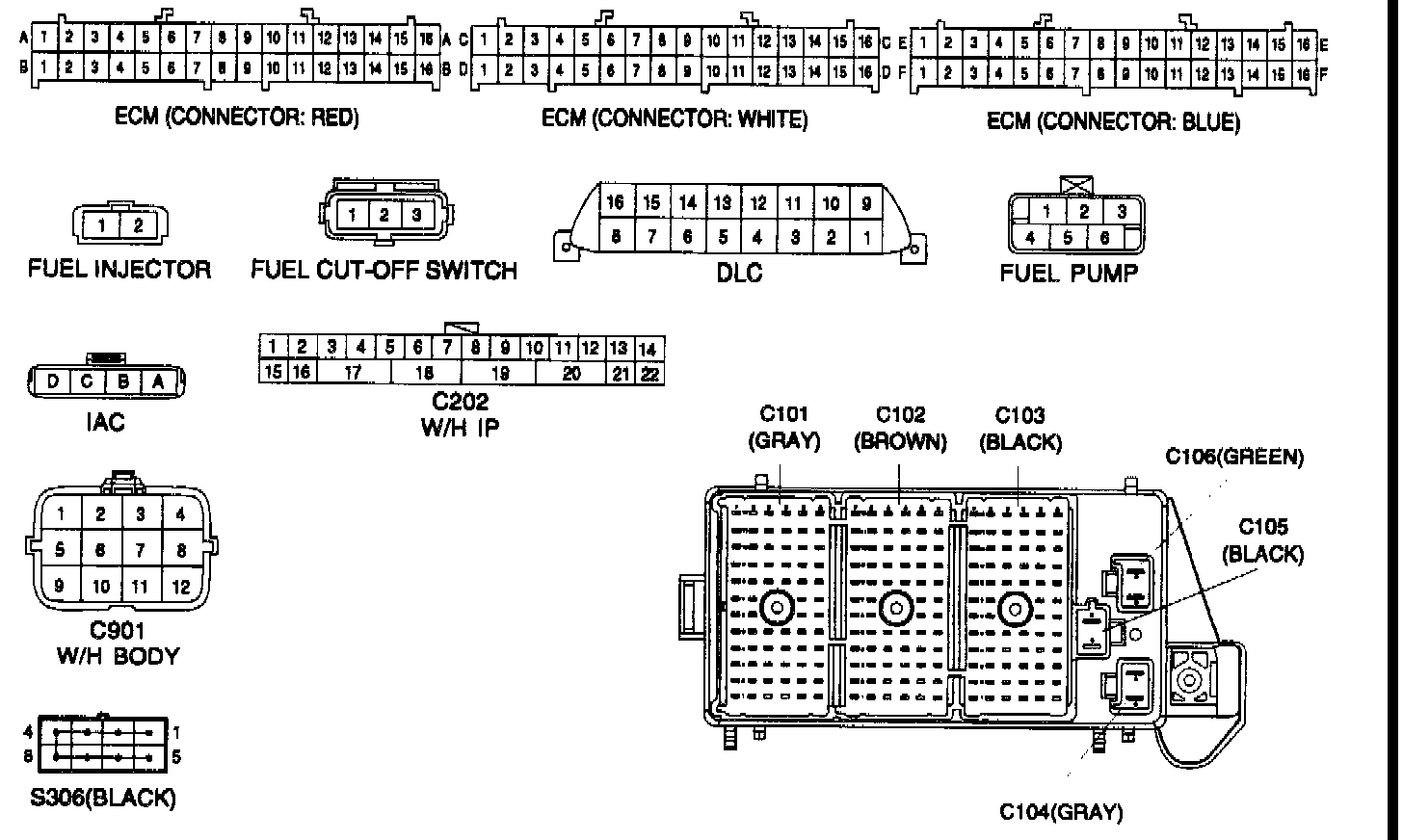

Connector Identification Symbol & PIN Number Position:

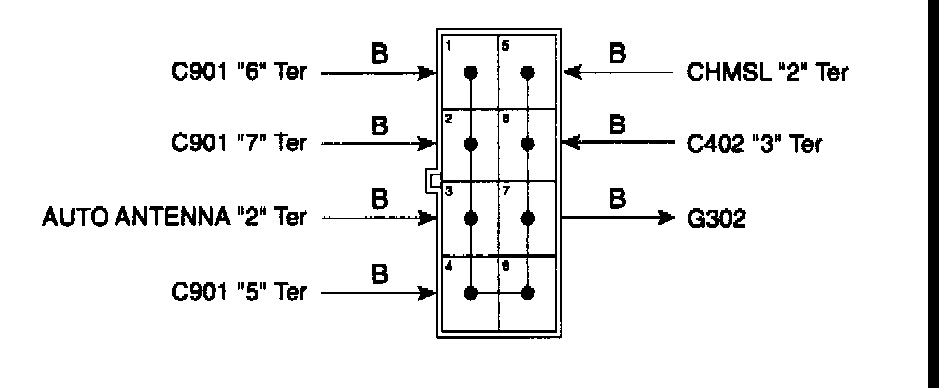

Splice Pack S306 (Black):
