Wiper and Washer Systems
Wiper and Washer Systems

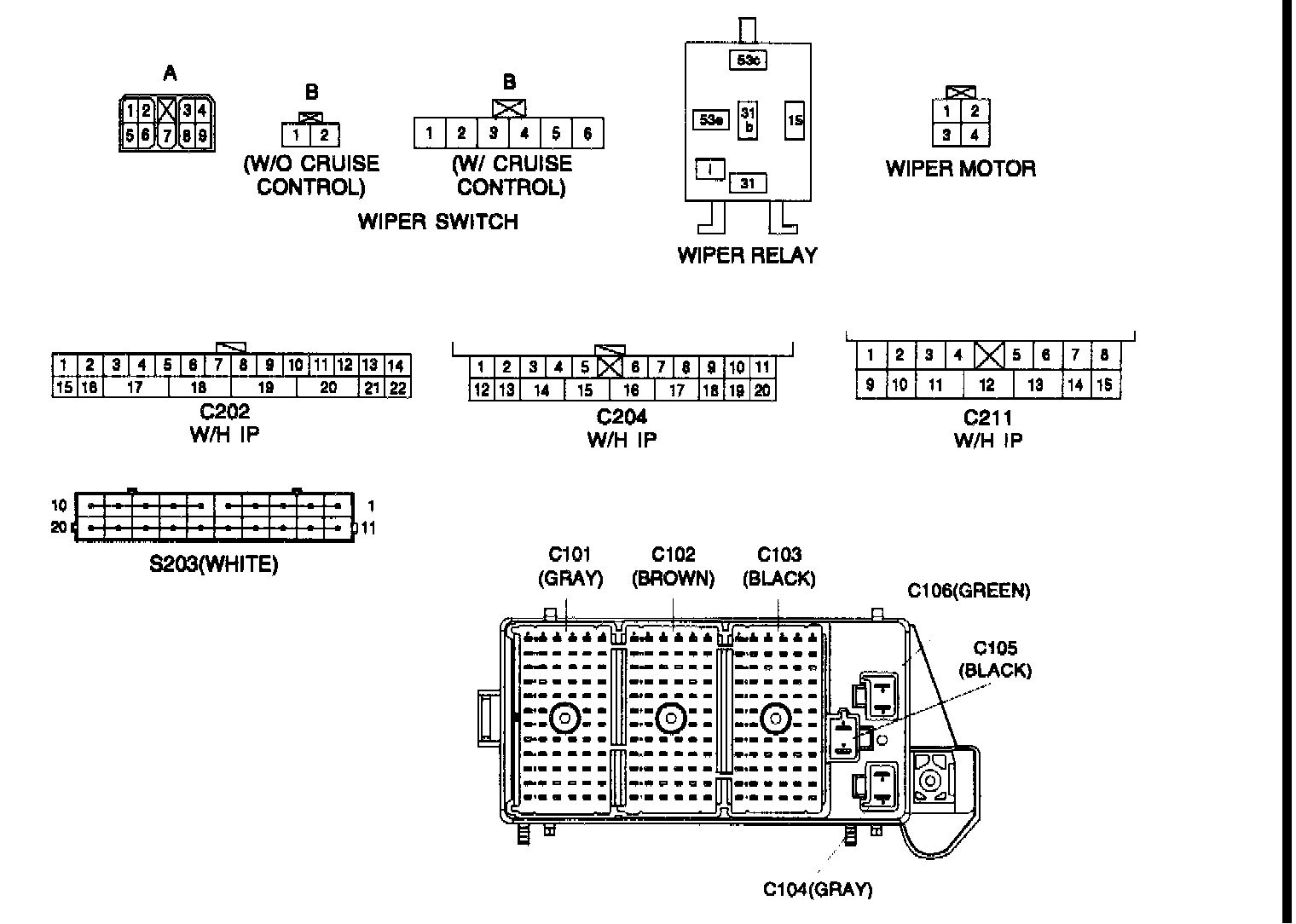

Connector Identification Symbol & PIN Number Position:

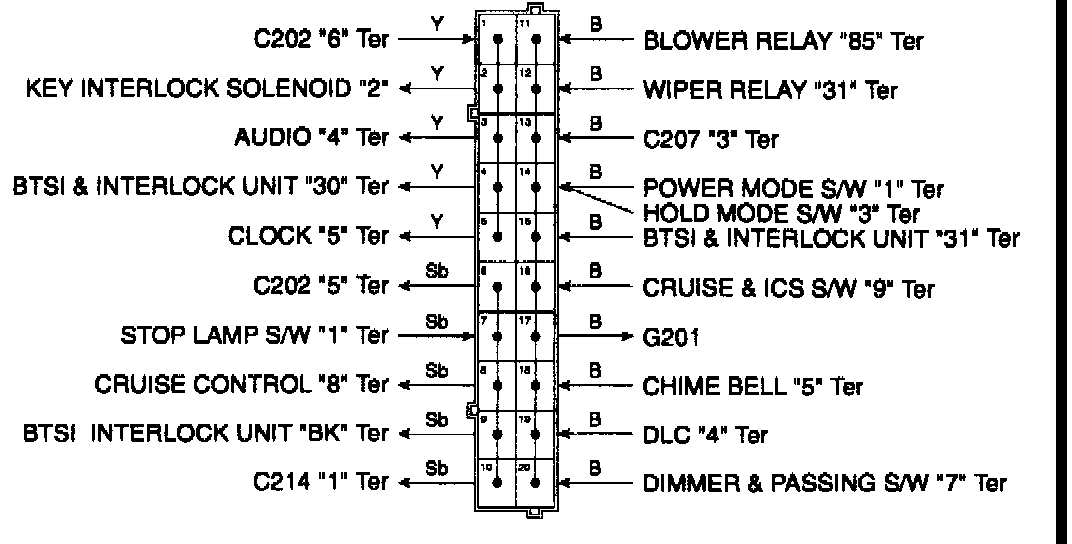

Splice Pack S203 (White):
