Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Schematics
Schematics

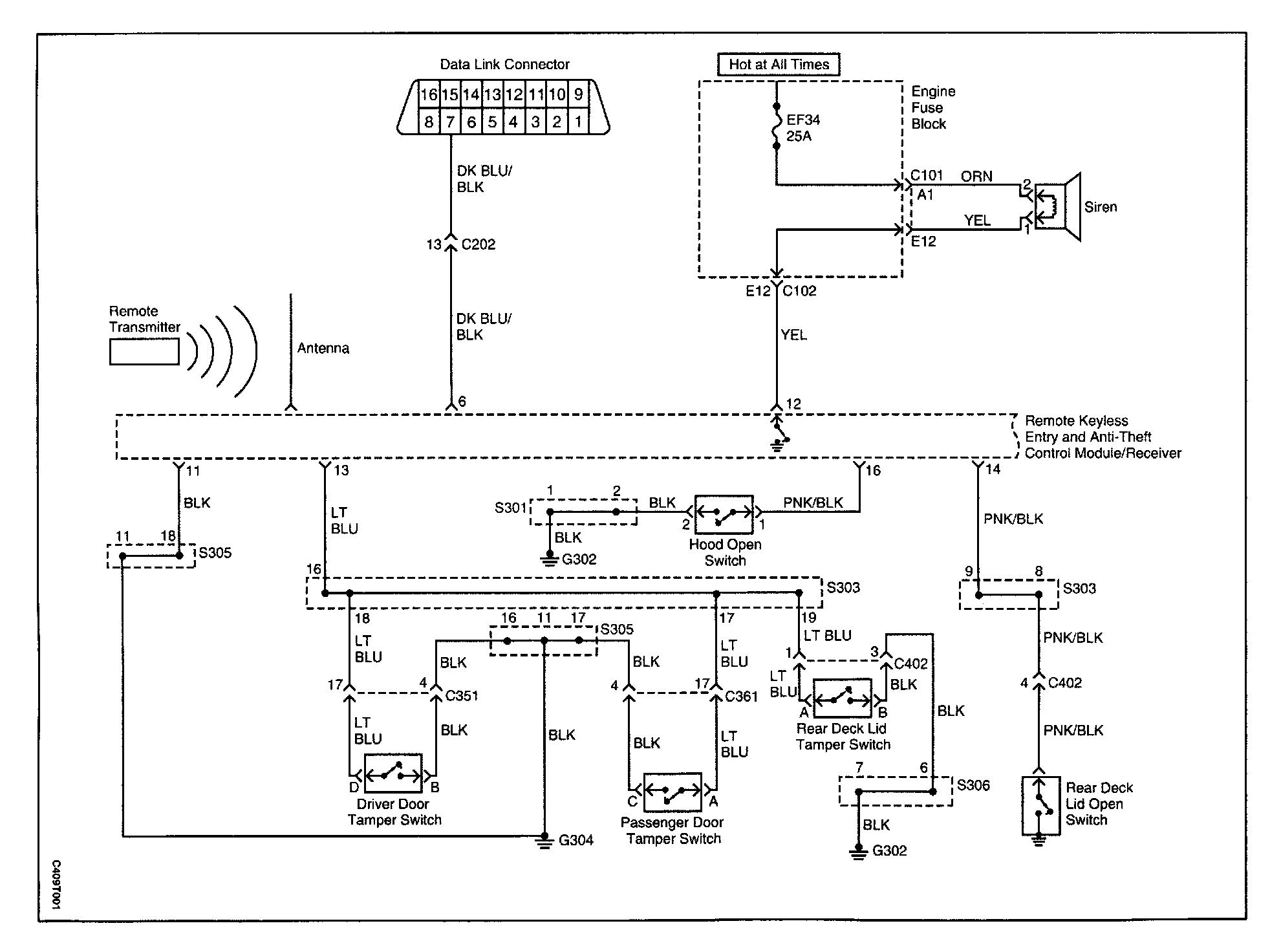

Remote Keyless Entry And Anti-Theft System (1 Of 2):
Remote Keyless Entry And Anti-Theft System (2 Of 2):
