Home >> Daewoo >> 2000 >> Leganza SE L4-2.2L DOHC D-TEC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Front Door Handle Switch

Front Door Handle Switch

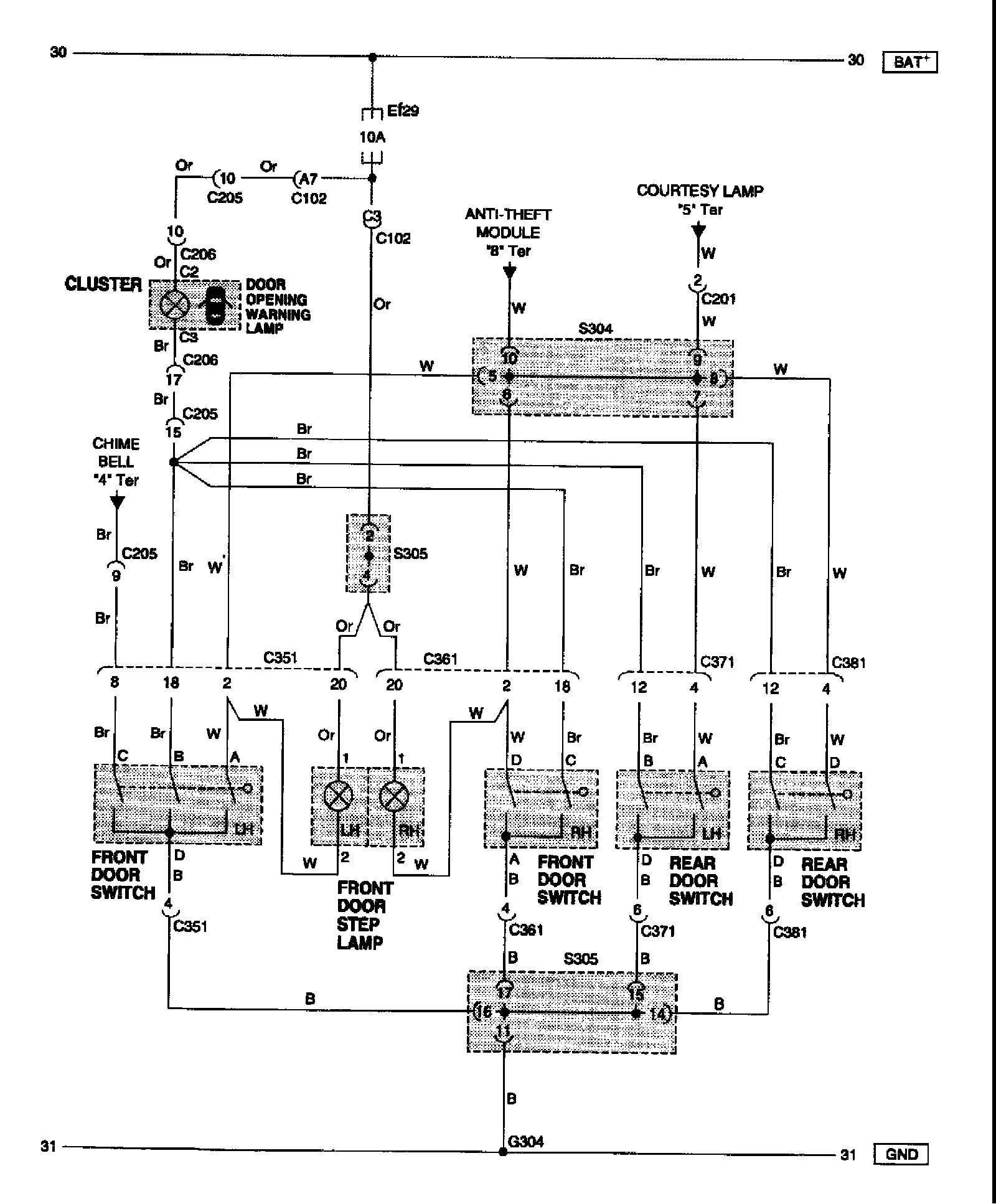

Wiring Diagram:
