Leganza SE L4-2.2L DOHC D-TEC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
System Diagram

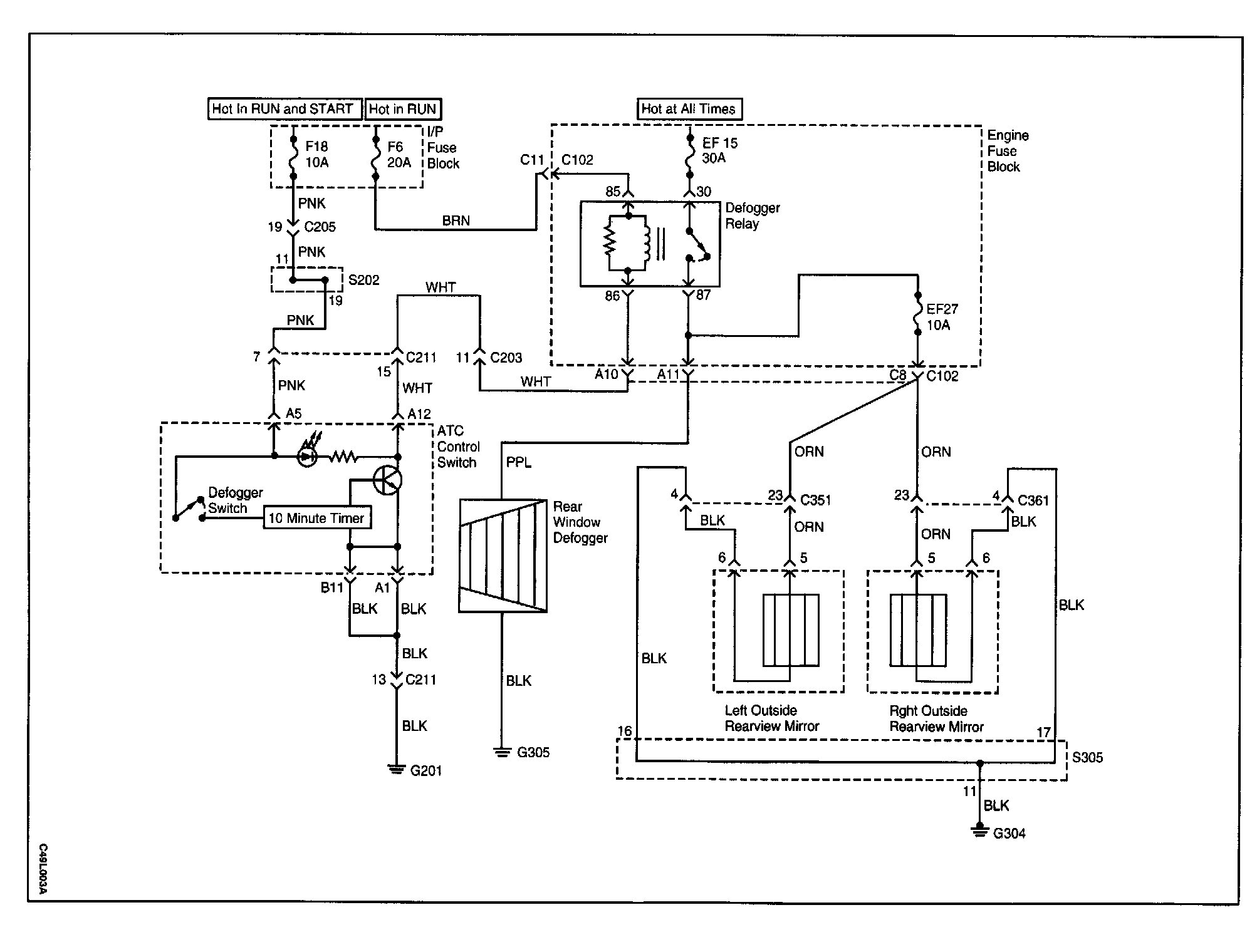

Defogger System (With Manual HVAC):
Defogger System (With Automatic Temperature Control):
